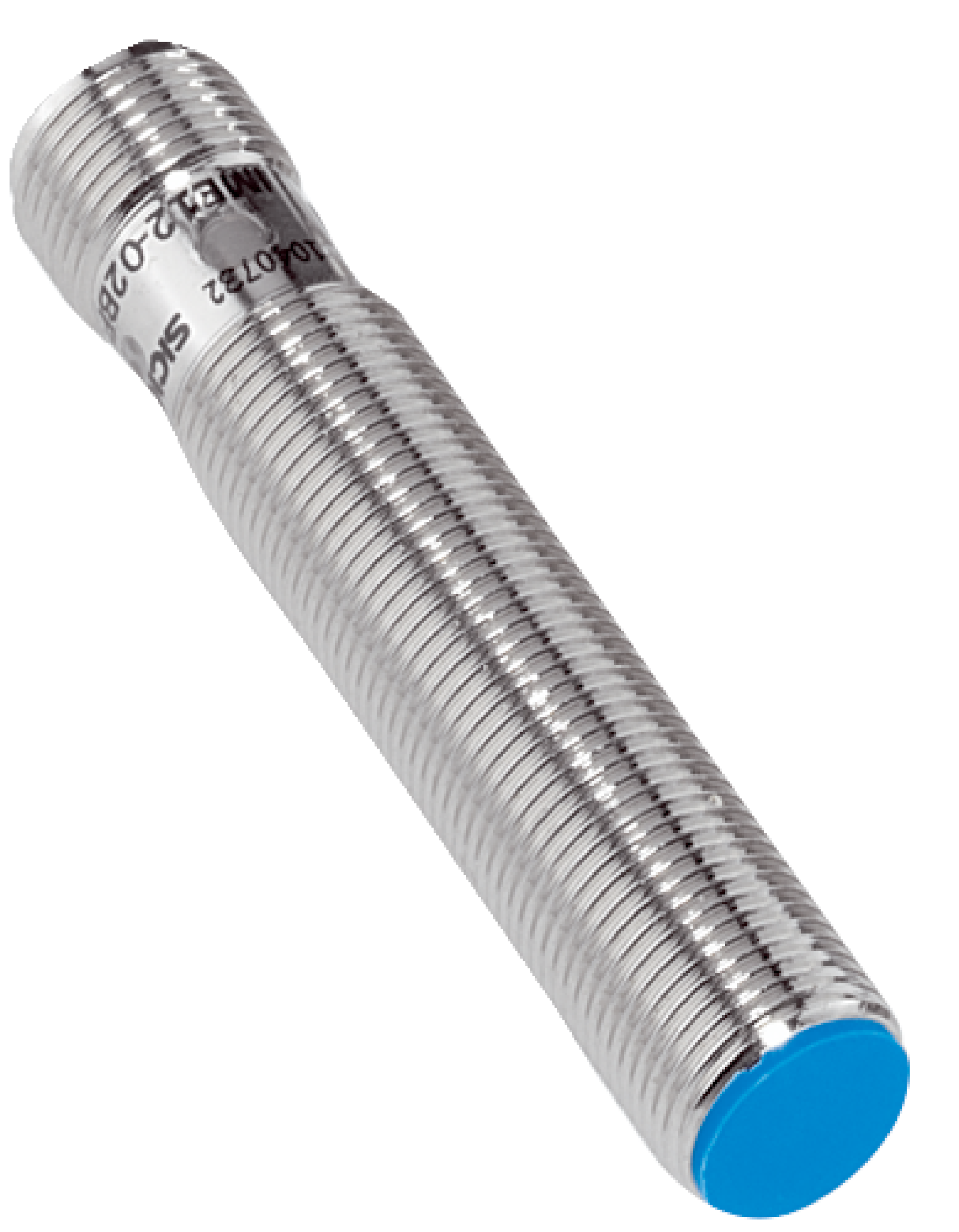

Inductive Proximity Sensor M12 | 2mm Sensing Range | IP67 Rated | 2000Hz Switching Frequency | by SICK
Inductive Proximity Sensor M12 with a sensing range of 2 mm and an IP67 rated enclosure is perfect for industrial automation and metal detection applications. Designed for reliable performance, it features a high switching frequency of 2,000 Hz and operates within a wide supply voltage range of 10 V DC to 30 V DC, making it ideal for various manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Proximity Sensor, SICK Proximity Sensor, M12 Inductive Sensor
Technical Specifications
- Housing: Brass, nickel-plated
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 2,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -30 °C to +75 °C
- Sensing face material: Plastic, PA 66
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard M12 x 1 threaded housing with 12 mm diameter
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type with IP67 rated enclosure for dust and water protection
- High switching frequency of 2,000 Hz with PNP normally open output
- Wide supply voltage range from 10 V DC to 30 V DC
- Extended operating temperature from -30 °C to +75 °C
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
- Includes mounting nuts, brass nickel-plated
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

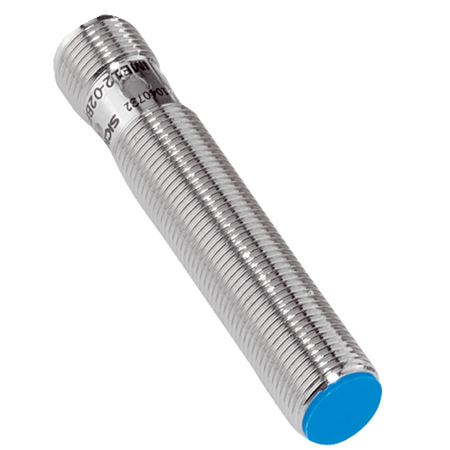

The SICK IME12-02BPSZC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
