Inductive Proximity Sensor M12 | 2mm Sensing Range | IP67 Rated | NPN Output | by SICK
Inductive proximity sensor M12 designed for reliable object detection with a sensing range of 2 mm and a safe sensing range of 1.62 mm. Ideal for industrial automation and control systems, this sensor features a high switching frequency of 2,000 Hz and an IP67 rated enclosure for dust and water protection, ensuring durability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | 2mm Sensing Range | IP67 Rated | NPN Output | by SICK
Brand: SICK
SKU: 1040743
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Proximity Sensor, SICK Proximity Switch, NPN Inductive Sensor
Technical Specifications
- Housing: Standard design, brass nickel-plated
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 2,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, normally closed
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 65 mm
- Thread length: 48 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design with M12 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- High switching frequency of 2,000 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

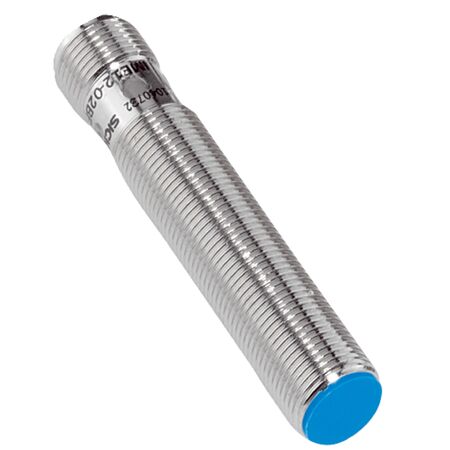

The SICK IME12-02BNOZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and control applications requiring reliable metal object detection.
