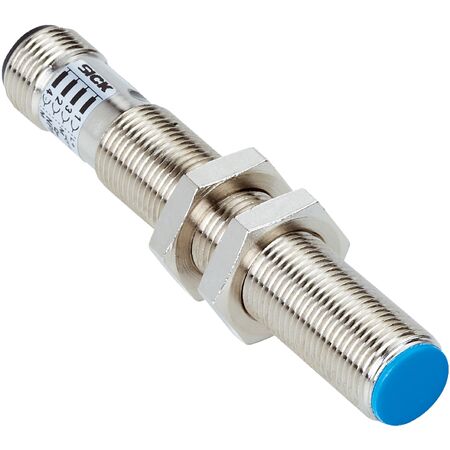

Inductive Proximity Sensor M12 | 2mm Sensing Range | IP67 Rated | Normally Closed Output | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a 2mm sensing range and IP67 rating for dust and water protection. With a robust brass housing and a normally closed output function, it's perfect for machine safety and control systems, ensuring high performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 20 V AC to 250 V AC
- Voltage drop: ≤ 8.5 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 10%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2 and EN 55011 class B
- Continuous current Ia: ≤ 250 mA (≤ 200 mA depending on voltage)
- Off-state current: ≤ 3 mA (AC 250 V), ≤ 1.5 mA (AC 120 V)
- Minimum load current: ≥ 8 mA
- Short-time withstand current: 0.9 A
- Cable material: PUR/PVC, conductor size 0.5 mm²
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +80 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PBT
- Housing length: 71 mm
- Thread length: 50 mm
- Max tightening torque: ≤ 7 Nm
- Protection class: I
- Dimensions (H x L x W): 12mm x 71mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design with M12 x 1 thread size
- Flush installation type
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Switching frequency of 25 Hz
- Cable connection, 2-wire, 2 m length
- Normally closed (NC) output function
- Electrical wiring: AC 2-wire
- Enclosure rating IP67 for dust and water protection
- Mounting nut included, brass nickel-plated
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +80 °C
- Housing made of brass, nickel-plated with plastic PBT sensing face
- Protection class I
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and safety standards to ensure proper sensor function and compliance.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IM12-02BAO-ZU0 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
