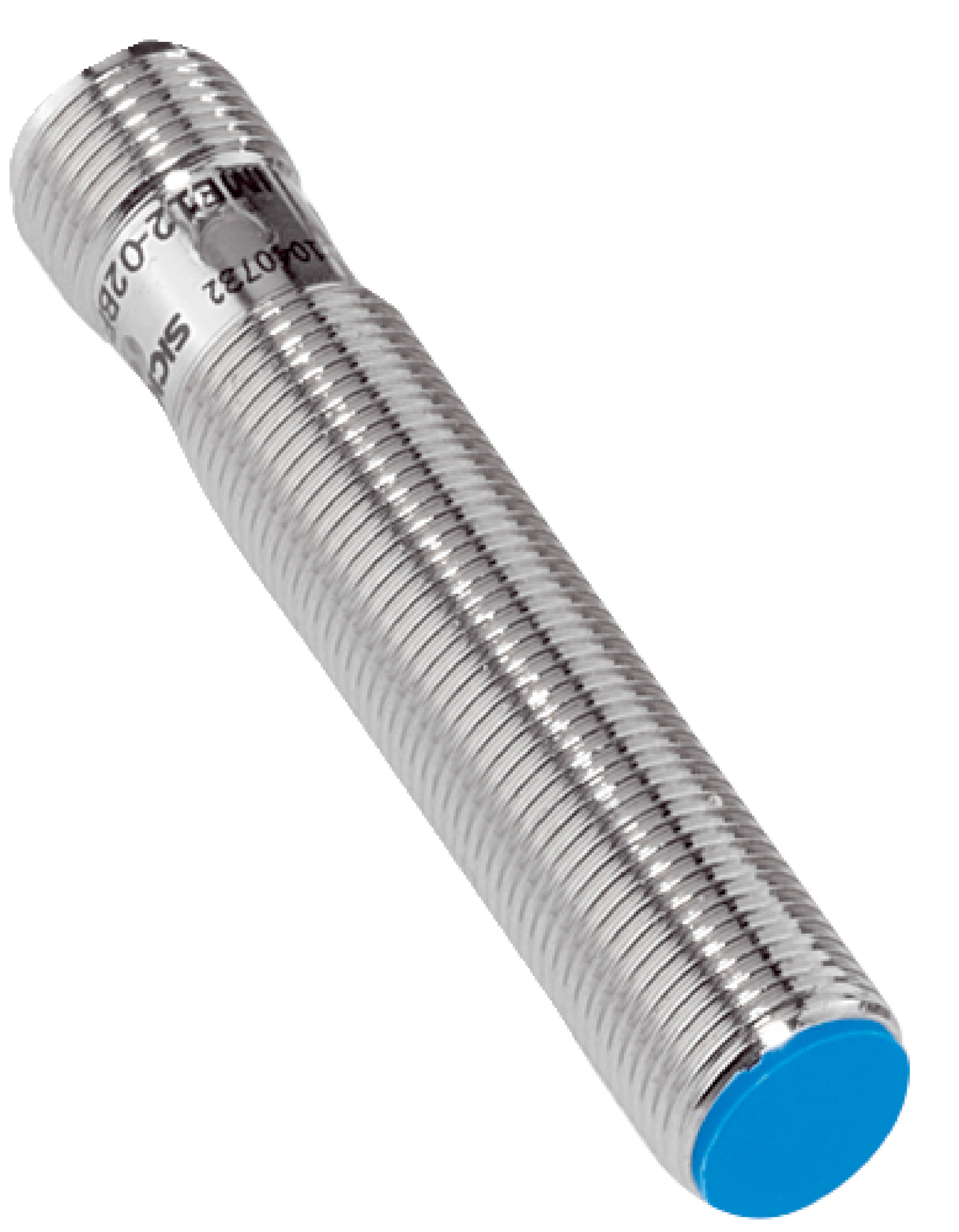

Inductive Proximity Sensor M12 | 2mm Sensing Range | IP67 Rated | PNP Output | by SICK
The Inductive Proximity Sensor M12 is designed for precise object detection with a 2mm sensing range, making it ideal for industrial automation and metal detection applications. With an IP67 rating for dust and water protection, this sensor operates efficiently in harsh environments, ensuring reliability and durability for manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | 2mm Sensing Range | IP67 Rated | PNP Output | by SICK
Brand: SICK
SKU: 1040732
Alternatively Known As: M12 Inductive Proximity Sensor, IME12 Proximity Sensor, SICK Proximity Sensor M12, Inductive Sensor 2mm Range
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 48 mm
- Tightening torque max: ≤ 12 Nm
- Switching output: PNP, normally open
- Connection type: Male M12, 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -30 °C to +75 °C
- Switching frequency: 2,000 Hz
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 12 mm diameter
- Flush installation type
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Switching frequency up to 2,000 Hz
- PNP switching output with normally open function
- Connection via male M12 4-pin connector
- Electrical wiring: DC 3-wire
- Enclosure rating IP67 for dust and water protection
- Extended operating temperature range from -30 °C to +75 °C
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
- Mounting nuts supplied (brass, nickel-plated)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting, wiring, and compliance with safety regulations.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring reliable proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing extends product life reducing waste
- Energy-efficient operation with low current consumption
- High reliability reduces downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

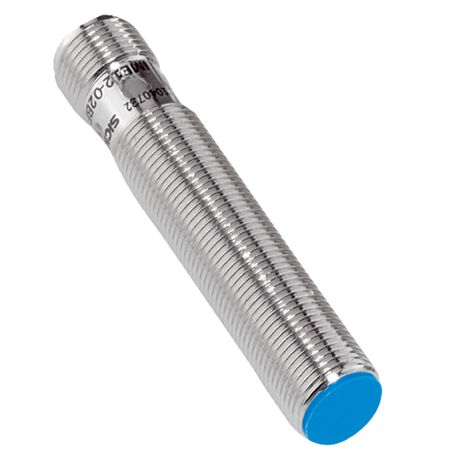

The SICK IME12-02BPSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
