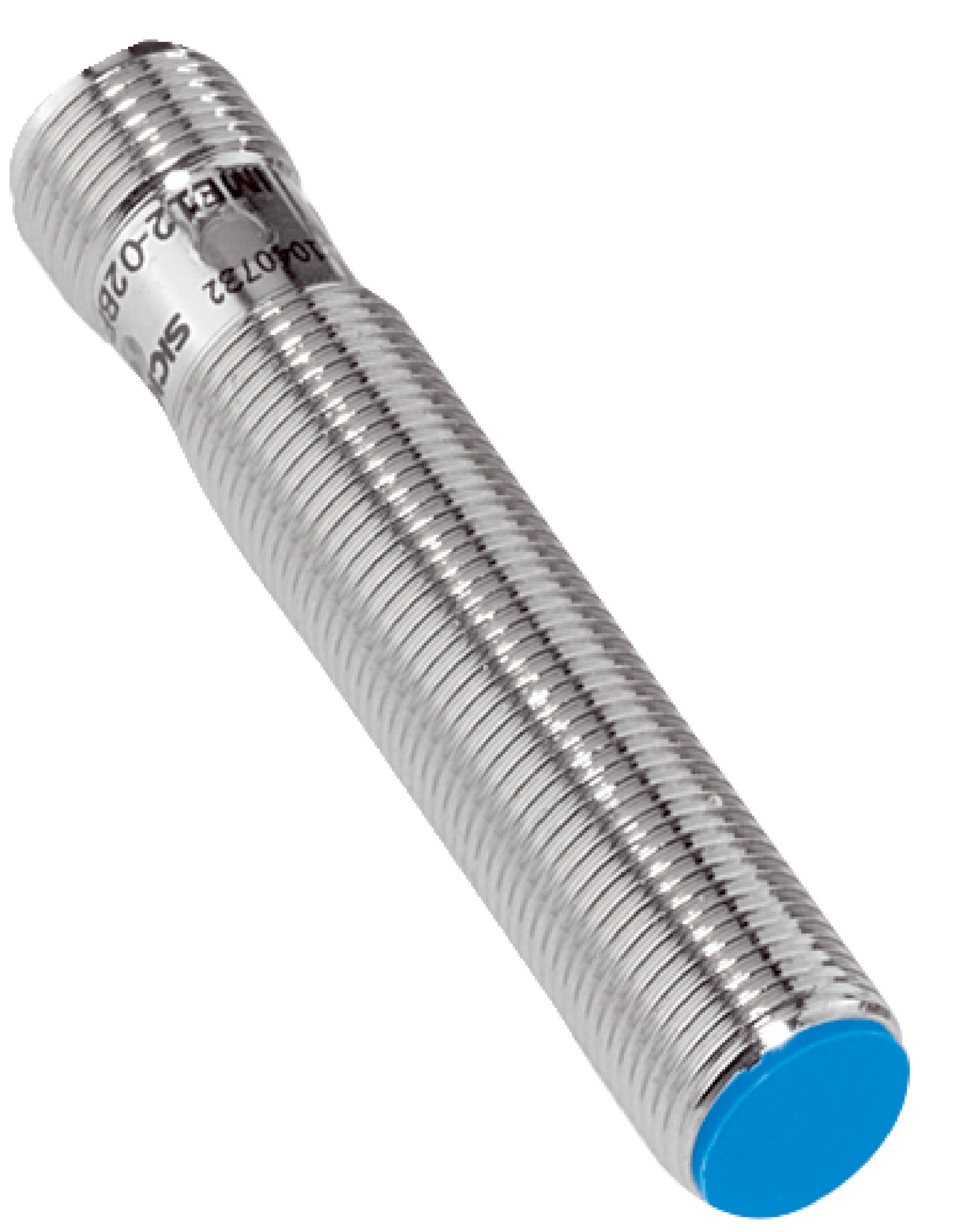

Inductive Proximity Sensor M12 | 3.2mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor M12 is designed for precise object detection with a sensing range of 3.2mm, making it ideal for industrial automation and metal detection applications. Built with a durable brass housing and IP67 rating, it ensures reliable performance in harsh environments, while the PNP switching output and robust construction provide enhanced safety and efficiency in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | 3.2mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1056197
Alternatively Known As: M12 Inductive Proximity Sensor, IME12 Proximity Sensor, SICK Proximity Sensor M12, Inductive Sensor 3.2mm Range
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, NC function
- Connection type: Male connector M12, 4-pin
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 12 Nm
- EMC compliant according to EN 60947-5-2
- Operating temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 12 mm diameter
- Sensing range of 3.2 mm with safe sensing range of 2.59 mm
- Flush installation type
- Switching frequency up to 2,000 Hz
- PNP switching output with NC output function
- DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Includes mounting nuts (2x), brass, nickel-plated
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-3B2POZC0SS28 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
