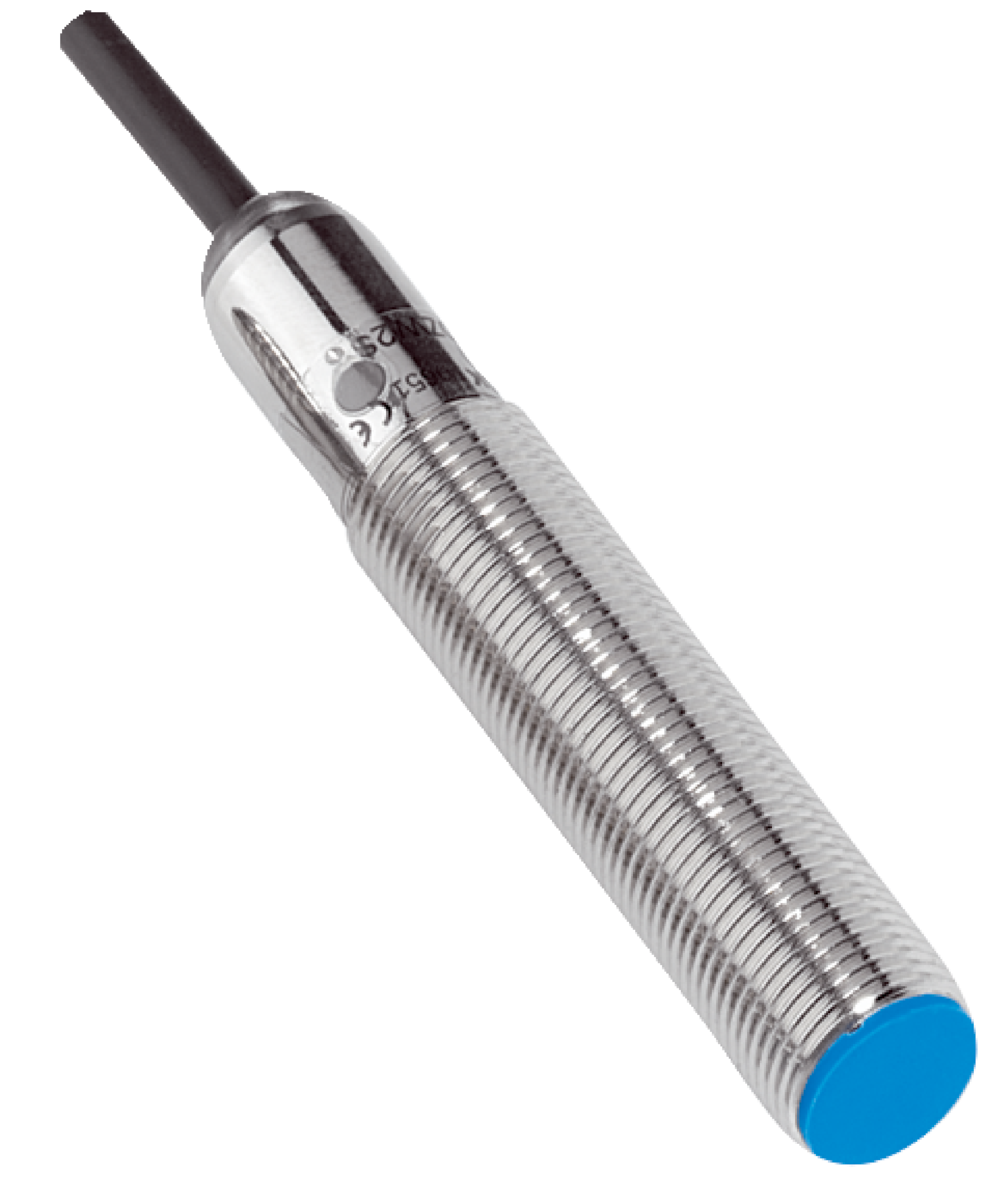

Inductive Proximity Sensor M12 | 4mm Sensing Range | IP67 Rated | High Switching Frequency | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a 4mm sensing range and a high switching frequency of 2,000 Hz. With an IP67 enclosure rating for dust and water protection, this sensor is perfect for manufacturing process control and safety monitoring systems, ensuring durability and efficiency in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Proximity Sensor, SICK Proximity Sensor 4mm, M12 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Power-up pulse: ≤ 5 ms
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 48 mm
- Tightening torque max: ≤ 12 Nm
- Switching frequency: 2,000 Hz
- Output function: Normally Closed (NC)
- Electrical wiring: DC 2-wire
- Enclosure rating: IP67
- Dimensions (H x L x W): 12mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- High switching frequency of 2,000 Hz
- Cable connection, 2-wire, 2 m, oil-resistant
- Output function: Normally Closed (NC)
- Electrical wiring: DC 2-wire
- Enclosure rating IP67 for dust and water protection
- Mounting nut included (brass, nickel-plated)
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic PA 66 sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Safety and monitoring systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Oil-resistant cable extends product life in harsh environments
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

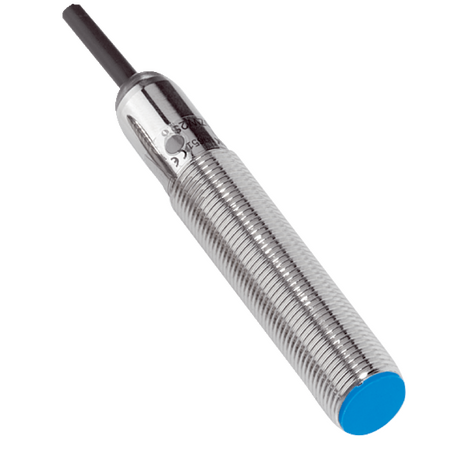

The SICK IME12-04BDOZY2S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
