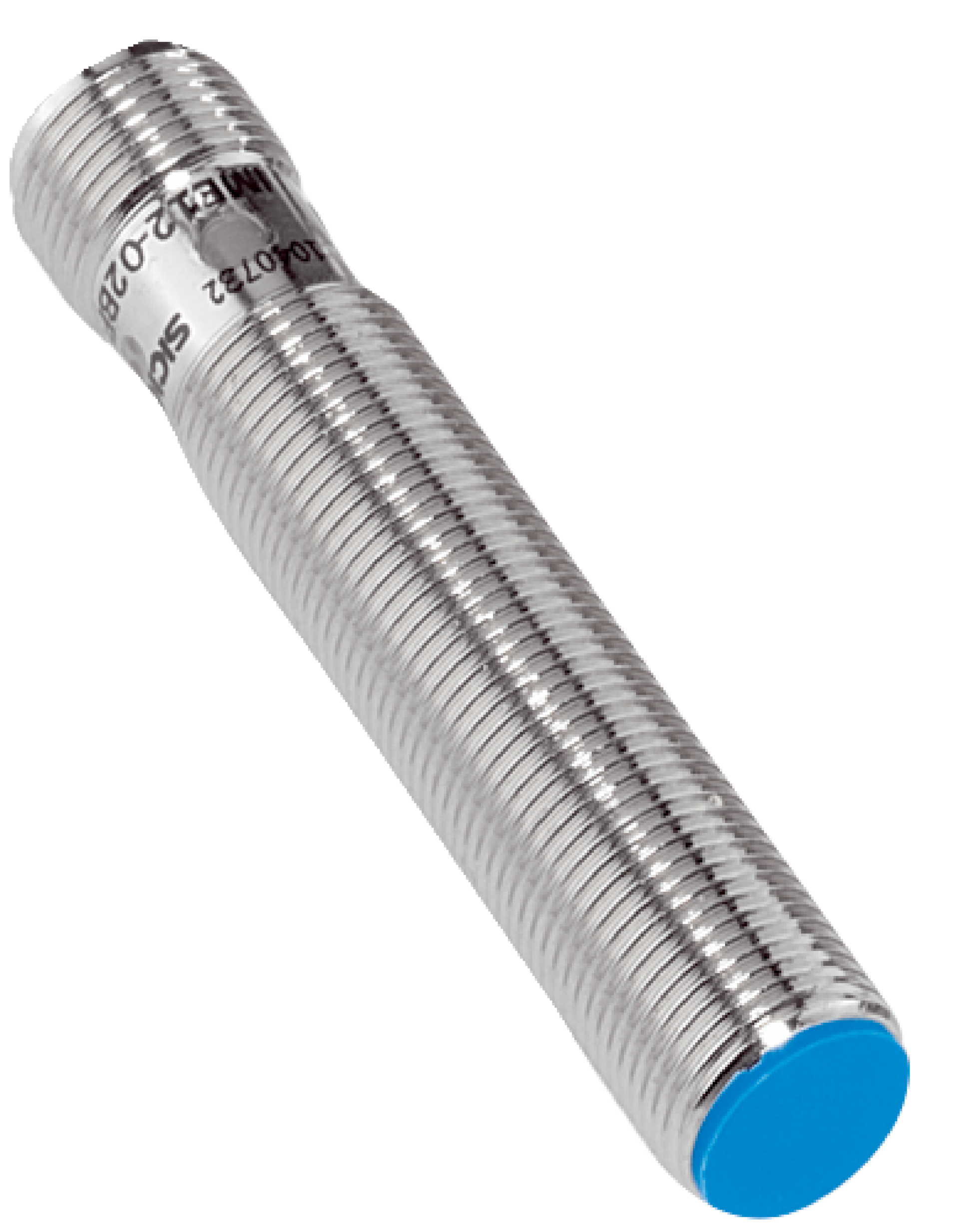

Inductive Proximity Sensor M12 | 4mm Sensing Range | IP67 Rated | PNP Output | by SICK
Inductive Proximity Sensor M12 with a 4mm sensing range and IP67 enclosure rating is perfect for industrial automation and metal detection applications. Designed for reliable object detection, this sensor features a PNP complementary output and operates at a switching frequency of up to 2,000 Hz, ensuring high performance in manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Proximity Sensor, SICK Proximity Sensor 4mm, M12 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP complementary
- Electrical wiring: DC 4-wire
- Switching frequency: 2,000 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M12 x 1
- Housing length: 65 mm
- Thread length: 48 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type with IP67 enclosure rating
- Switching frequency up to 2,000 Hz with PNP complementary output
- Male connector M12, 4-pin connection type
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic PA 66 sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

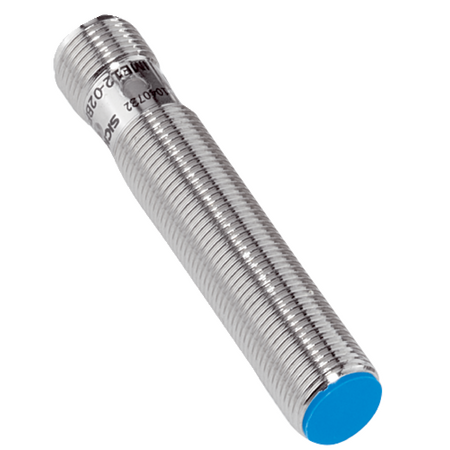

The SICK IME12-04BPPZC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
