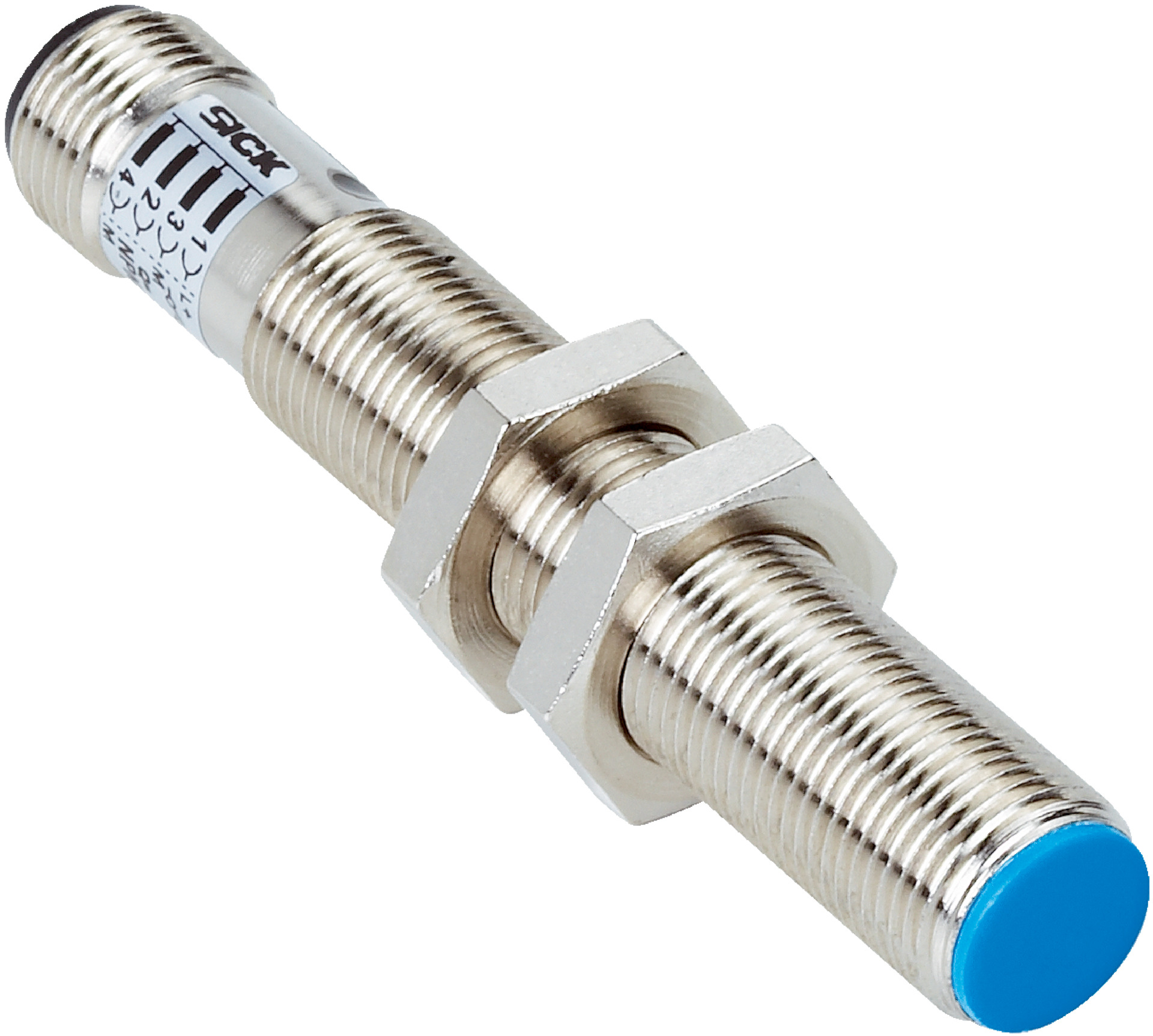

Inductive Proximity Sensor M12 | 4mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation. With a 4mm sensing range and IP67 enclosure rating, it excels in harsh environments, ensuring durability and performance. Ideal for machine safety and control systems, this sensor features a normally closed output function and operates efficiently across a wide temperature range from -25 °C to +80 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 20 V AC to 250 V AC
- Voltage drop: ≤ 8.5 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 10%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 250 mA (≤ 200 mA depending on voltage)
- Off-state current: ≤ 3 mA (AC 250 V), ≤ 1.5 mA (AC 120 V)
- Minimum load current: ≥ 8 mA
- Short-time withstand current: 0.9 A
- Cable material: PUR/PVC, conductor size 0.5 mm²
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Housing length: 71 mm, Thread length: 46 mm
- Tightening torque max: ≤ 7 Nm
- Protection class: I
- EMC compliant according to EN 60947-5-2 and EN 55011 class B
- Dimensions (H x L x W): 12mm x 71mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 4 mm sensing range
- Non-flush installation type
- Switching frequency of 25 Hz
- Cable connection, 2-wire, 2 m length
- Normally closed (NC) output function
- Electrical wiring: AC 2-wire
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +80 °C
- Protection class I
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and safety standards to ensure proper sensor function and compliance.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing lines
- Non-contact detection in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

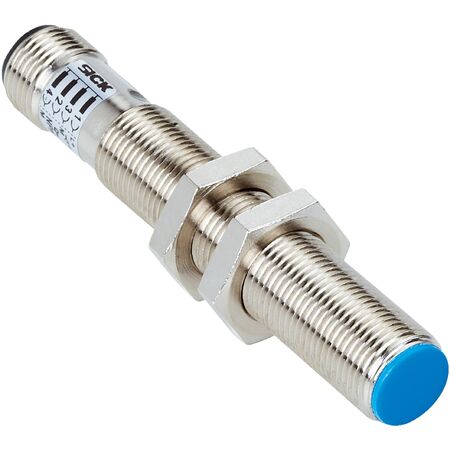

The SICK IM12-04NAO-ZU0 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
