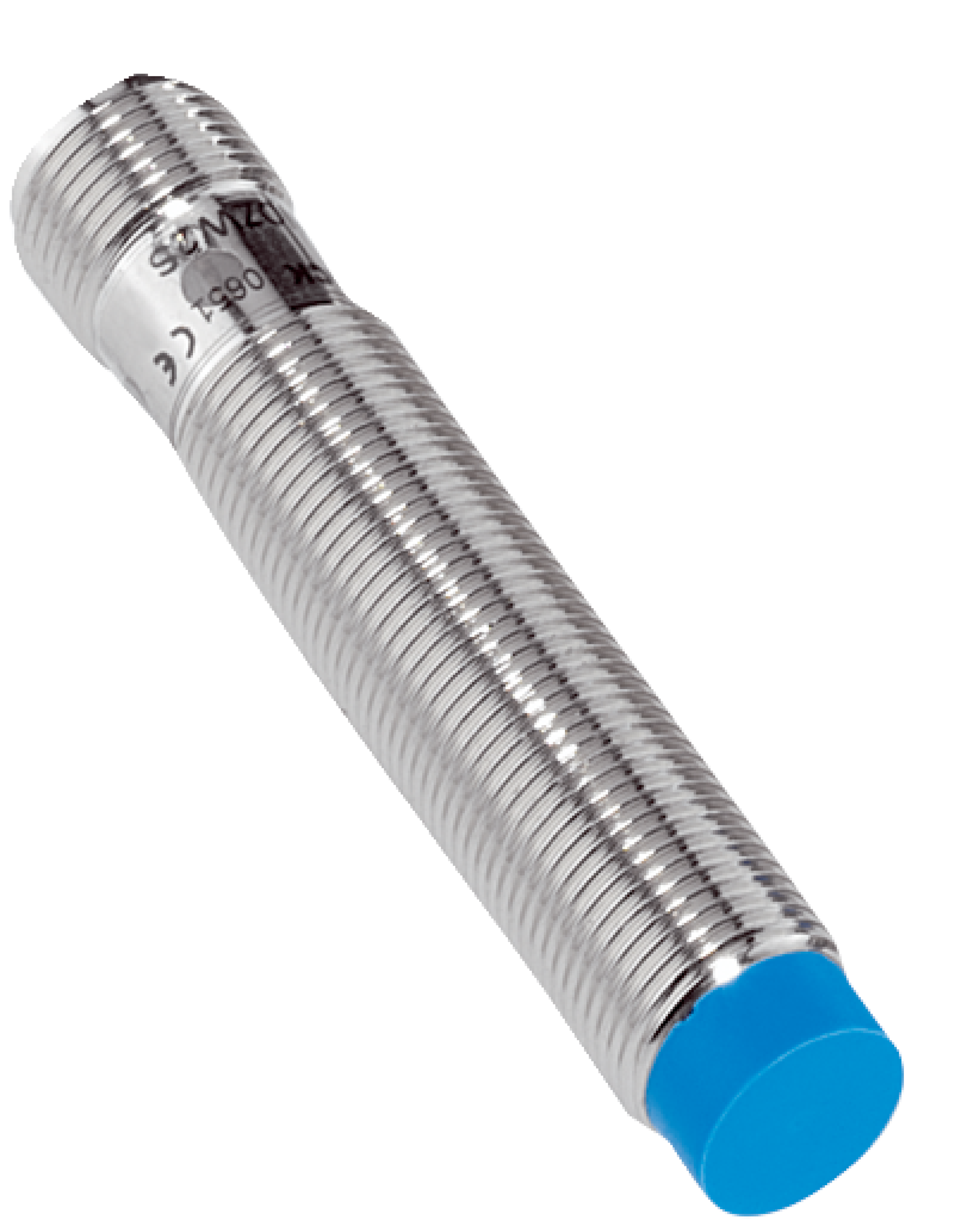

Inductive Proximity Sensor M12 | 4mm Sensing Range | NPN Output | IP67 Rated | by SICK
Inductive Proximity Sensor M12 with a 4mm sensing range and NPN normally open output is perfect for industrial automation and manufacturing process control. Designed for reliable object detection, this sensor features an IP67 rated enclosure for dust and water protection, ensuring durability in harsh environments. With a switching frequency of up to 2,000 Hz, it’s ideal for conveyor systems and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Proximity Sensor, SICK Proximity Sensor 4mm, NPN Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN, normally open (NO)
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Thread size: M12 x 1
- Switching frequency: 2,000 Hz
- Dimensions (H x L x W): 65mm x 12mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Non-flush installation type
- Switching frequency up to 2,000 Hz
- NPN normally open (NO) switching output
- DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection
- Operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and industrial safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Conveyor systems
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

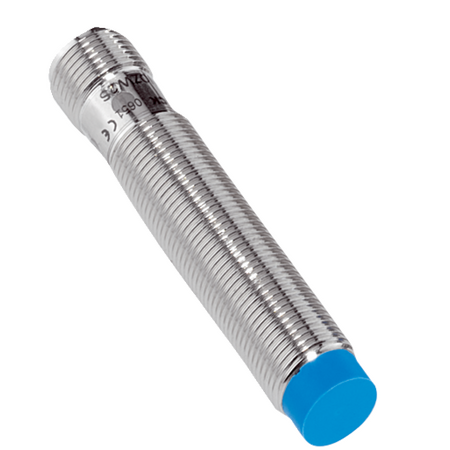

The SICK IME12-04NNSZC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
