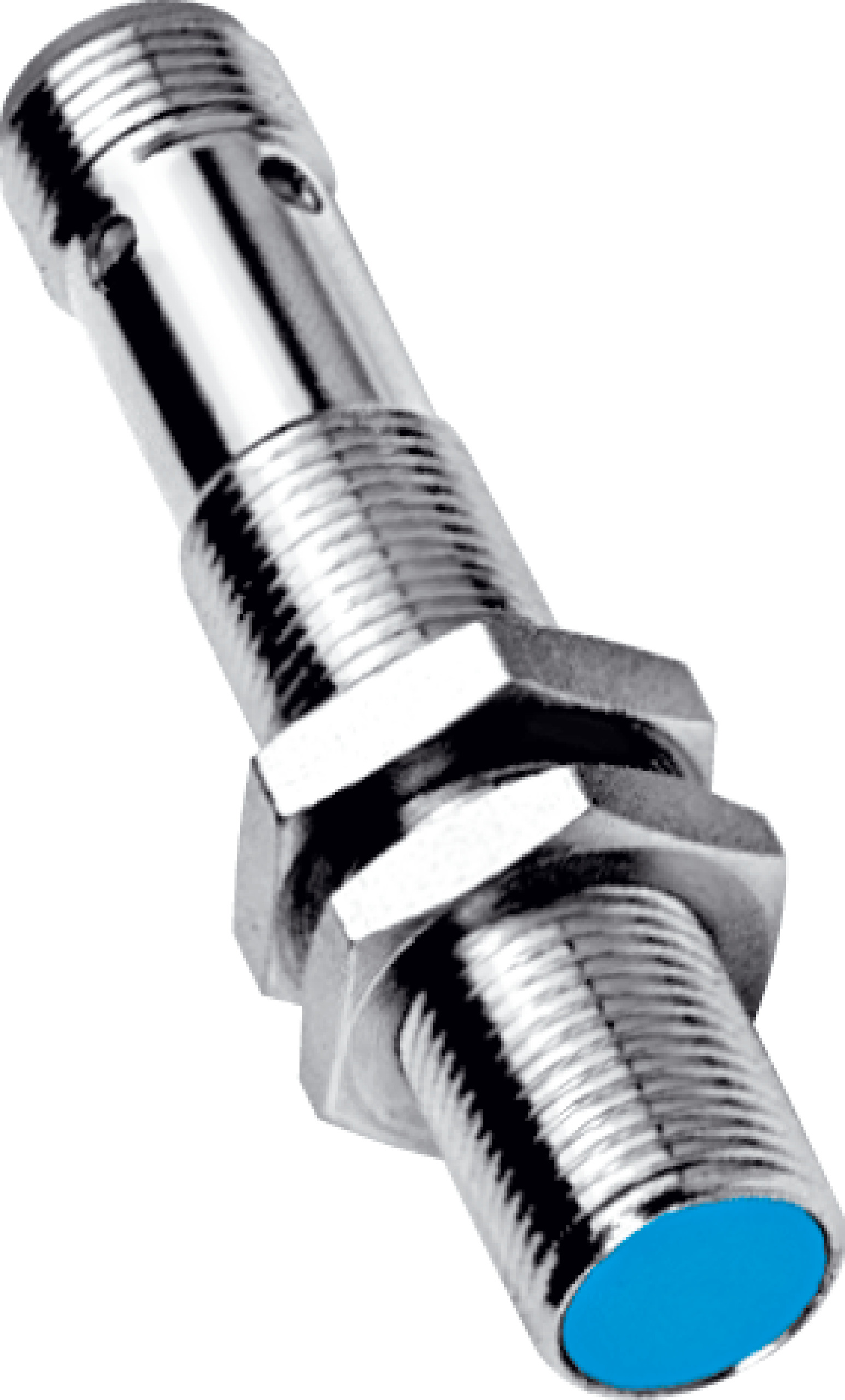

Inductive Proximity Sensor M12 | 5mm to 60mm Sensing Range | 5000Hz Switching Frequency | IP67 Rated | by SICK
The Inductive Proximity Sensor M12 is designed for precise object detection with a sensing range of 5mm to 60mm and a high switching frequency of 5000Hz. Ideal for industrial automation and safety applications, this sensor features a robust IP67 rated metal housing for dust and water protection, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | 5mm to 60mm Sensing Range | 5000Hz Switching Frequency | IP67 Rated | by SICK
Brand: SICK
SKU: 1042365
Alternatively Known As: Inductive Proximity Sensor M12, SICK Proximity Sensor, M12 Inductive Sensor, Industrial Proximity Switch
Technical Specifications
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 5 mm to 60 mm
- Safe sensing range Sa: 48.6 mm
- Magnetic sensitivity: 1 mT
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 3 m
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Magnetic alignment: Axial
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 1.5 V
- Current consumption: 10 mA
- Time delay before availability: ≤ 2 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 300 mA
- Cable material: PUR/PVC
- Wire-break, reverse polarity, short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Metal, nickel-plated brass
- Housing length: 50 mm
- Thread length: 40 mm
- Tightening torque max: 7 Nm
- Dimensions (H x L x W): 50mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard housing with M12 x 1 thread size
- Sensing range from 5 mm to 60 mm
- High switching frequency of 5,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Robust metal housing made of nickel-plated brass
- Cable connection with 3-wire, 3 m length
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wire-break, reverse polarity, short-circuit, and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring reliable proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable metal housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

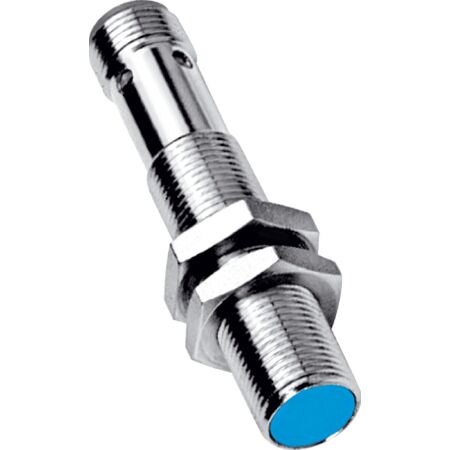

The SICK MM12-60APS-ZUA Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
