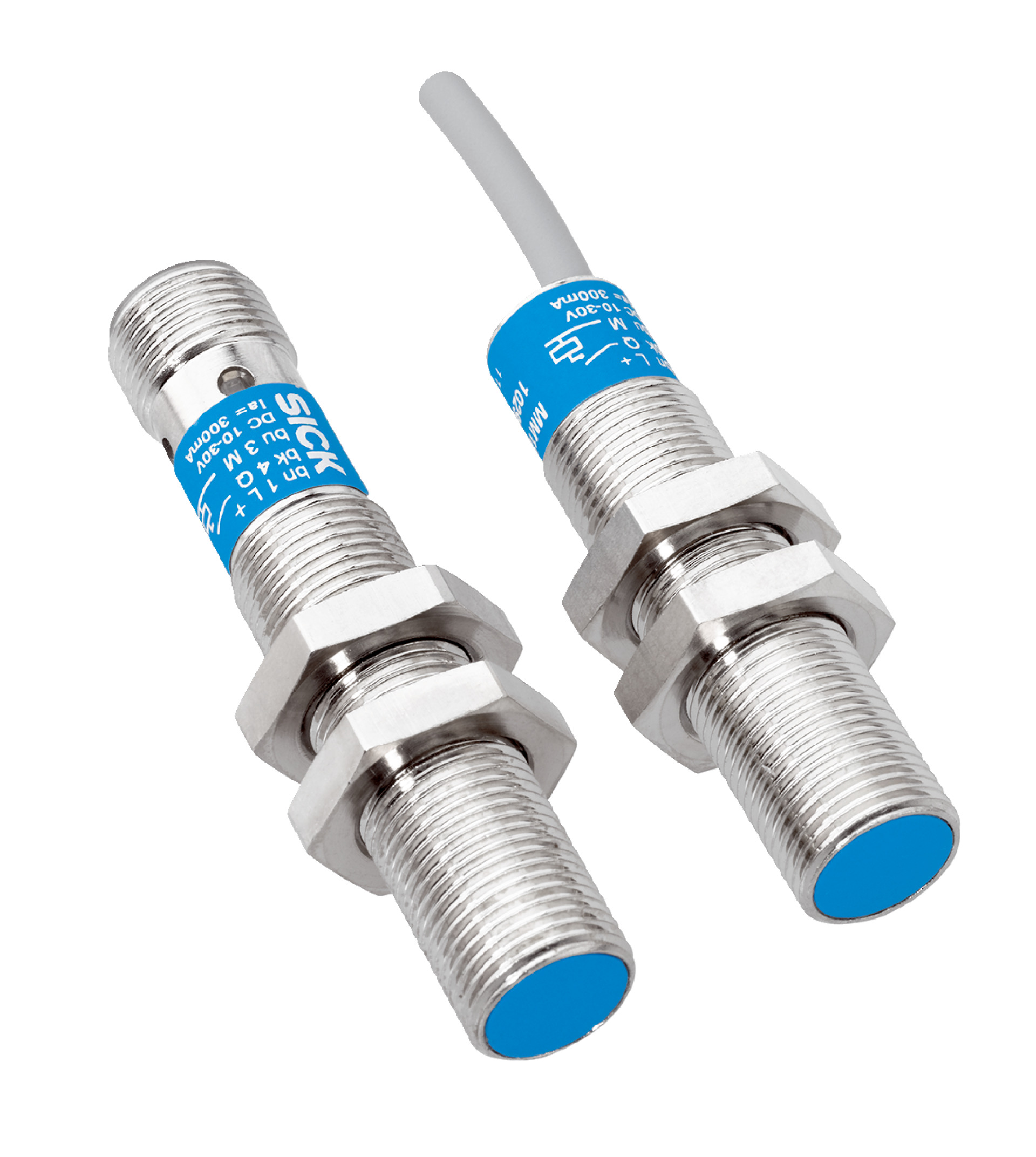

Inductive Proximity Sensor M12 | 5mm to 90mm Sensing Range | 1000Hz Switching Frequency | IP67 Rated | by SICK
The Inductive Proximity Sensor M12 is designed for precise object detection with a sensing range from 5 mm to 90 mm and a high switching frequency of 1,000 Hz. Built for industrial automation, this sensor features a durable nickel-plated brass housing and is IP67 rated for dust and water protection, making it ideal for demanding environments. Perfect for manufacturing lines and safety control systems, it ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | 5mm to 90mm Sensing Range | 1000Hz Switching Frequency | IP67 Rated | by SICK
Brand: SICK
SKU: 1051013
Alternatively Known As: Inductive Proximity Sensor M12, SICK Proximity Sensor 90mm, NPN Proximity Switch
Technical Specifications
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 5 mm to 90 mm
- Safe sensing range Sa: 72.9 mm
- Magnetic sensitivity: 0.6 mT
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: NPN, Normally Open (NO)
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.2 V
- Current consumption: 10 mA
- Time delay before availability: ≤ 30 ms
- Hysteresis: ≤ 25%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +75 °C
- Housing material: Metal, Nickel-plated brass
- Tightening torque max: ≤ 7 Nm
- Dimensions (H x L x W): 12mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- Advanced metal nickel-plated brass housing
- Sensing range from 5 mm to 90 mm
- High switching frequency of 1,000 Hz
- NPN normally open output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Reverse polarity, short-circuit, and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable metal housing extends product life reducing waste
- Low power consumption enhances energy efficiency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

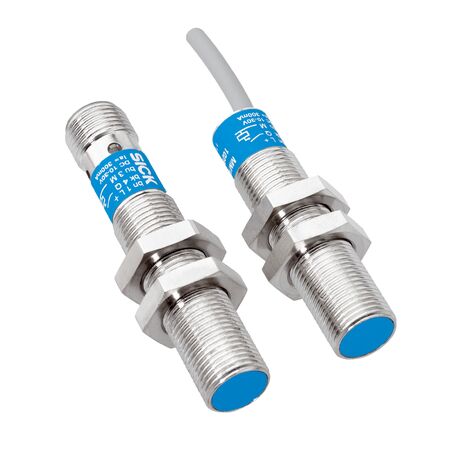

The SICK MM12-90ANS-ZU0 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and control applications.
