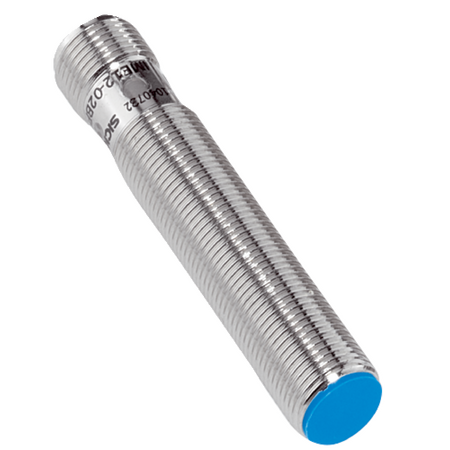

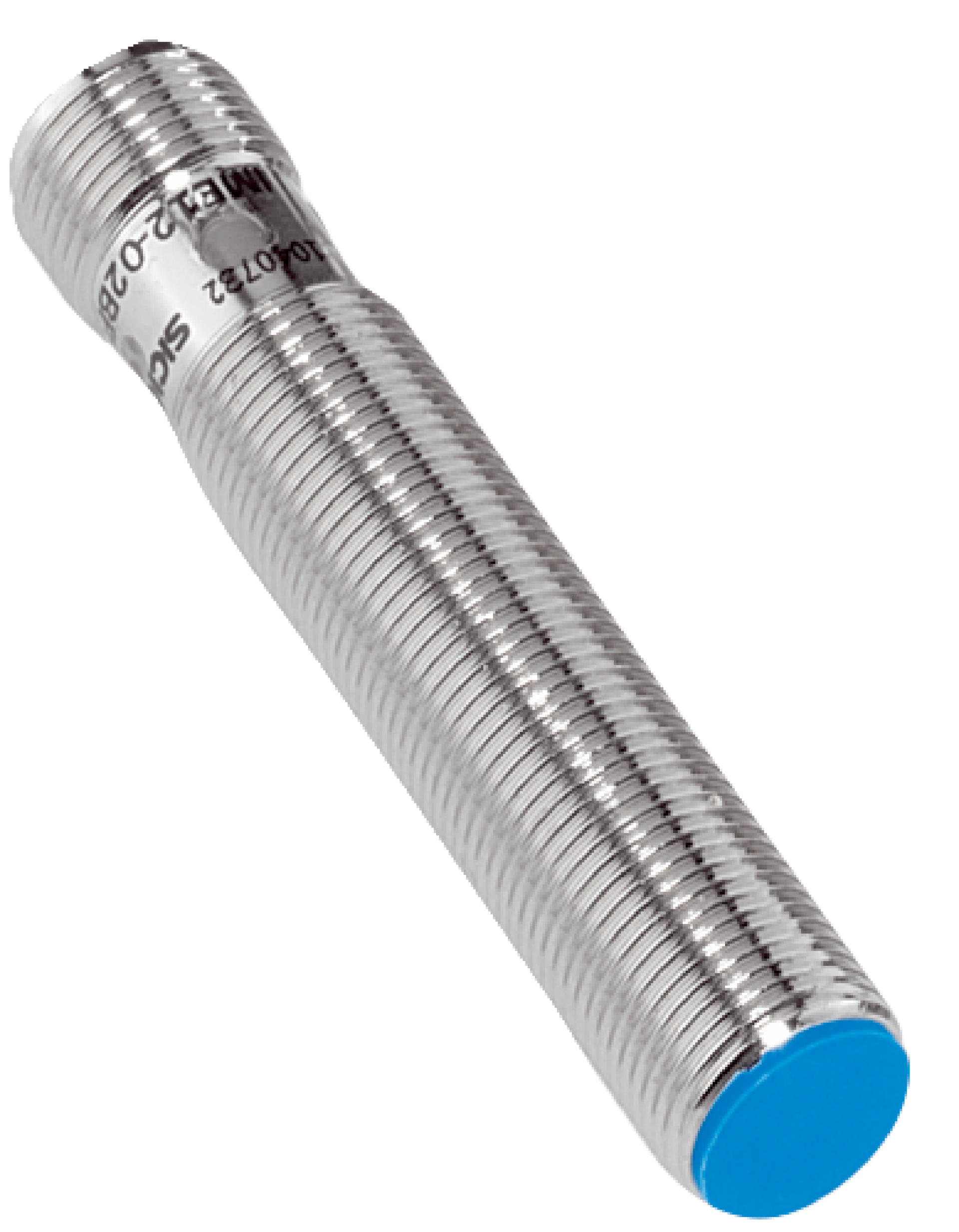

Inductive Proximity Sensor M12 | 6mm Sensing Range | IP67 Rated | High Switching Frequency | by SICK
The Inductive Proximity Sensor M12 is designed for precise object detection in industrial automation, featuring a 6mm sensing range and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 800 Hz and a robust brass housing, this sensor is perfect for manufacturing process control and position sensing in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Proximity Sensor, SICK Proximity Sensor 6mm, M12 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliance: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Operating temperature: -25 °C to +75 °C
- Storage temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 48 mm
- Tightening torque max: ≤ 12 Nm
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- Quasi-flush installation type
- High switching frequency of 800 Hz
- PNP switching output with NO function
- DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper function and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Conveyor systems and robotics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing with nickel plating for long service life reducing waste
- Energy-efficient operation with low power consumption
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IME12-06BPSZC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
