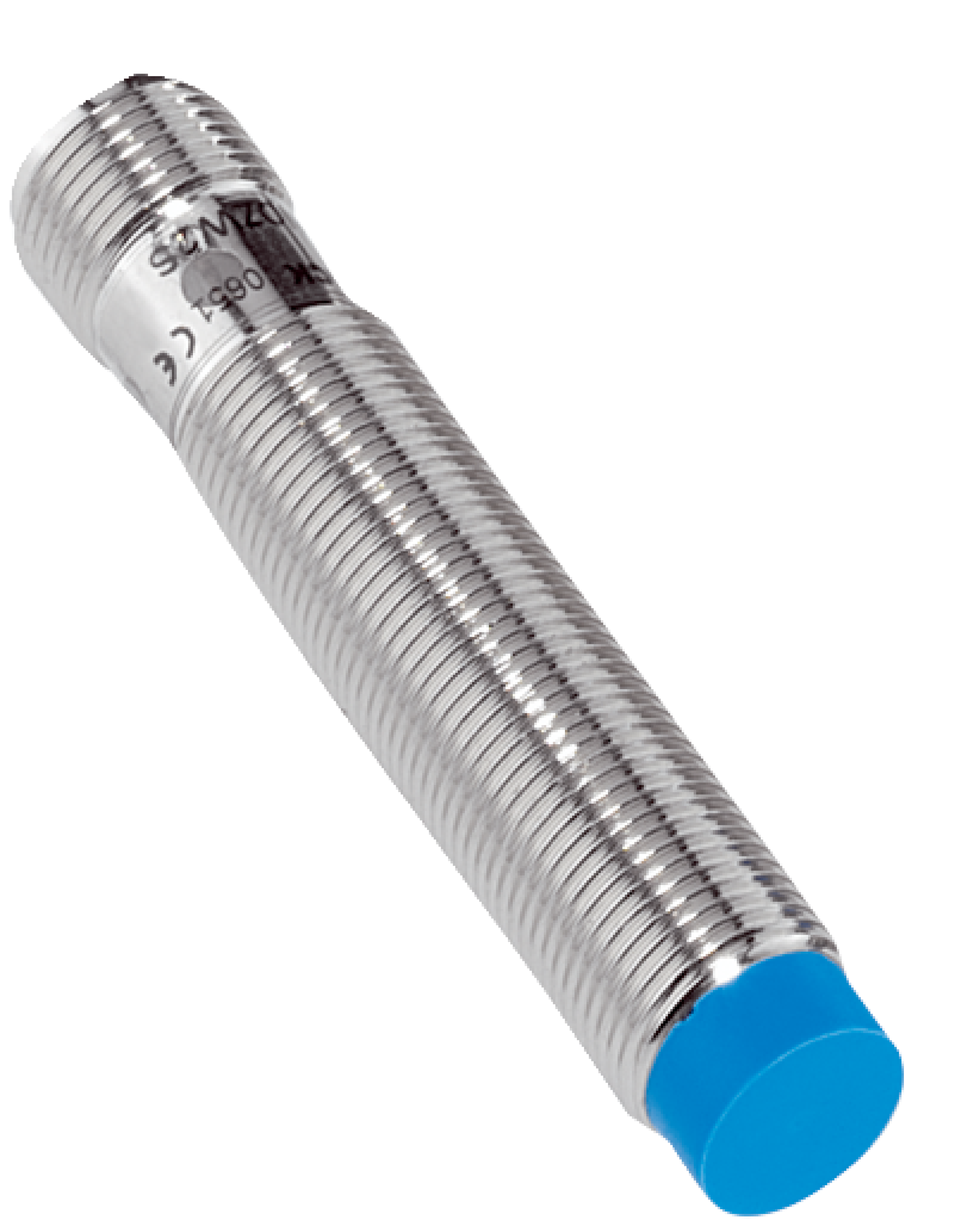

Inductive Proximity Sensor M12 | 8mm Sensing Range | IP67 Rated | 2000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and a high switching frequency of 2000 Hz. With an IP67 rated enclosure, it offers excellent dust and water protection, making it ideal for harsh environments. Perfect for applications in manufacturing lines and safety control systems, this sensor ensures precise position sensing and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Proximity Sensor, SICK Proximity Sensor 8mm, M12 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, normally open (NO)
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M12 x 1
- Switching frequency: 2,000 Hz
- Safe sensing range: 6.48 mm
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with NO output function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and secure mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in conveyor systems
- Safety and control systems in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

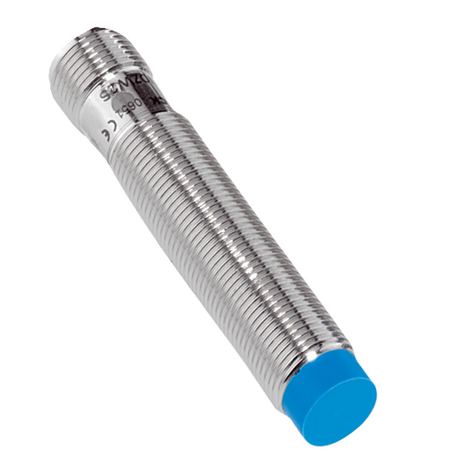

The SICK IME12-08NPSZC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
