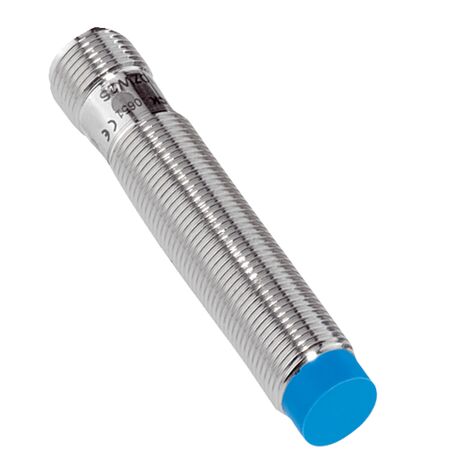

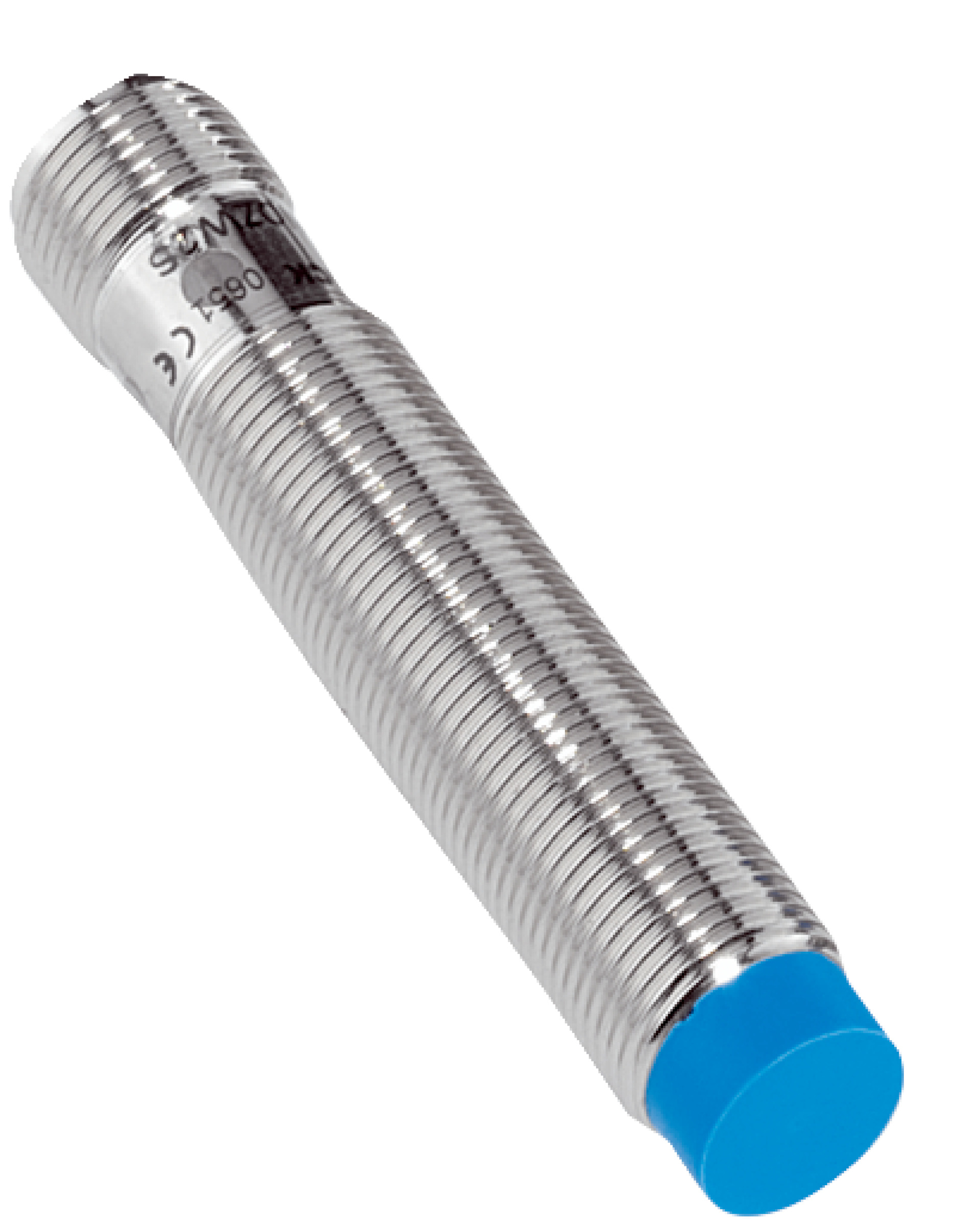

Inductive Proximity Sensor M12 | 8mm Sensing Range | IP67 Rated | 2000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and a high switching frequency of 2,000 Hz. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for manufacturing process control and position sensing in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | 8mm Sensing Range | IP67 Rated | 2000Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1040780
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Sensor, PNP Proximity Switch, Non-flush Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 2,000 Hz
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Electrical wiring: DC 3-wire
- Connection type: Male connector M12, 4-pin
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Ambient operating temperature: -25°C to +75°C
- Enclosure rating: IP67
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M12 x 1 with 8 mm sensing range
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with NO function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Conveyor systems and robotics
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-08NPSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
