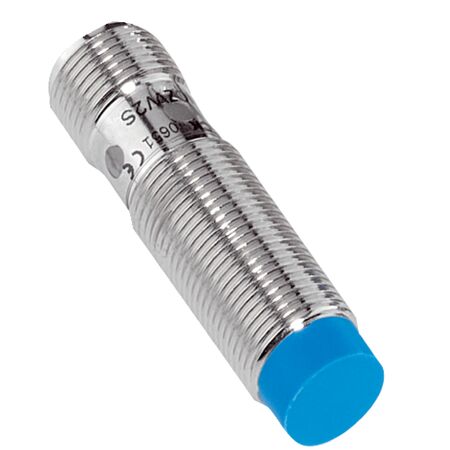

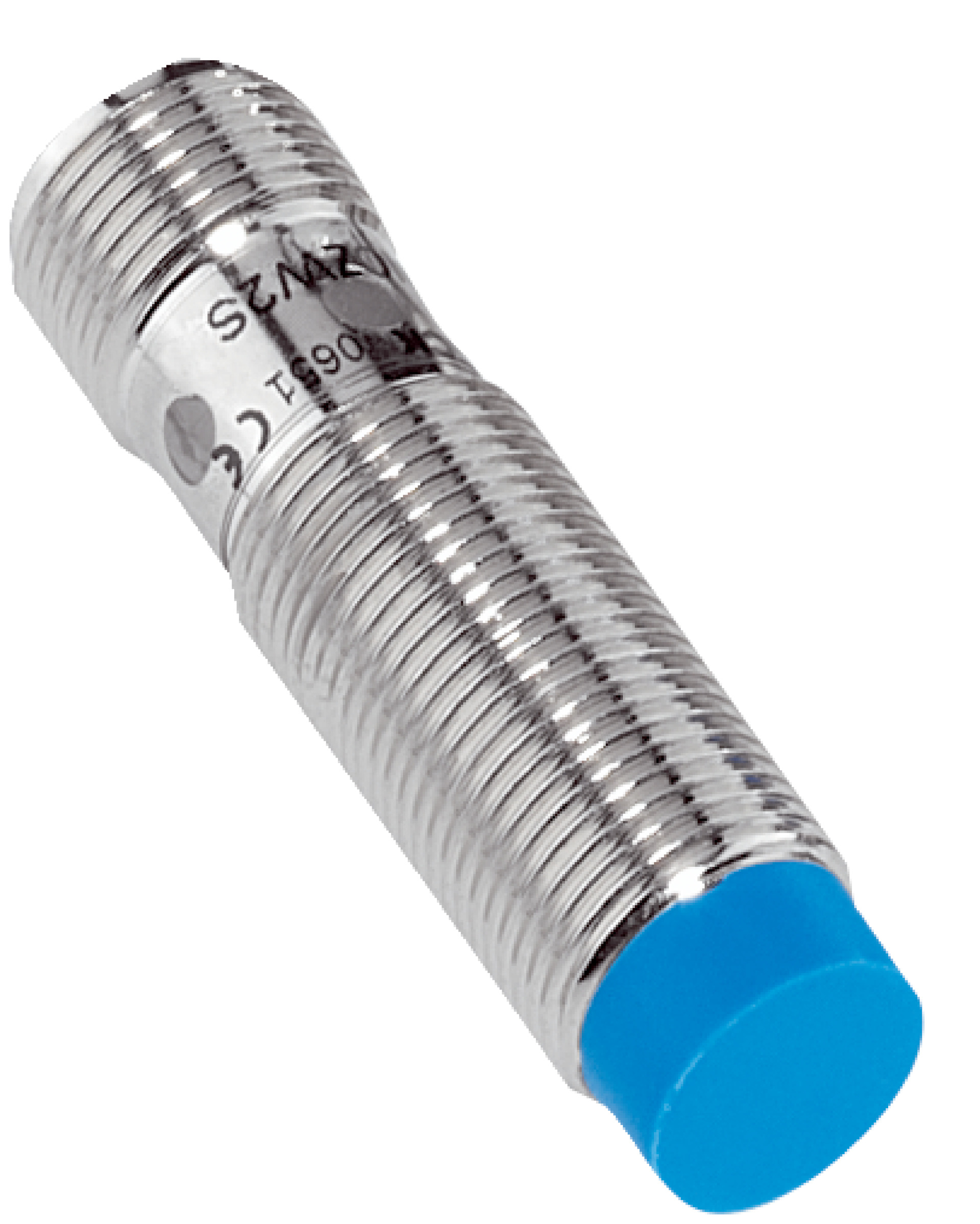

Inductive Proximity Sensor M12 | 8mm Sensing Range | IP67 Rated | 2000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and a high switching frequency of 2000Hz. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for harsh environments. Built for professionals, this sensor is perfect for position sensing in manufacturing lines and non-contact switching in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | 8mm Sensing Range | IP67 Rated | 2000Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1040783
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Sensor, PNP Proximity Switch, Non-flush Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 2,000 Hz
- Output type: PNP, NC function
- Electrical wiring: DC 3-wire
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- MTTFD: 1,735 years
- Dimensions (H x L x W): 46mm x 46mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with NC function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Wide operating temperature range from -25 °C to +75 °C
- Brass nickel-plated housing with plastic PA 66 sensing face
- Includes two brass nickel-plated mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-08NPOZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
