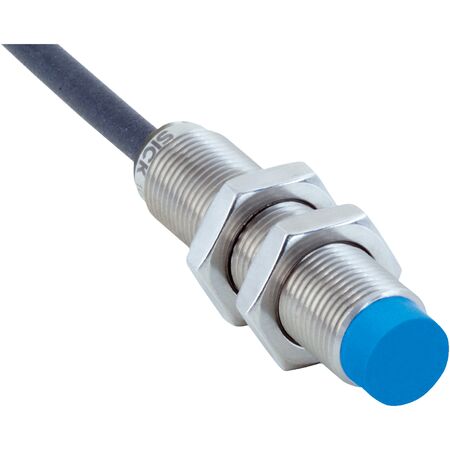

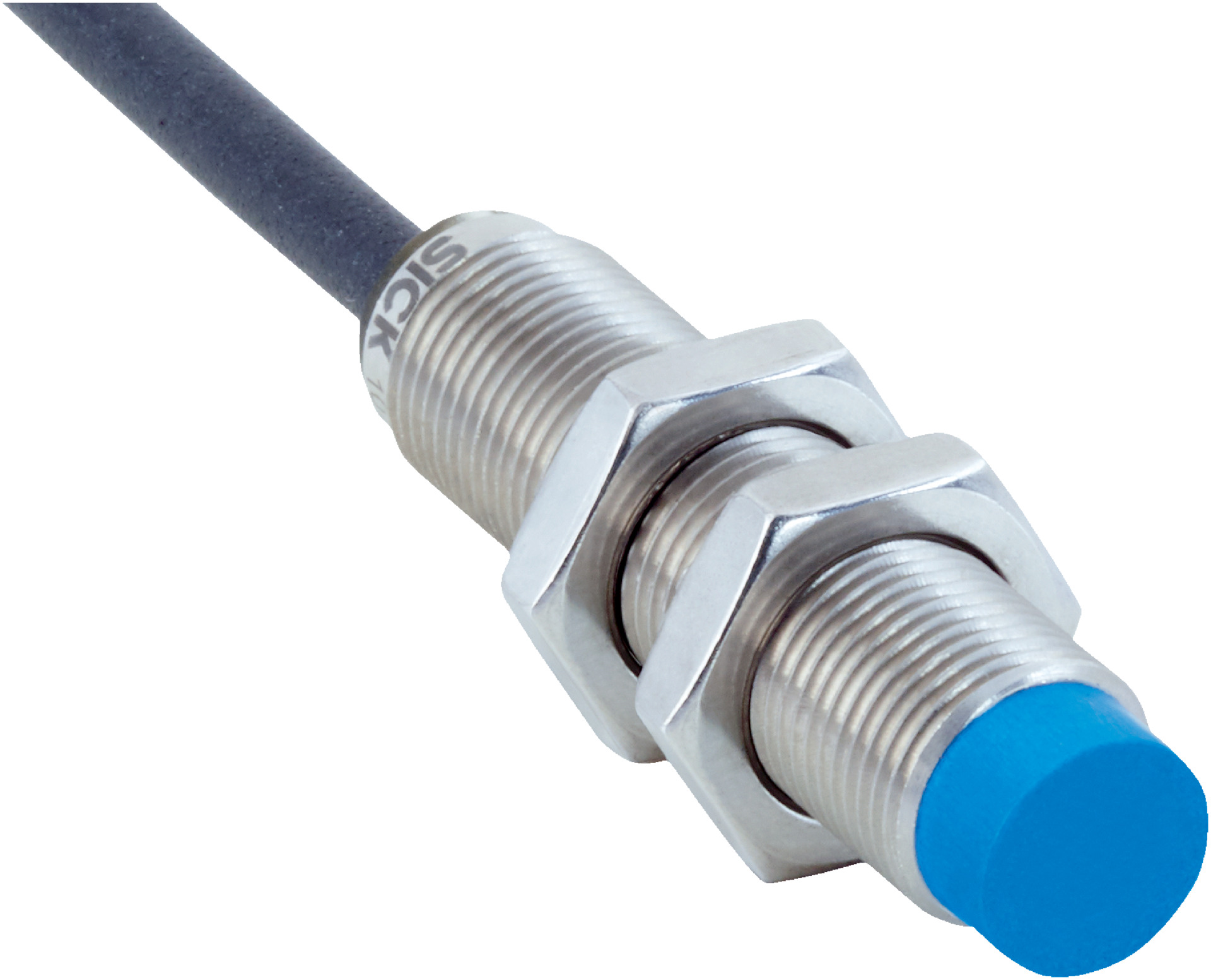

Inductive Proximity Sensor M12 | 8mm Sensing Range | IP67/IP68/IP69K Rated | NPN Output | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation and mobile machinery applications. With an 8mm sensing range and a robust IP67/IP68/IP69K enclosure rating, it withstands harsh environments, including exposure to coolants and lubricants. Built for durability and high performance, this sensor features a switching frequency of up to 2,000 Hz and is ideal for applications requiring precision and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 2,000 Hz
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Ambient operating temperature: -40 °C to +85 °C
- Cable: PUR, 3-wire, 2 m length, 0.25 mm² conductor size
- Enclosure rating: IP67, IP68, IP69K
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Protection class: III
- LED indication: Yellow LED for switching status
- Dimensions (H x L x W): 55mm x 55mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with nickel-plated brass material
- M12 x 1 thread size with 8 mm sensing range
- Non-flush installation type
- Switching frequency up to 2,000 Hz
- NPN switching output with NC function
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP67, IP68, IP69K for high protection
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN 60068 standards
- Short-circuit and power-up pulse protection included
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMG12-08NNOZU2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
