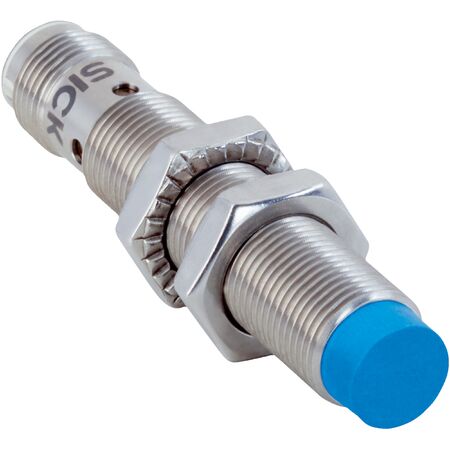

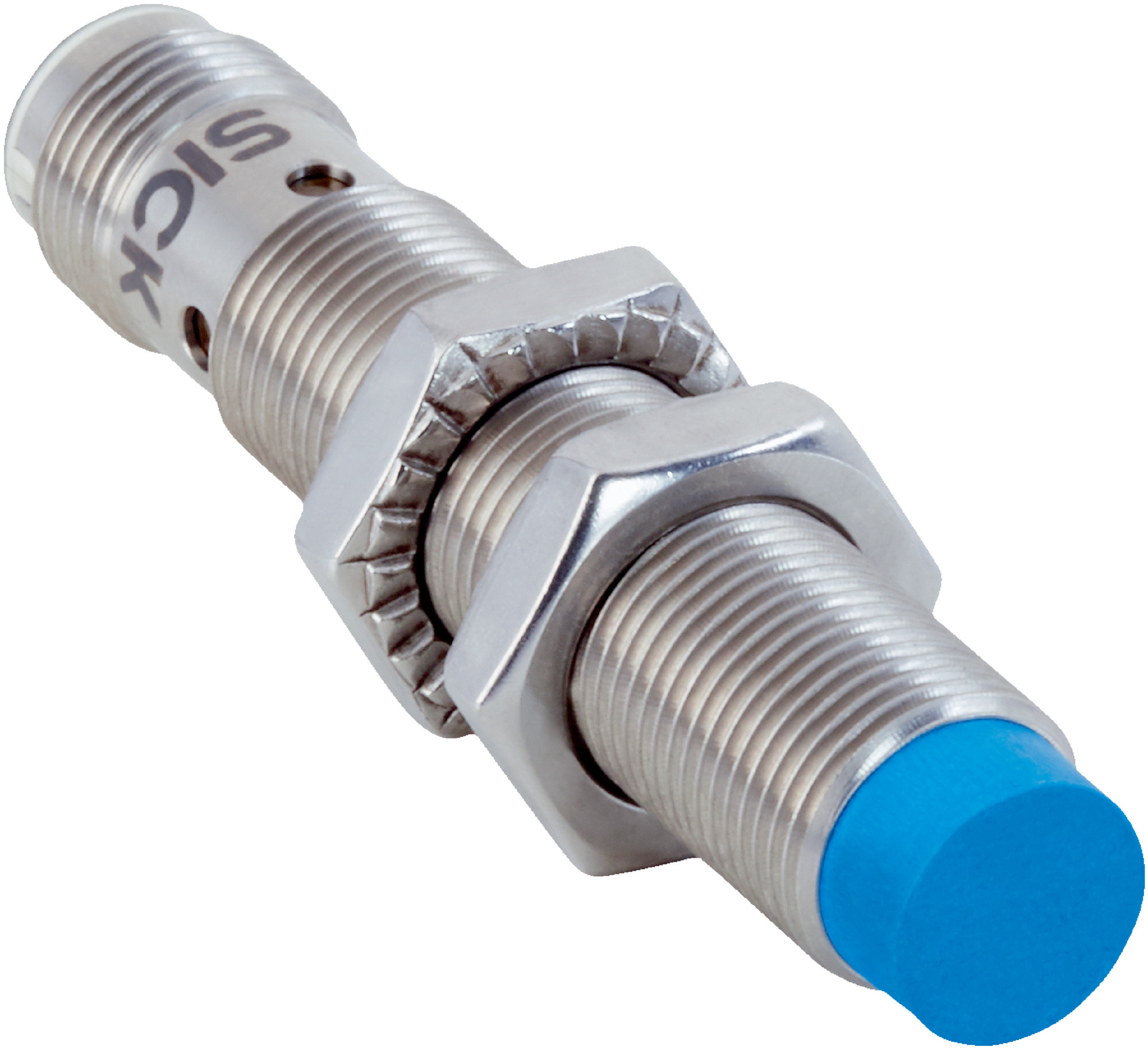

Inductive Proximity Sensor M12 | 8mm Sensing Range | IP68 & IP69K Rated | High Switching Frequency | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and high switching frequency of 2,000 Hz. With an IP68 and IP69K rated enclosure, it withstands harsh environments, making it ideal for mobile machines and areas exposed to coolant and lubricants. Built for durability, this sensor ensures long-lasting performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | 8mm Sensing Range | IP68 & IP69K Rated | High Switching Frequency | by SICK
Brand: SICK
SKU: 1074360
Alternatively Known As: Inductive Proximity Sensor M12, Proximity Switch M12, IMB12 Sensor, SICK Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP complementary switching output with DC 4-wire electrical wiring
- IP68 and IP69K rated enclosure for high protection
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant withstanding up to 150 g
- Communication interface IO-Link V1.0 with COM2 38.4 kBaud
- Includes mounting nut made of V2A stainless steel with locking teeth
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with inductive sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolant and lubricant exposure
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMB12-08NPPVC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
