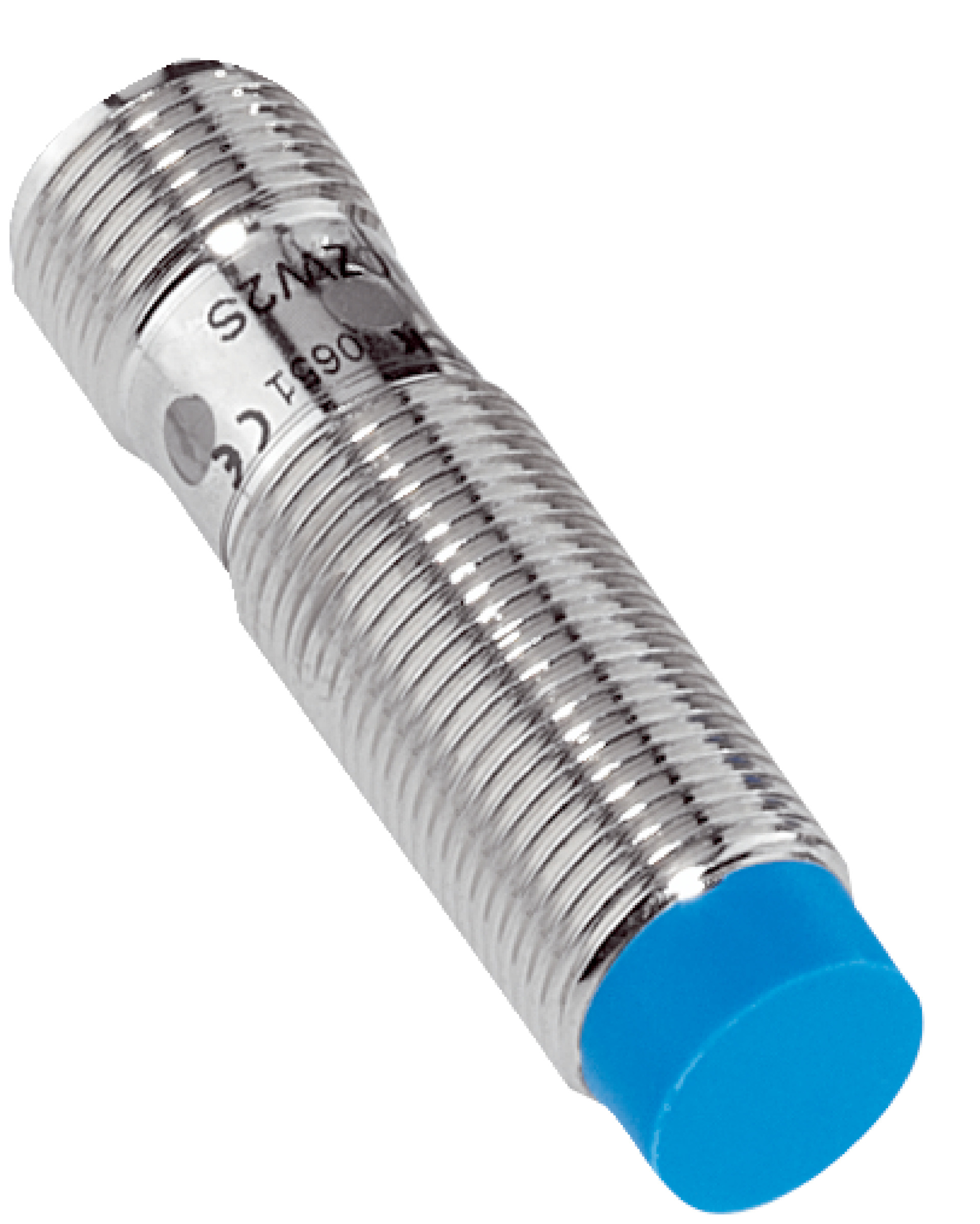

Inductive Proximity Sensor M12 8mm | PNP Normally Open | IP67 Rated | by SICK
The Inductive Proximity Sensor M12 8mm is designed for reliable object detection in industrial automation. With a PNP normally open output and an IP67 rated enclosure, it ensures durability and protection against dust and water. Ideal for position sensing in manufacturing lines and non-contact switching in machinery, this sensor features a high switching frequency of 2,000 Hz and a sensing range of 8 mm, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 8mm | PNP Normally Open | IP67 Rated | by SICK
Brand: SICK
SKU: 1040779
Alternatively Known As: Inductive Proximity Sensor M12 8mm, PNP Proximity Switch, Short Body Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 24 mm
- Tightening torque max: ≤ 12 Nm
- Operating temperature: -25 °C to +75 °C
- EMC: According to EN 60947-5-2
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 46mm x 46mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body brass housing with nickel plating
- M12 x 1 thread size for easy mounting
- Non-flush installation type
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- High switching frequency of 2,000 Hz
- PNP normally open output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

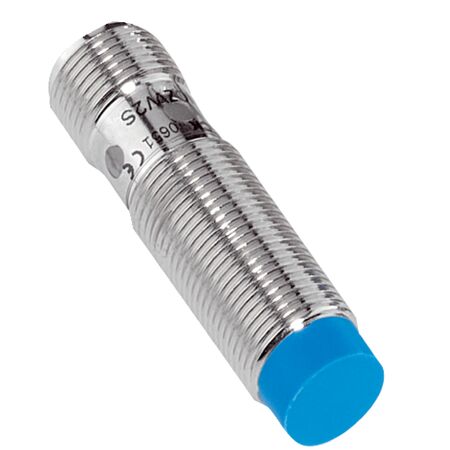

The SICK IME12-08NPSZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
