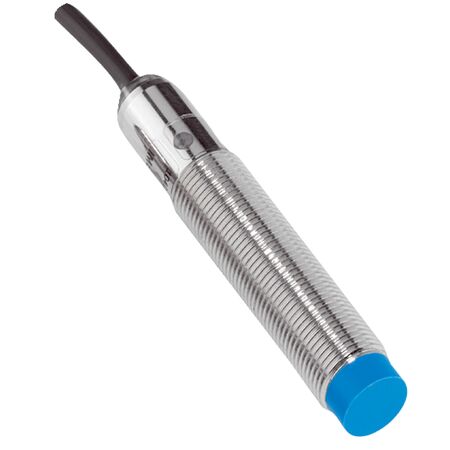

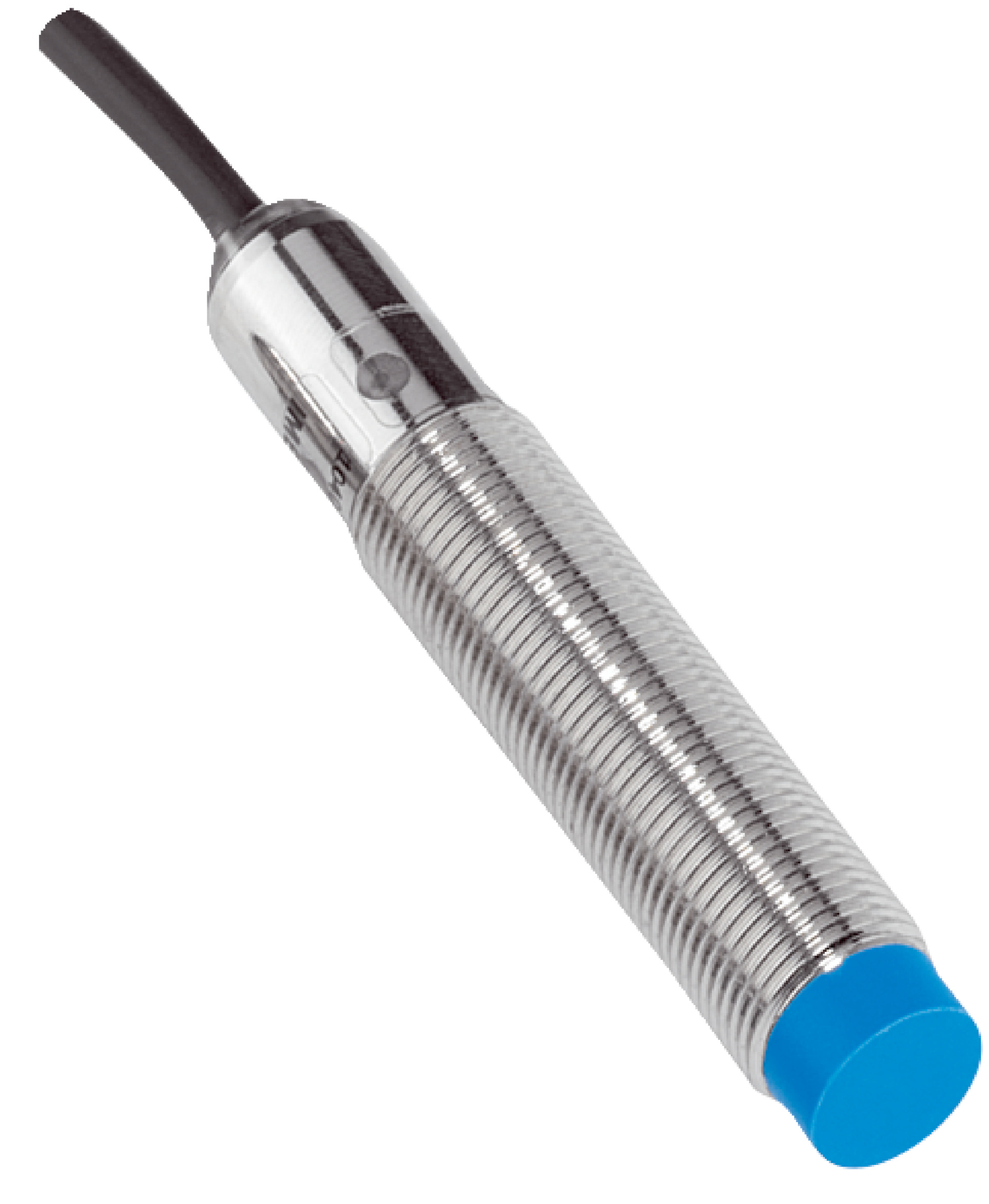

Inductive Proximity Sensor M12 | 8 mm Sensing Range | 2000 Hz Switching Frequency | IP67 Rated | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring an 8 mm sensing range and a high switching frequency of 2,000 Hz. With a durable brass housing and IP67 rating, it ensures optimal performance in harsh environments, making it ideal for manufacturing lines and non-contact switching applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | 8 mm Sensing Range | 2000 Hz Switching Frequency | IP67 Rated | by SICK
Brand: SICK
SKU: 1052158
Alternatively Known As: Inductive Proximity Sensor M12, SICK IME12 Sensor, M12 Inductive Switch
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 2,000 Hz
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Output type: PNP, NC function
- Electrical wiring: DC 3-wire
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Cable: PVC, 3-wire, 6 m length, diameter Ø 3.9 mm
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 63mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 8 mm sensing range
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with NC function
- Cable connection, 3-wire, 6 m length
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IME12-08NPOZW6S inductive sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
