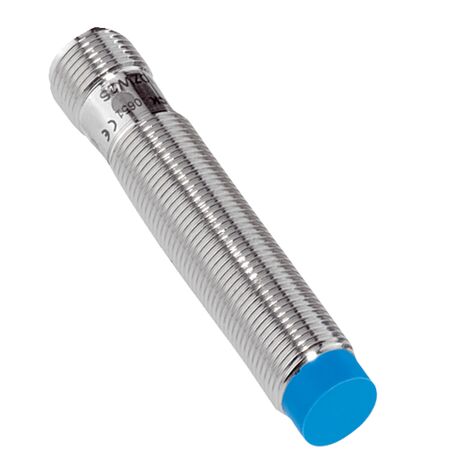

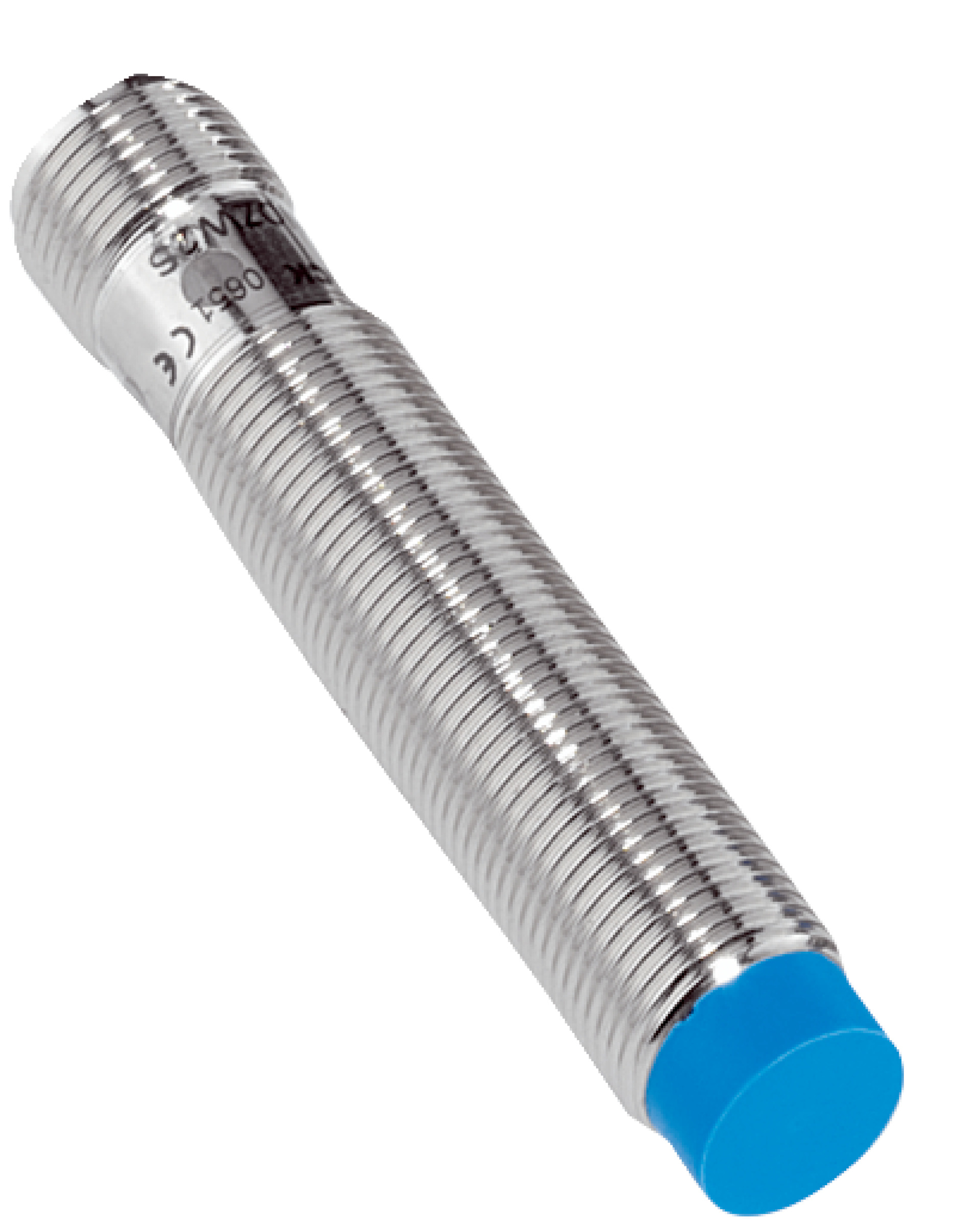

Inductive Proximity Sensor M12 | 8mm Sensing Range | PNP Output | IP67 Rated | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and PNP normally open output. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for harsh environments. This sensor is perfect for position sensing in manufacturing lines and non-contact detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 43 mm
- Tightening torque max: ≤ 12 Nm
- EMC compliant according to EN 60947-5-2
- Operating temperature: -25 °C to +75 °C
- Switching output: PNP, normally open (NO)
- Connection type: Male connector M12, 4-pin
- Switching frequency: 2,000 Hz
- Enclosure rating: IP67
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 8 mm sensing range
- Non-flush installation type
- Switching frequency up to 2,000 Hz
- PNP switching output with NO function
- IP67 rated enclosure for dust and water protection
- 120 ms pulse stretching (off delay)
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor installation and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact detection in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-08NPSZC0SS57 inductive sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
