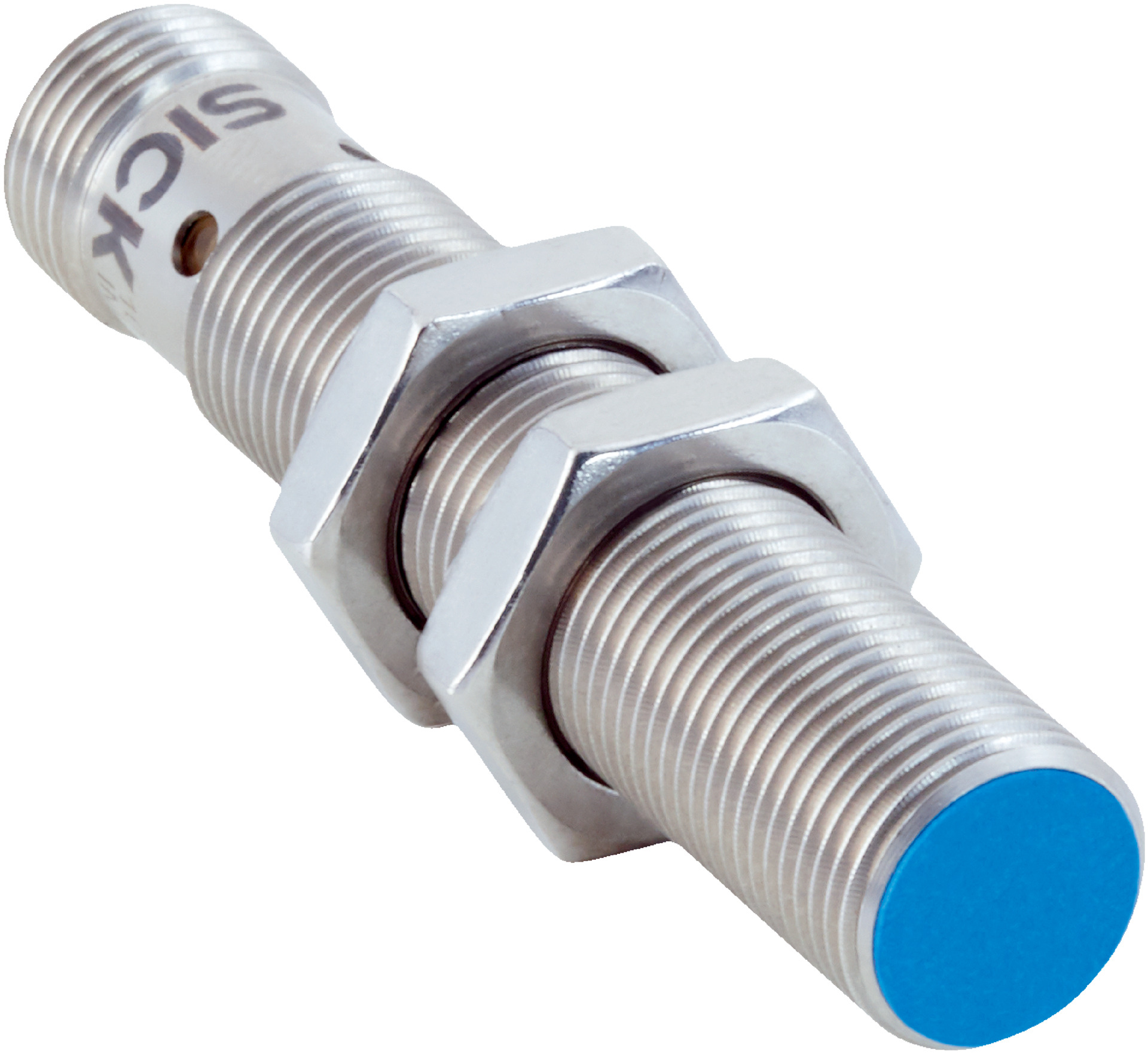

Inductive Proximity Sensor M12 | 9mm Sensing Range | IP68 Rated | NPN Normally Open Output | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a 9mm sensing range and IP68 rated enclosure for high protection against dust and water. With a switching frequency of 25 Hz and NPN normally open output, it's perfect for machine safety and process control in environments with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching output: NPN, normally open
- Switching frequency: 25 Hz
- Current consumption no load: ≤ 50 mA
- Continuous current: ≤ 200 mA
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ±10%
- Protection class: III
- Enclosure rating: IP68
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing material: Nickel-plated brass
- Sensing face material: Plastic (LCP)
- Connection type: Male M12, 4-pin connector
- Time delay before availability: ≤ 150 ms
- Display: Yellow LED for output state, Green LED for stable on/off state
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 12mm x 68mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 9 mm with safe sensing range of 7.29 mm
- Quasi-flush installation type
- Switching frequency of 25 Hz with NPN normally open output
- IP68 rated enclosure for high protection
- Resistant against coolant lubricants
- Visual adjustment indicator with yellow and green LEDs
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
- Service interface IO-Link for advanced diagnostics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

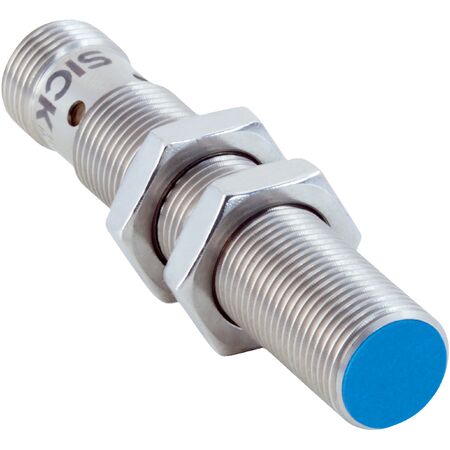

The SICK IMX12-09BNSZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
