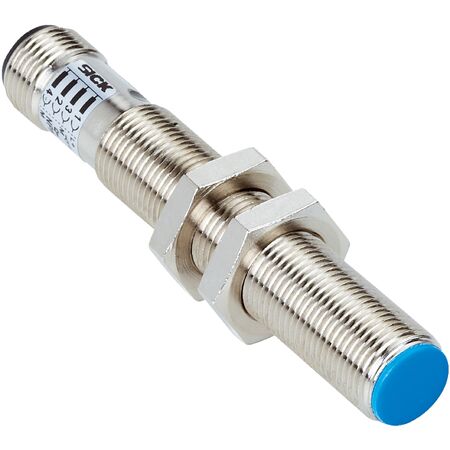

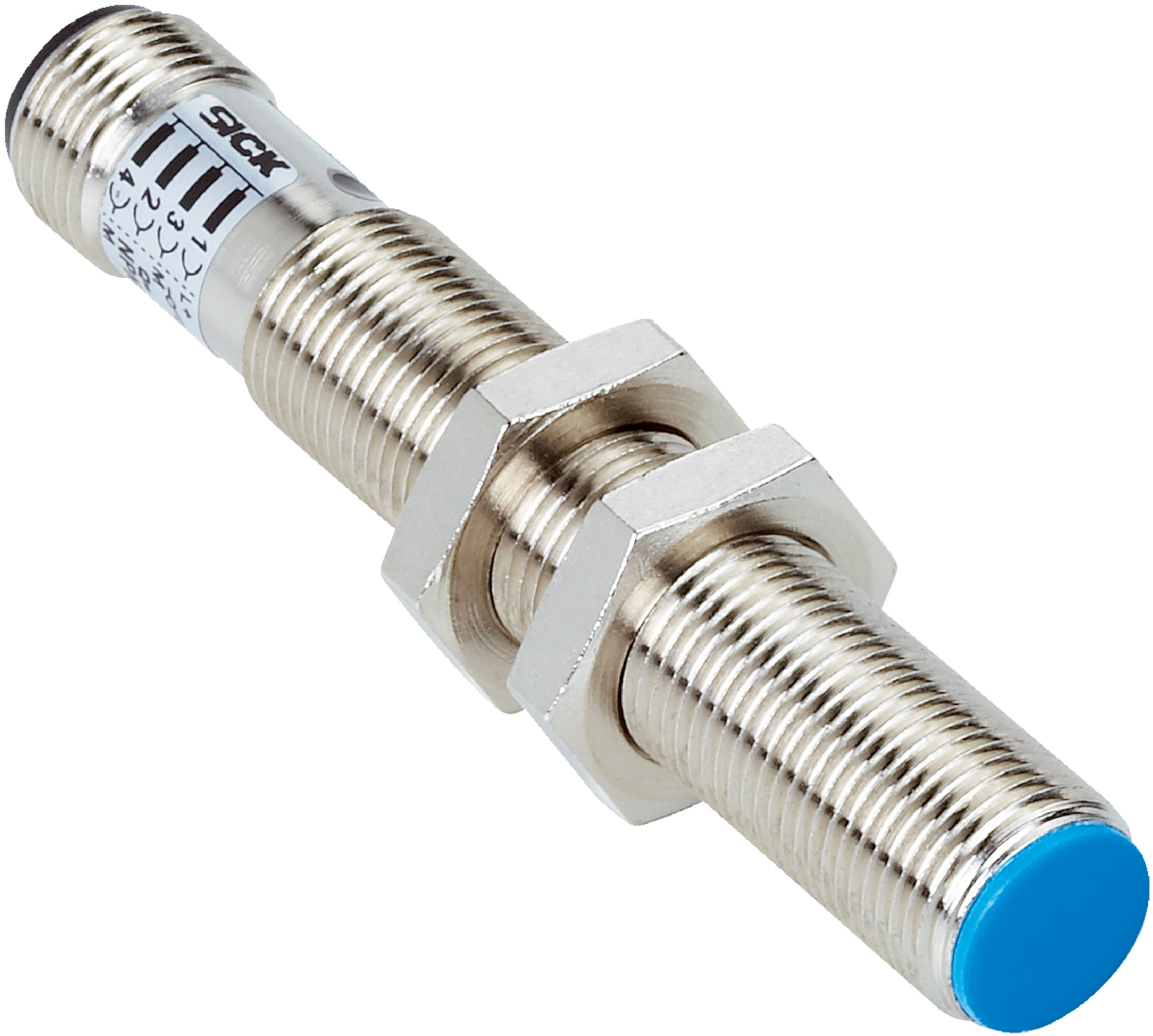

Inductive Proximity Sensor M12 | Brass Nickel-Plated Housing | IP67 Rated | 2mm Sensing Range | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation. With a robust brass, nickel-plated housing and an IP67 enclosure rating, it withstands harsh environments. Ideal for machine safety and control systems, this sensor operates within a wide temperature range of -25 °C to +80 °C, ensuring consistent performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 20 V AC to 250 V AC
- Voltage drop: ≤ 8.5 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 10%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 250 mA
- Off-state current: ≤ 3 mA (AC 250 V)
- Minimum load current: ≥ 8 mA
- Short-time withstand current: 0.9 A
- Cable material: PUR/PVC, conductor size 0.5 mm²
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +80 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PBT
- Thread length: 50 mm
- Tightening torque max: ≤ 7 Nm
- Protection class: I
- EMC: According to EN 60947-5-2 and EN 55011 class B
- Dimensions (H x L x W): 12mm x 71mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 2 mm sensing range
- Flush installation type with IP67 enclosure rating
- Switching frequency of 25 Hz with NO output function
- Cable connection type, 2-wire, 2 m length
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +80 °C
- Protection class I with power-up pulse protection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IM12-02BAS-ZU0 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
