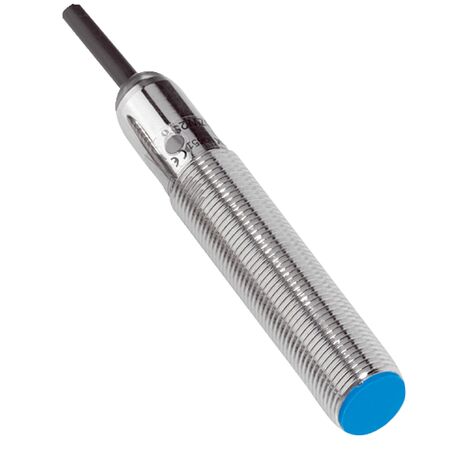

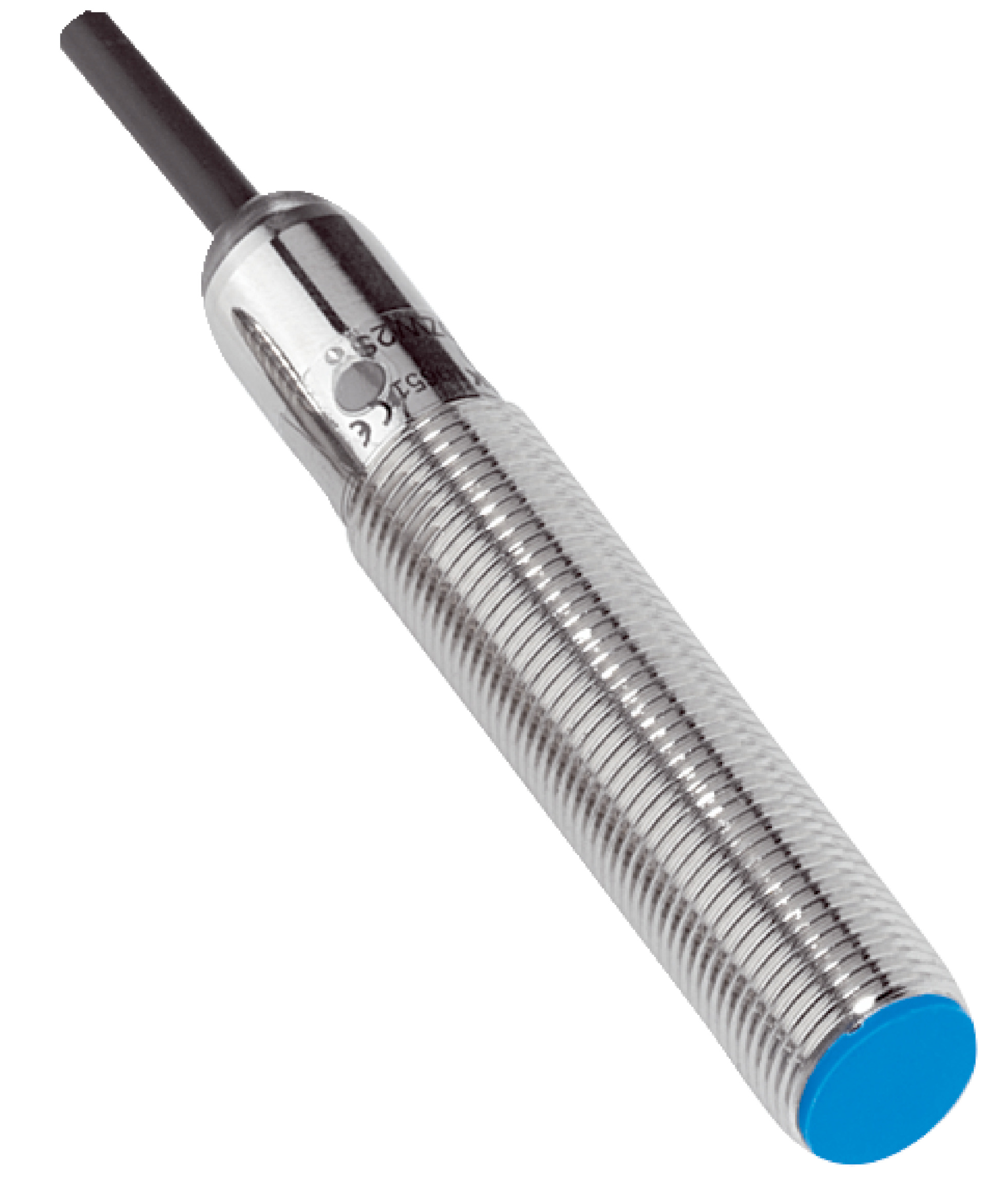

Inductive Proximity Sensor M12 | Brass Nickel-Plated Housing | IP67 Rated | 4mm Sensing Range | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a robust brass nickel-plated housing and an IP67 rating for dust and water protection. With a sensing range of 4 mm and a switching frequency of up to 2,000 Hz, it's perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring high performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Cable material: PVC
- Conductor size: 0.25 mm²
- Cable diameter: Ø 3.9 mm
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Housing length: 63 mm
- Thread length: 48 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 12mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 12 mm diameter
- Flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency up to 2,000 Hz
- Cable connection, 2-wire, 2 m length, oil-resistant
- Output function: Normally Open (NO)
- Electrical wiring: DC 2-wire
- Enclosure rating IP67 for dust and water protection
- Includes mounting nuts, brass, nickel-plated (2x)
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Oil-resistant cable extends product life in harsh environments
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-04BDSZY2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
