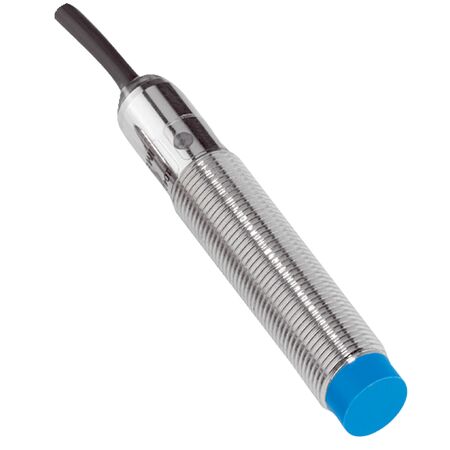

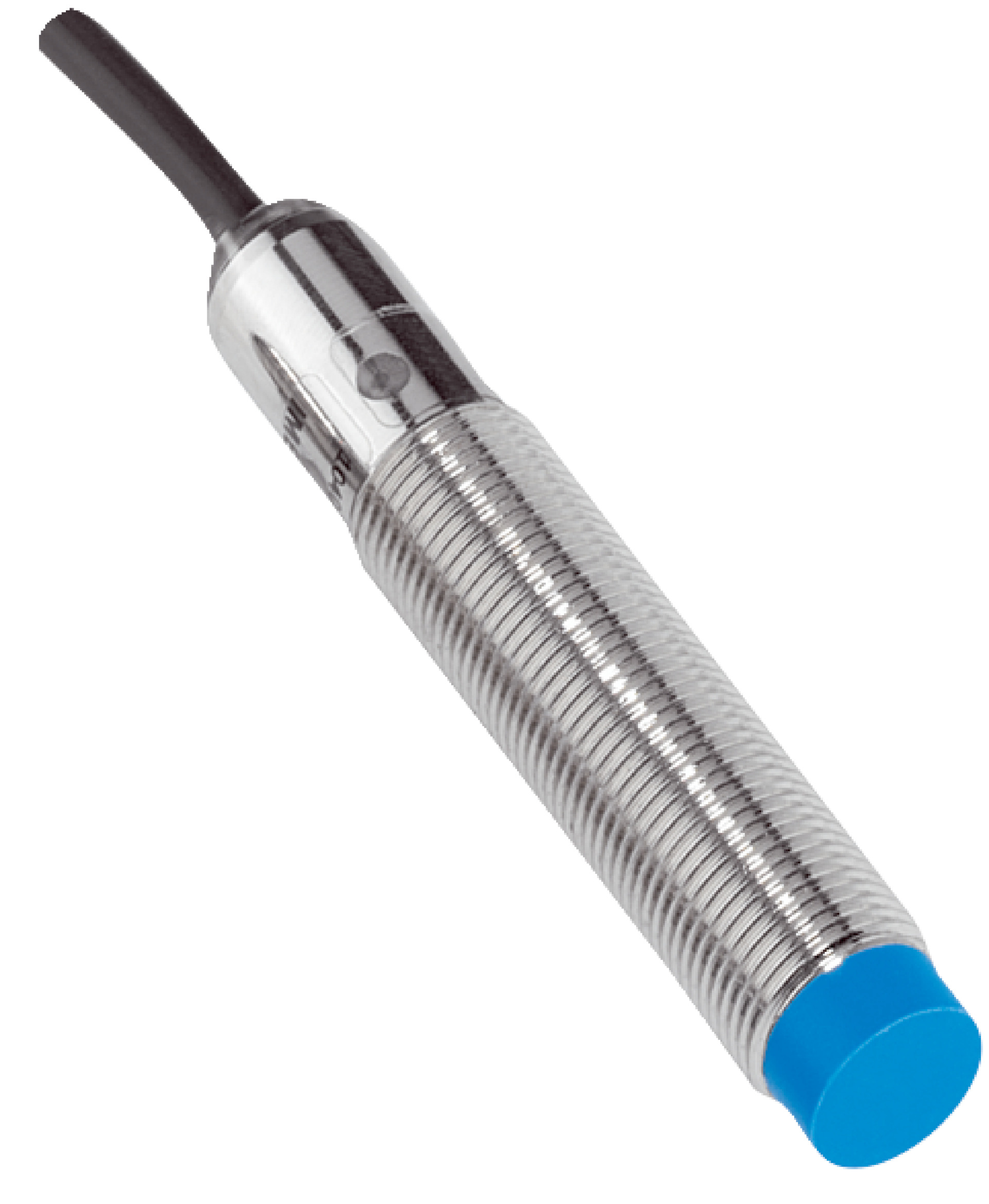

Inductive Proximity Sensor M12 | IP67 Rated | 2,000 Hz Switching Frequency | Brass Housing | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring an IP67 enclosure for dust and water protection. With a switching frequency of up to 2,000 Hz and a robust brass housing, this sensor is perfect for non-contact switching in machinery and position sensing in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | IP67 Rated | 2,000 Hz Switching Frequency | Brass Housing | by SICK
Brand: SICK
SKU: 1040790
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Sensor, SICK Proximity Switch, M12 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter Ø 3.9 mm
- Conductor size: 0.25 mm²
- Switching output: NPN, normally open (NO)
- Switching frequency: 2,000 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 43 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 63mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M12 x 1 with 8 mm sensing range
- Non-flush installation type
- Switching frequency up to 2,000 Hz
- NPN normally open (NO) switching output
- Cable connection type, 3-wire, 2 m length
- Enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-08NNSZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
