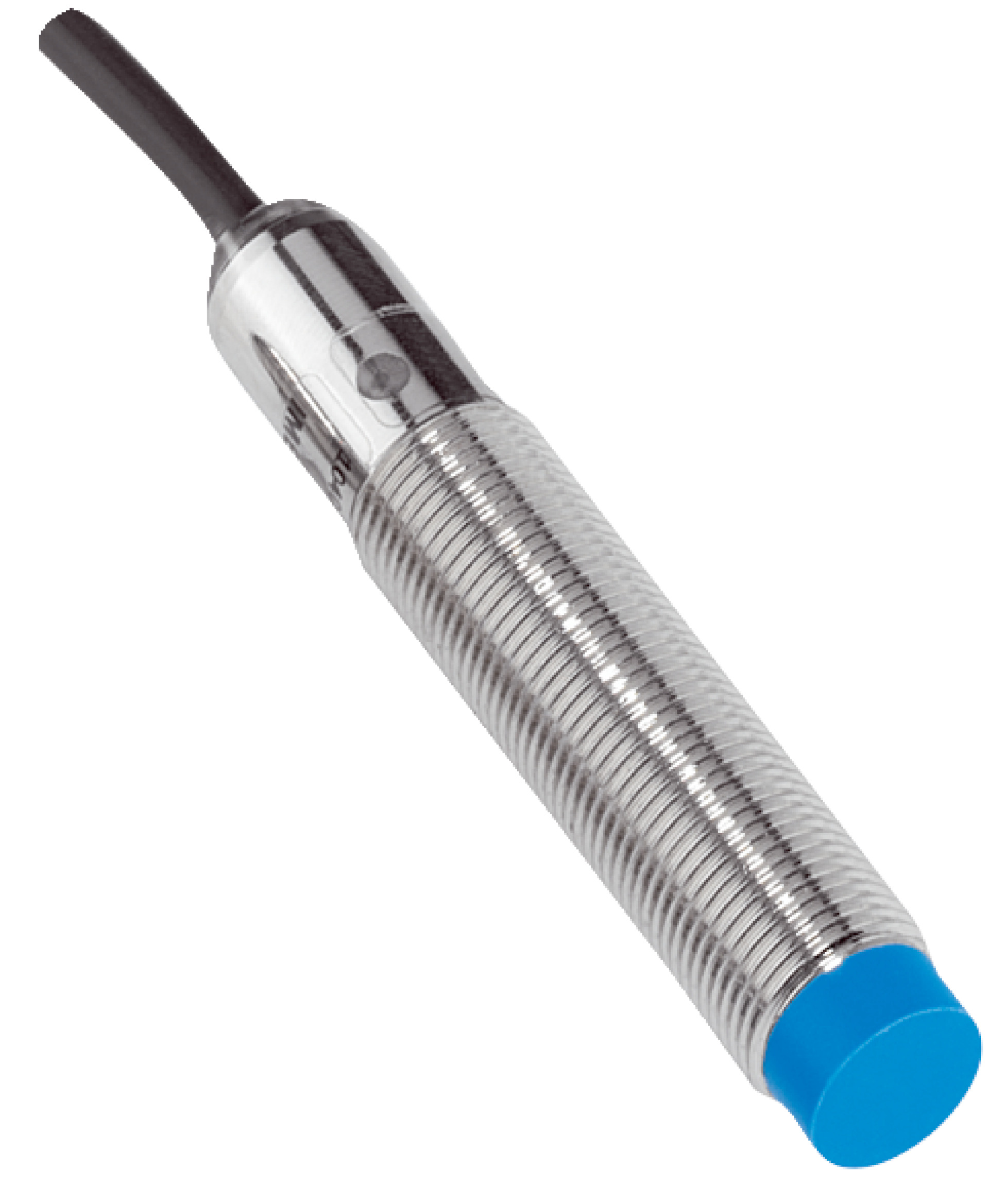

Inductive Proximity Sensor M12 | IP67 Rated | 2000 Hz Switching Frequency | Brass Housing | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a high switching frequency of 2000 Hz and an IP67 rated enclosure for dust and water protection. With a robust brass housing and a sensing range of 8 mm, this sensor is perfect for non-contact switching in manufacturing lines and metal detection in conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | IP67 Rated | 2000 Hz Switching Frequency | Brass Housing | by SICK
Brand: SICK
SKU: 1040782
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Sensor, SICK Proximity Switch, M12 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 2,000 Hz
- Switching output: PNP, normally open
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, 3-wire, 2 m length, 0.25 mm² conductor size
- Enclosure rating: IP67
- Shock resistance: 30 g, 11 ms
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 43 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 12mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M12 x 1 with 8 mm sensing range
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Cable connection type, 3-wire, 2 meters long
- Short-circuit and power-up pulse protection
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

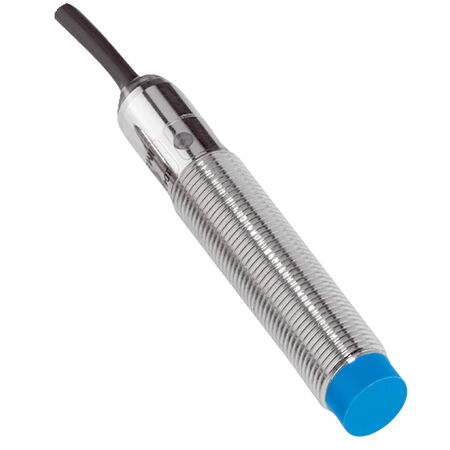

The SICK IME12-08NPSZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
