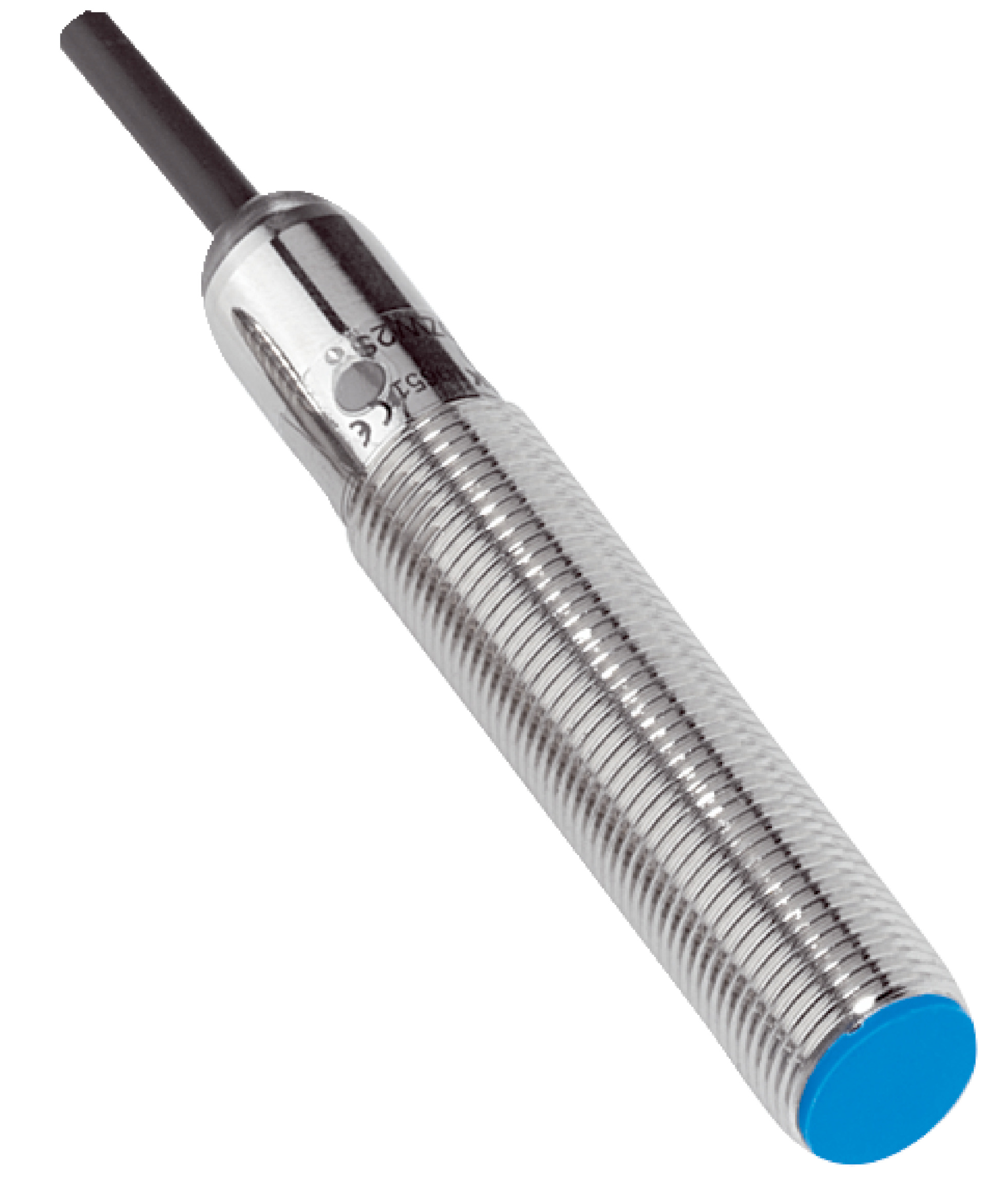

Inductive Proximity Sensor M12 | IP67 Rated | 2000 Hz Switching Frequency | Stainless Steel Housing | by SICK
Inductive proximity sensor M12 designed for industrial automation, featuring a high switching frequency of 2000 Hz and an IP67 rated enclosure. Ideal for object detection and position sensing in manufacturing lines, this sensor is built with a durable stainless steel housing, ensuring longevity and reliability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | IP67 Rated | 2000 Hz Switching Frequency | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1043110
Alternatively Known As: Inductive Proximity Sensor M12, Metal Proximity Sensor, PNP Proximity Switch, Flush Mount Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 2,000 Hz
- Switching output: PNP, normally open
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Cable length: 4 m, PVC material, diameter 3.9 mm
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic PA 66
- Thread size: M12 x 1
- Enclosure rating: IP67
- Dimensions (H x L x W): 12mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type with IP67 rated enclosure
- High switching frequency of 2,000 Hz
- PNP normally open switching output with DC 3-wire electrical wiring
- Cable connection type with 4 m PVC cable
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature from -25 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Includes mounting nuts made of V2A stainless steel
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Flush mounting in tight spaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire design
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

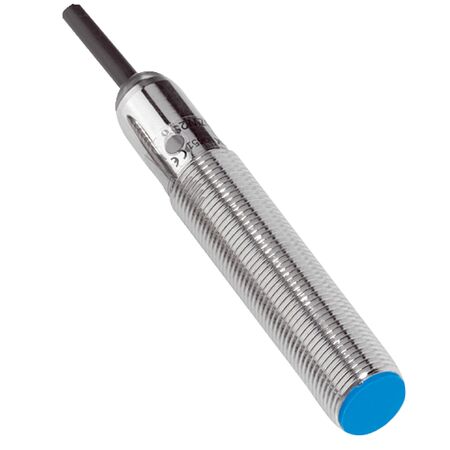

The SICK IME12-04BPSVWDS inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
