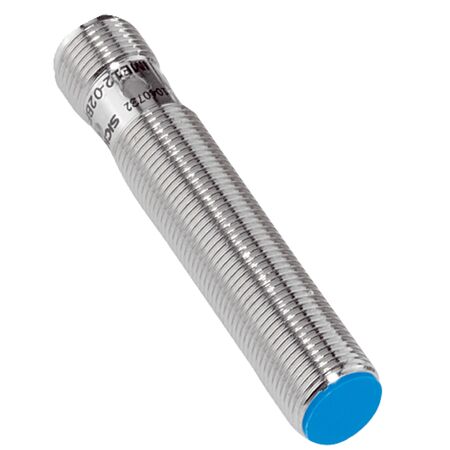

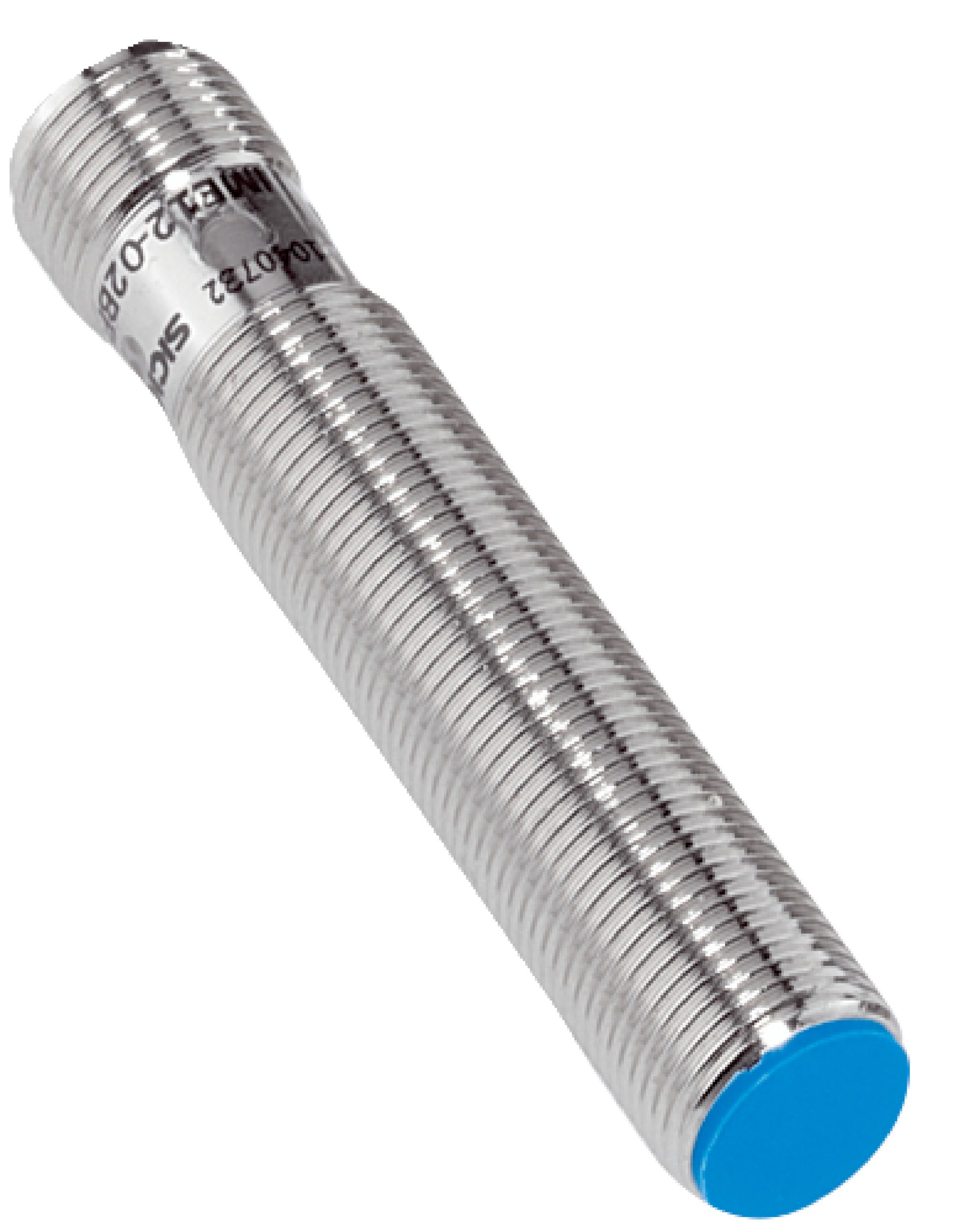

Inductive Proximity Sensor M12 | IP67 Rated | 4mm Sensing Range | 2000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a 4mm sensing range and an impressive 2000Hz switching frequency. With an IP67 enclosure rating and durable brass housing, this sensor is perfect for flush mounting in manufacturing lines and safety systems, ensuring optimal performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | IP67 Rated | 4mm Sensing Range | 2000Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1040764
Alternatively Known As: Inductive Proximity Sensor M12, M12 Proximity Sensor, IME12 Sensor, Flush Mount Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally open (NO)
- Switching frequency: 2,000 Hz
- Sensing range (Sn): 4 mm
- Safe sensing range (Sa): 3.24 mm
- Electrical wiring: DC 3-wire
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Tightening torque max: ≤ 12 Nm
- Time delay before availability: ≤ 100 ms
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M12 x 1 with 4 mm sensing range
- Flush installation type with IP67 enclosure rating
- Switching frequency up to 2,000 Hz with PNP normally open output
- Male connector M12, 4-pin connection type
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring flush mounting sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IME12-04BPSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and control applications requiring reliable object detection.
