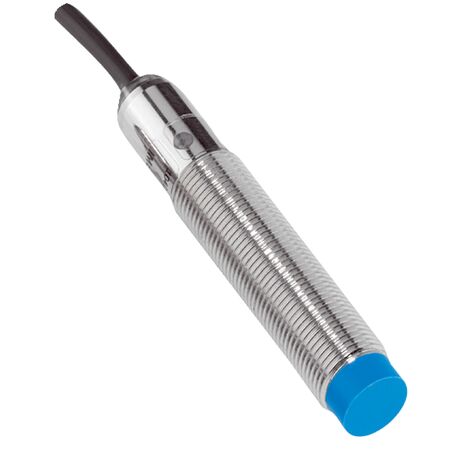

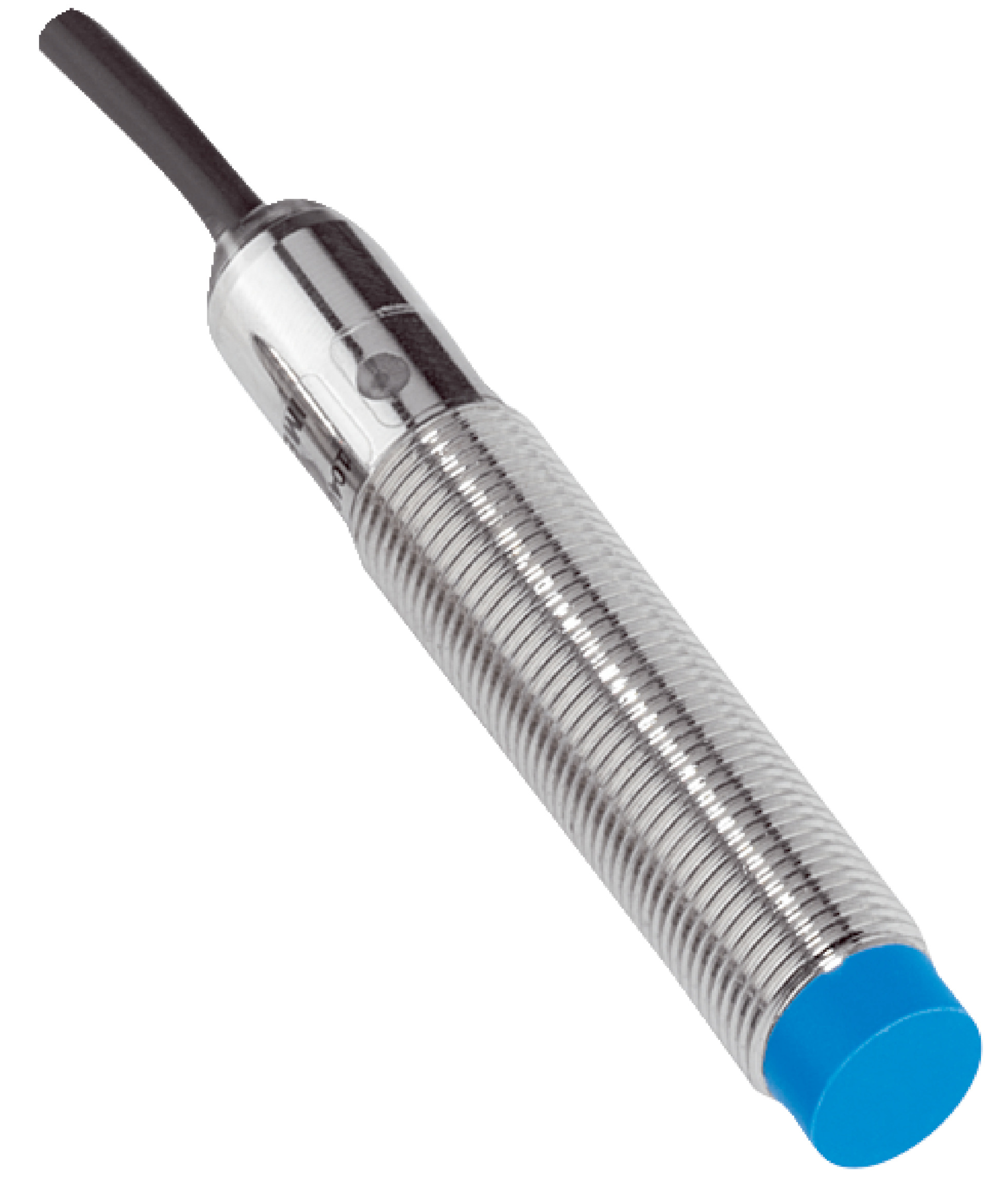

Inductive Proximity Sensor M12 | IP67 Rated | 4mm Sensing Range | High Switching Frequency | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a robust IP67 rated enclosure and a sensing range of 4mm. With a high switching frequency of 2,000 Hz and a durable brass housing, this sensor is perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring efficient operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | IP67 Rated | 4mm Sensing Range | High Switching Frequency | by SICK
Brand: SICK
SKU: 1043383
Alternatively Known As: Inductive Proximity Sensor M12, M12 Proximity Sensor, SICK IME12 Sensor, Metal Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter Ø 3.9 mm
- Conductor size: 0.25 mm²
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Housing length: 63 mm
- Thread length: 43 mm
- Tightening torque max: ≤ 12 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 63mm x 12mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 12 mm diameter
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with normally open function
- Cable connection type, 3-wire, 5 m length
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting torque and electrical connections according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Non-flush mounting environments requiring robust sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IME12-04NPSZW5S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
