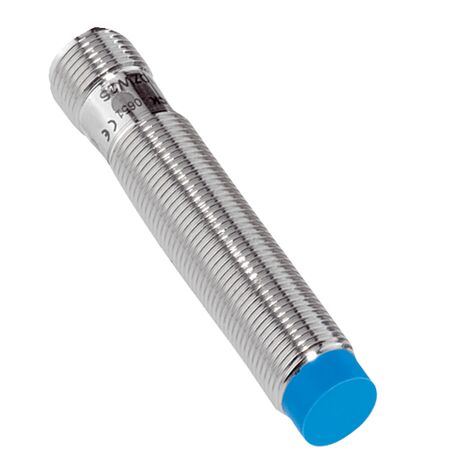

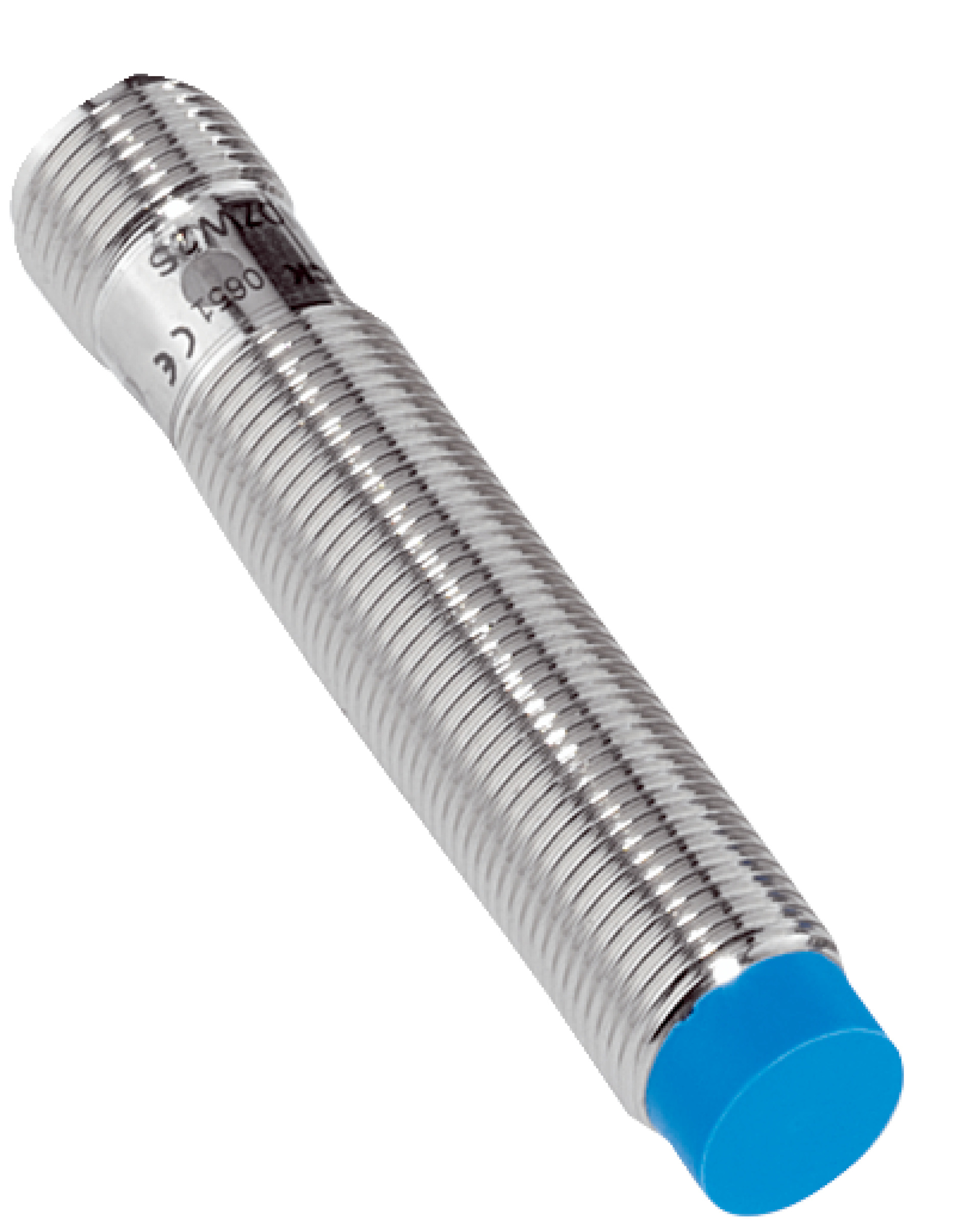

Inductive Proximity Sensor M12 | IP67 Rated | 4mm Sensing Range | NPN Output | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a 4mm sensing range and IP67 rated enclosure for dust and water protection. With a robust brass housing and non-flush installation type, it's perfect for manufacturing lines and safety control systems, ensuring high performance even in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | IP67 Rated | 4mm Sensing Range | NPN Output | by SICK
Brand: SICK
SKU: 1040760
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Sensor, SICK Proximity Switch, M12 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Connection type: Male connector M12, 4-pin
- Switching output: NPN normally closed
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 43 mm
- Tightening torque max: ≤ 12 Nm
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design with M12 x 1 thread size
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency up to 2,000 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and secure mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-04NNOZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
