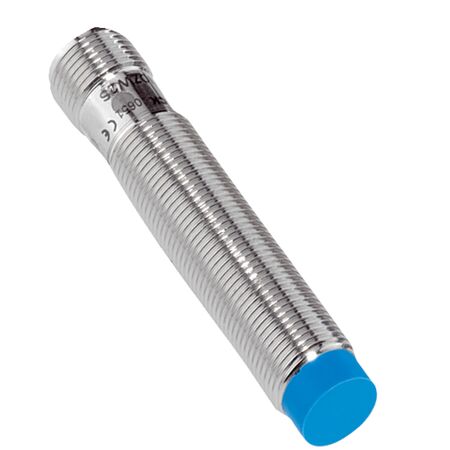

Inductive Proximity Sensor M12 | IP67 Rated | 8mm Sensing Range | Brass Housing | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and IP67 rated enclosure for dust and water protection. Built with a durable brass housing, it ensures long-lasting performance and is ideal for non-contact switching in manufacturing lines and metal detection in conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Power-up pulse: ≤ 5 ms
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Housing length: 65 mm
- Thread length: 43 mm
- Tightening torque max: ≤ 12 Nm
- EMC: According to EN 60947-5-2
- Short-circuit protection: Yes
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M12 x 1 with 8 mm sensing range
- Non-flush installation type
- Switching frequency up to 2,000 Hz
- Male connector M12, 4-pin connection
- Normally open (NO) output function
- DC 2-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Includes mounting nuts, brass, nickel-plated (2x)
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-08NDSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
