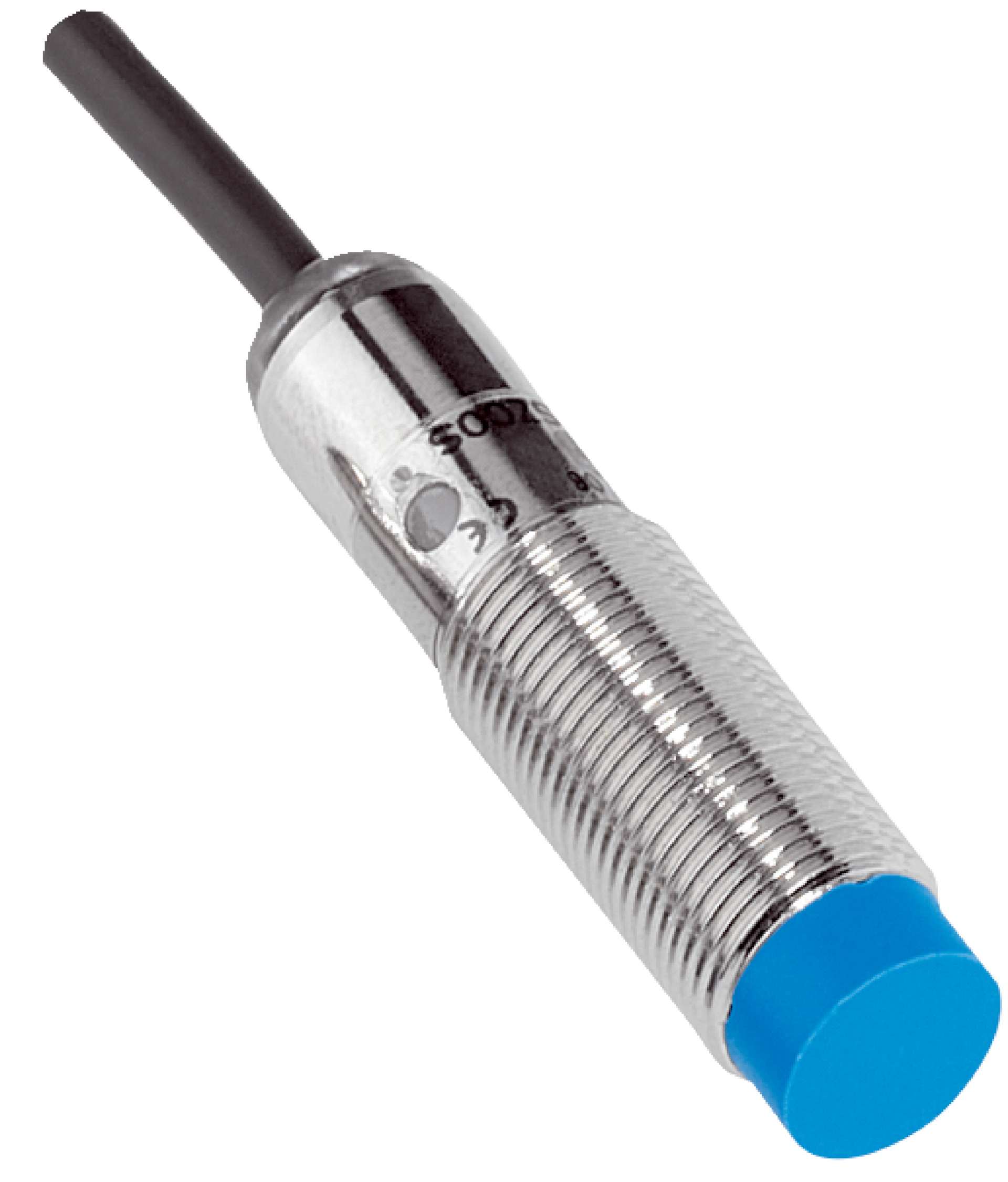

Inductive Proximity Sensor M12 | IP67 Rated | 8mm Sensing Range | 2000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and a high switching frequency of 2000Hz. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for non-contact switching in machinery and metal detection in conveyor systems, ensuring optimal performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | IP67 Rated | 8mm Sensing Range | 2000Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1040792
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Sensor, SICK Proximity Switch, NPN Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: Ø 3.9 mm, conductor size 0.25 mm²
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 24 mm
- Tightening torque max: ≤ 12 Nm
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 44mm x 64mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Non-flush installation type
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- High switching frequency of 2,000 Hz
- NPN normally closed switching output
- Cable connection type with 3-wire, 2 m PVC cable
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Wide operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and mounting torque for optimal sensor performance and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

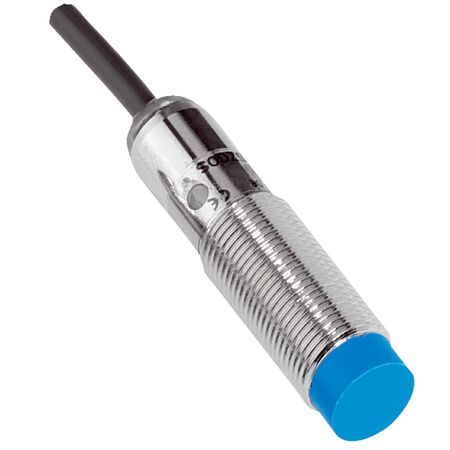

The SICK IME12-08NNOZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
