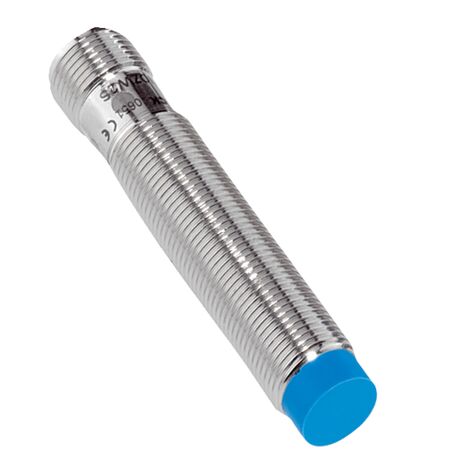

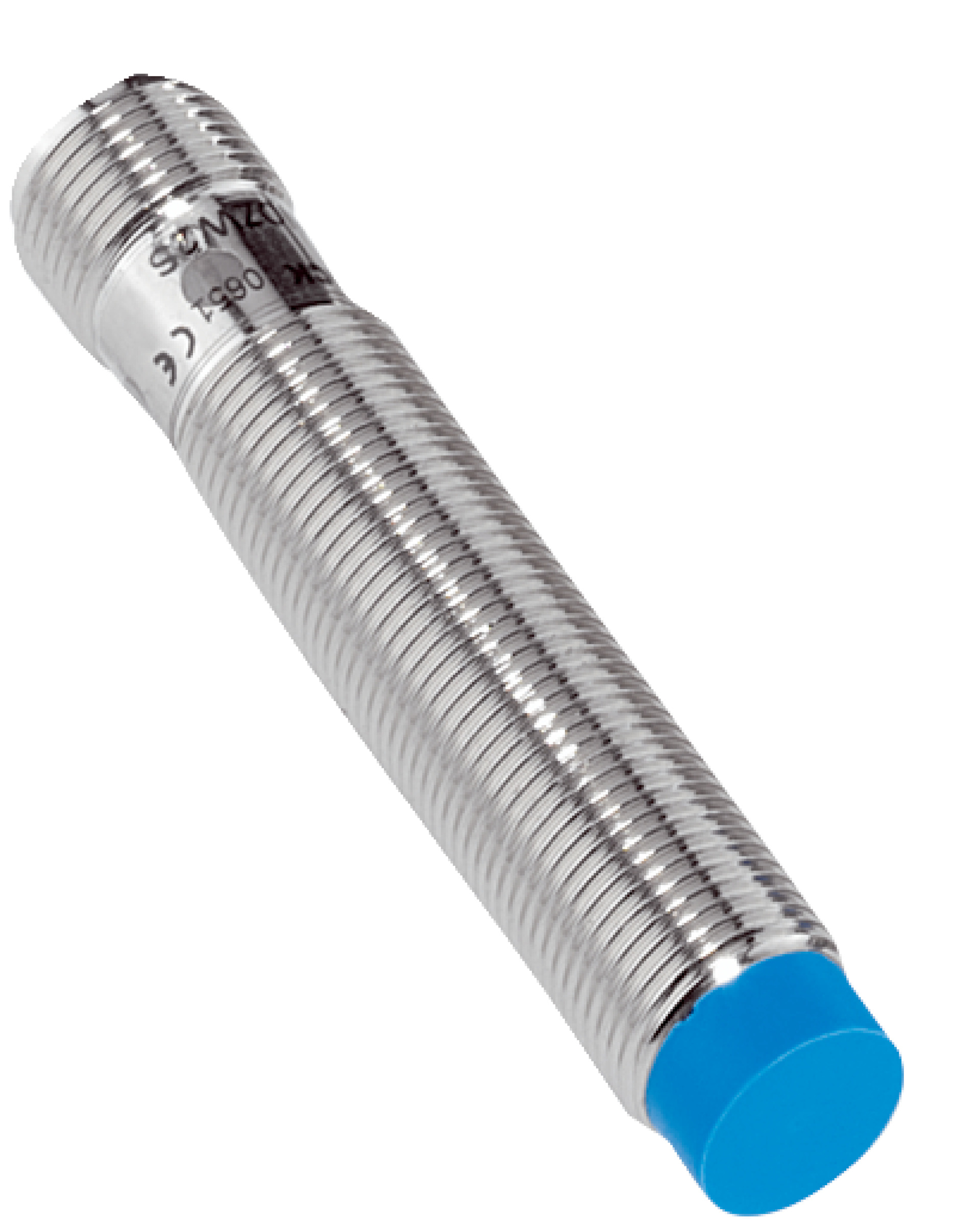

Inductive Proximity Sensor M12 | IP67 Rated | NPN Normally Open Output | 8mm Sensing Range | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and IP67 rated enclosure for dust and water protection. With a robust brass housing and NPN normally open output, this sensor is perfect for position sensing in manufacturing lines and non-contact switching in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | IP67 Rated | NPN Normally Open Output | 8mm Sensing Range | by SICK
Brand: SICK
SKU: 1040788
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Sensor, SICK Proximity Switch, M12 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Tightening torque max: ≤ 12 Nm
- EMC: According to EN 60947-5-2
- Operating temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M12 x 1 with 65 mm housing length
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- Switching frequency up to 2,000 Hz
- NPN normally open (NO) output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and mounting torque compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in conveyor systems
- Non-contact switching in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable IP67 housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-08NNSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
