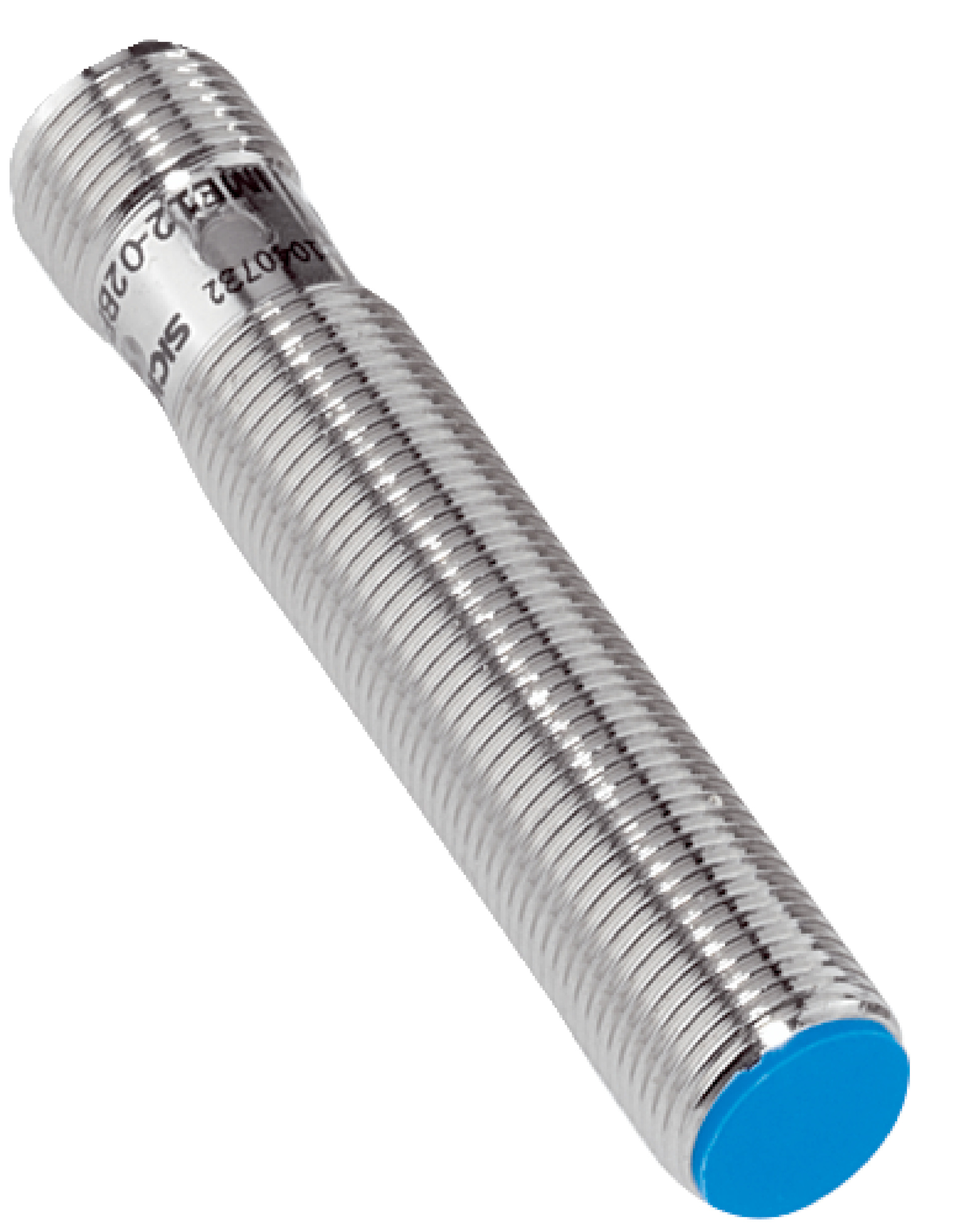

Inductive Proximity Sensor M12 | IP67 Rated | PNP Output | 2000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring an IP67 enclosure for dust and water protection. With a PNP switching output and a high switching frequency of up to 2000 Hz, this sensor is perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring optimal performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP complementary
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 48 mm
- Tightening torque max: ≤ 12 Nm
- Switching frequency: 2,000 Hz
- MTTFD: 1,893 years
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M12 x 1 with 4 mm sensing range
- Flush installation type
- Switching frequency up to 2,000 Hz
- PNP switching output with complementary function
- Connection via male M12, 4-pin connector
- High enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

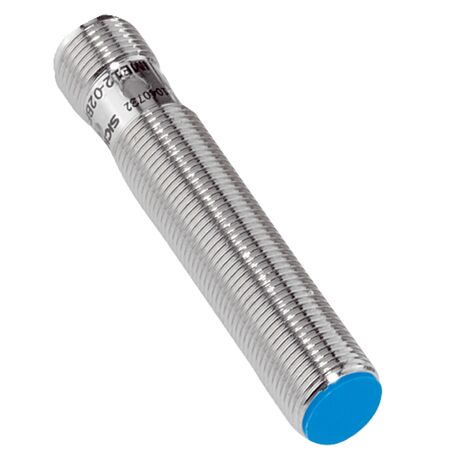

The SICK IME12-04BPPZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and control applications requiring reliable metal object detection.
