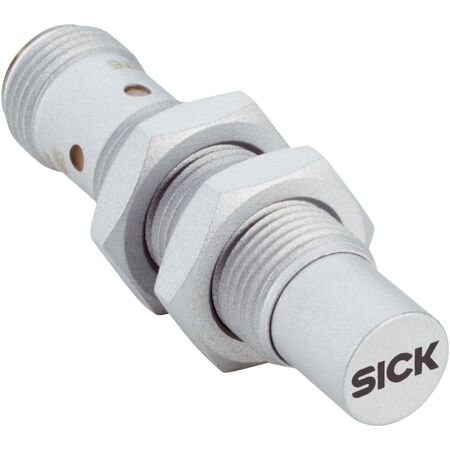

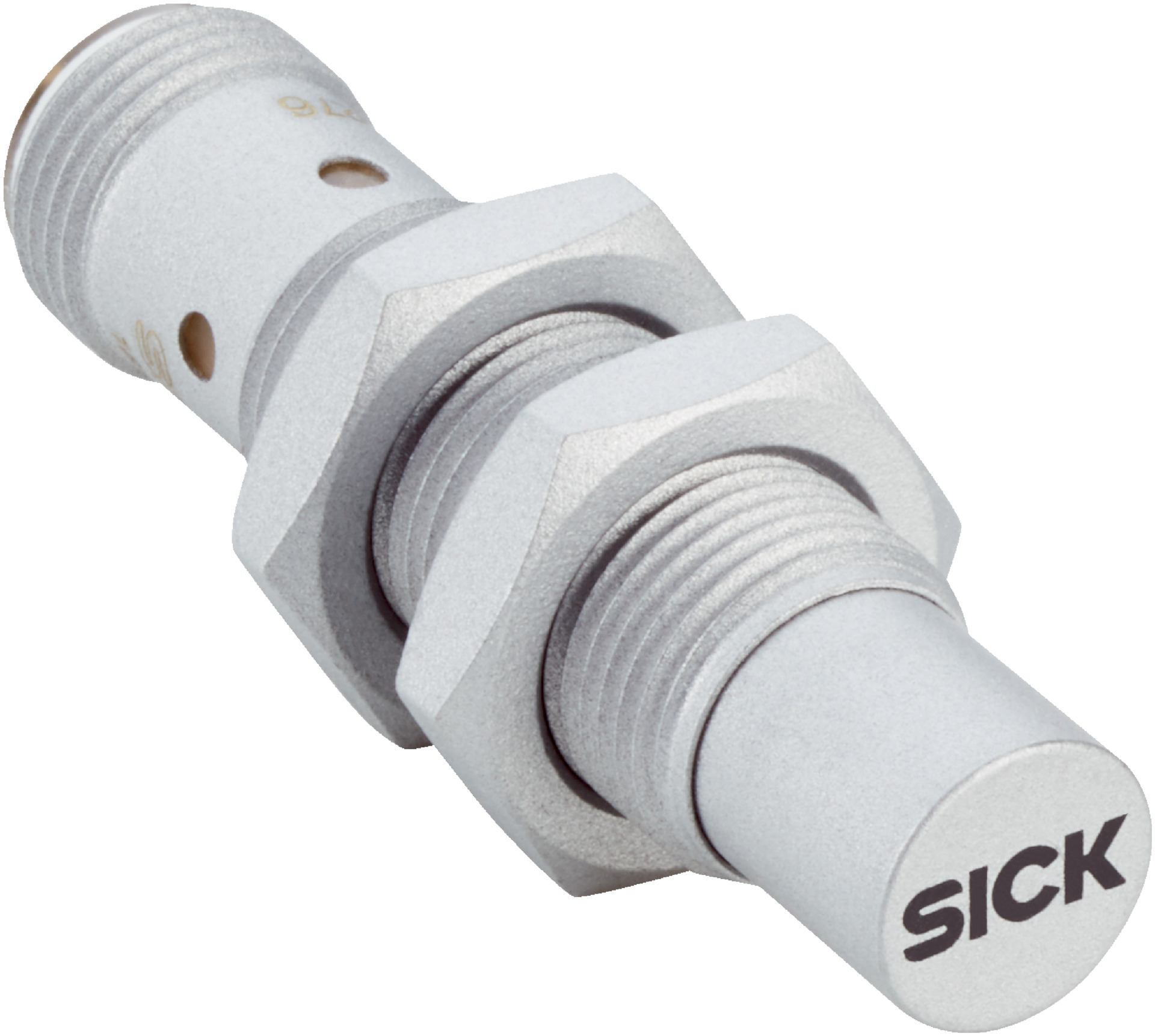

Inductive Proximity Sensor M12 | IP68 Rated | 10mm Sensing Range | 2000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a sensing range of 10 mm and an IP68 enclosure rating for harsh environments. With a high switching frequency of 2,000 Hz and a durable PTFE coated brass housing, this sensor is perfect for welding applications and non-flush mounting in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 1.8 V
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ ±10% to ±15%
- Continuous current: ≤ 200 mA
- No load current: ≤ 15 mA
- Off-state current: ≤ 0.1 mA
- Short-circuit protection included
- Magnetic field strength tolerance: ≤ 100 mT
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Ambient operating temperature: -30°C to +85°C
- Housing material: PTFE coated brass
- Sensing face material: Plastic with PTFE coating
- Connection type: Male M12, 4-pin connector
- Switching output: PNP, Normally Open (NO)
- Switching frequency: 2,000 Hz
- Protection class: II
- MTTFD: 139 years
- Mission time: 20 years
- Dimensions (H x L x W): 52mm x 52mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Non-flush installation type with IP68 enclosure rating
- High switching frequency of 2,000 Hz with PNP NO output
- Magnetic-field-resistant with triple sensing range
- Shock and vibration resistant up to 30 g and 10-55 Hz
- Includes mounting nuts and washers with PTFE coating
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Welding range and difficult application conditions
- Non-flush mounting sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PTFE coated brass housing extends product life reducing waste
- Energy-efficient operation with low current consumption
- Supports sustainable industrial automation by improving process reliability
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IMR12-10NPSTC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
