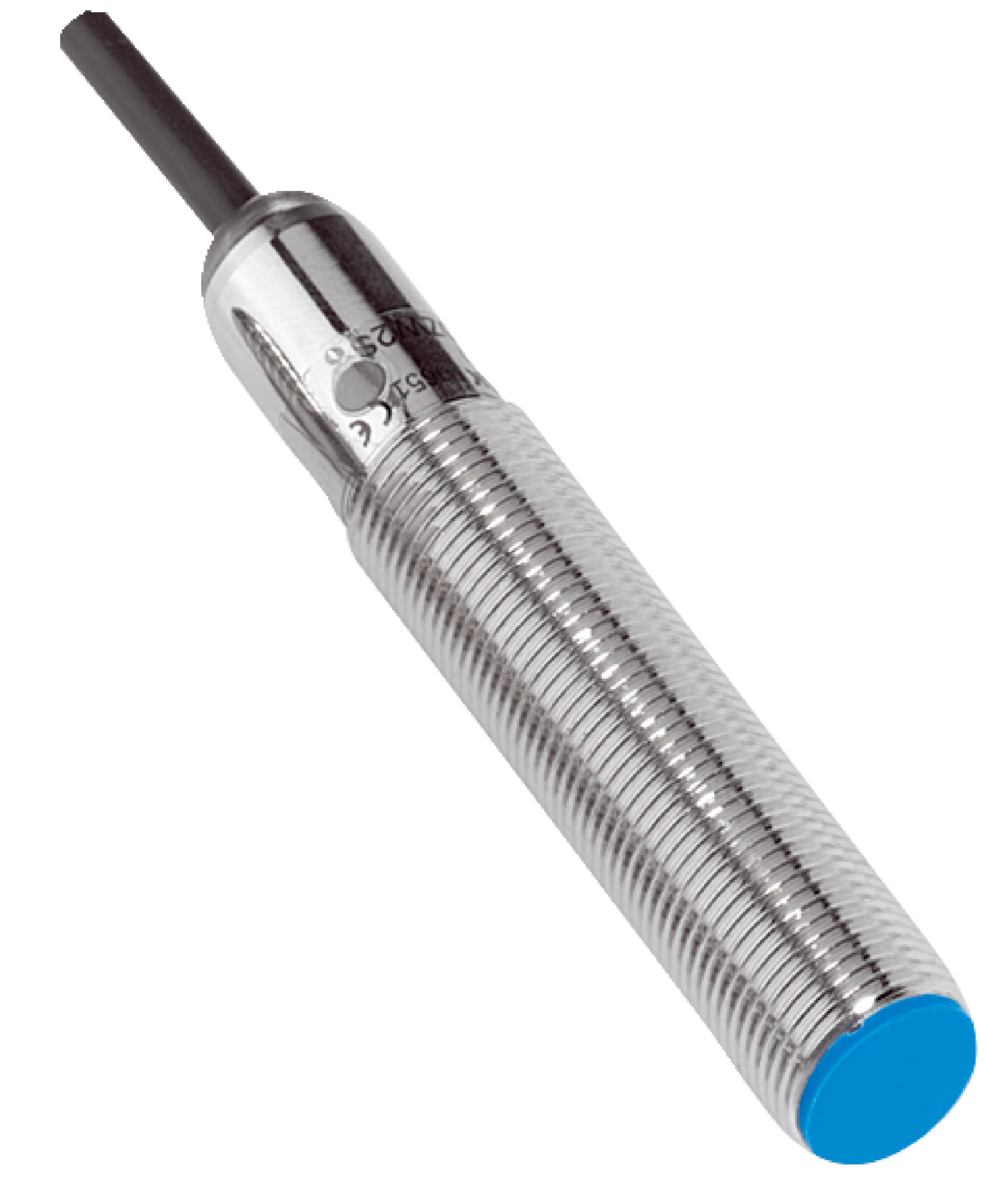

Inductive Proximity Sensor M12 | NPN Output | IP67 Rated | 6mm Sensing Range | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a 6mm sensing range and NPN output. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for machine safety and control systems in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 63mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- Quasi-flush installation type
- Switching frequency of 800 Hz
- NPN switching output with NC output function
- Cable connection type, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Mounting nut included, brass, nickel-plated
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China-RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

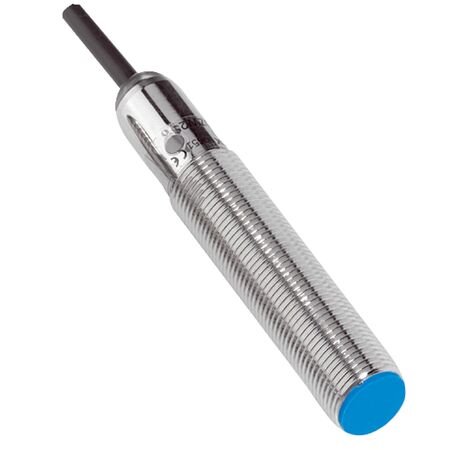

The SICK IME12-06BNOZW2S inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
