Inductive Proximity Sensor M12 | NPN Normally Open Output | IP67 Rated | Flush Mount Design | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a robust IP67 rated enclosure for dust and water protection. With a switching frequency of up to 2,000 Hz and a sensing range of 2 mm, this sensor is perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring safety and control in factory environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M12, M12 Proximity Sensor, NPN Proximity Sensor, Flush Mount Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN, normally open (NO)
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Thread length: 48 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 2 mm sensing range
- Flush installation type
- Switching frequency up to 2,000 Hz
- NPN normally open (NO) switching output
- DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Includes mounting nuts, brass, nickel-plated (2x)
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor installation and wiring standards to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

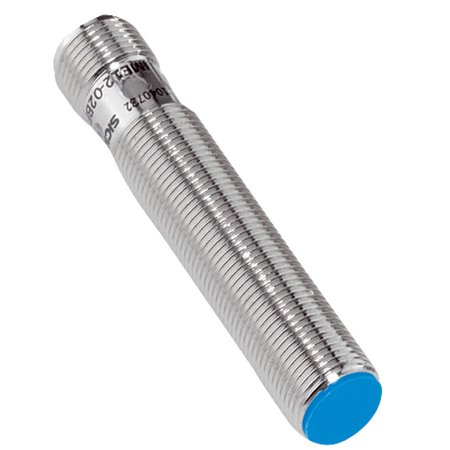

The SICK IME12-02BNSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
