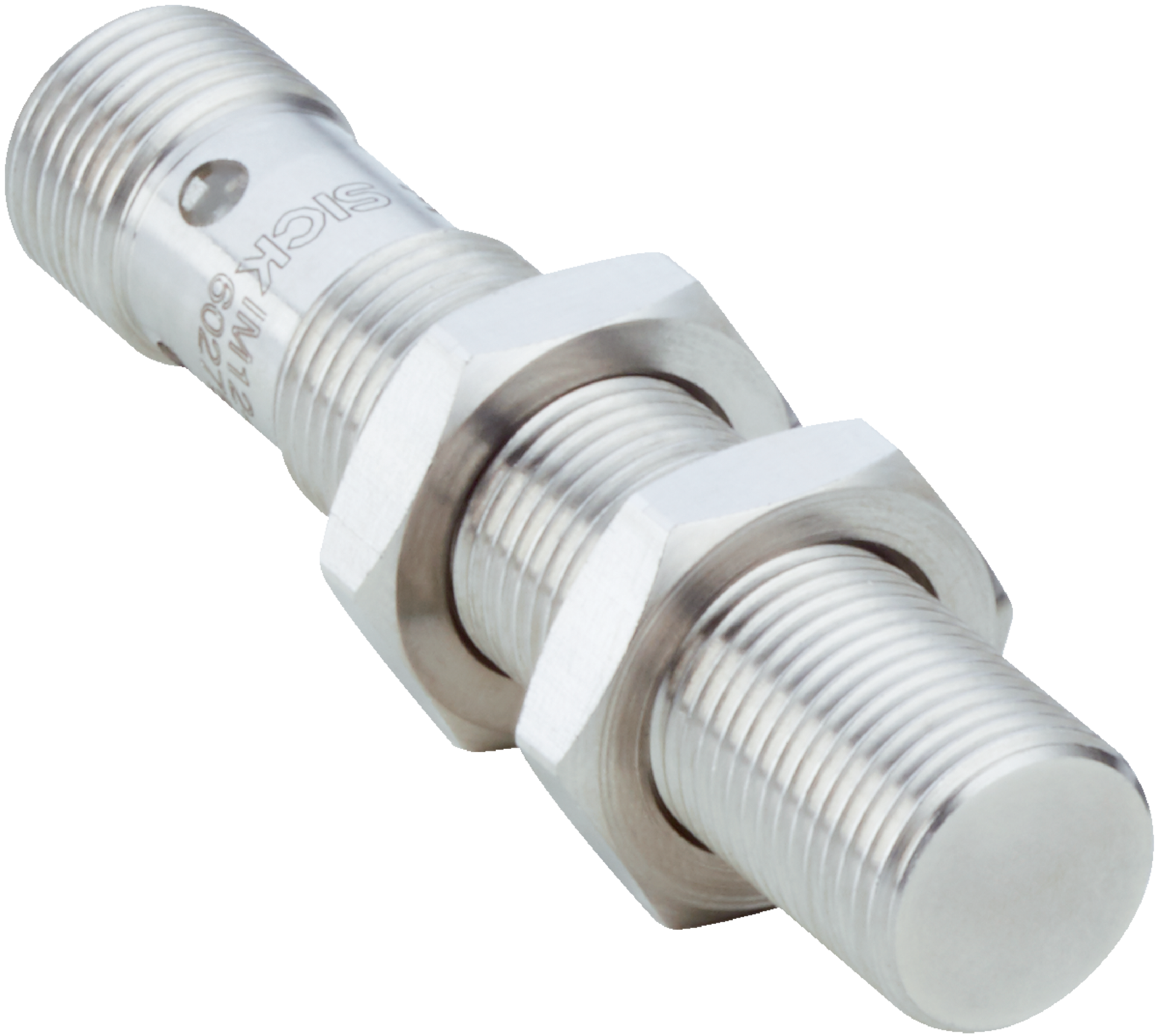

Inductive Proximity Sensor M12 | NPN Output | IP68 & IP69K Rated | Stainless Steel | by SICK
Inductive Proximity Sensor M12 with NPN output and IP68/IP69K protection is perfect for industrial automation and hygienic applications. Built with a durable stainless steel housing, it offers a sensing range of 6 mm and a switching frequency of 600 Hz, ensuring reliable performance in challenging environments. Ideal for robust sensing needs, this sensor is designed for easy installation and long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M12, Stainless Steel Proximity Sensor, NPN Proximity Sensor, Flush Mount Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 40 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Operating temperature range: -25°C to +85°C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- UL File No.: E191603
- Dimensions (H x L x W): 12mm x 60mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- Flush installation type
- Switching frequency of 600 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A resistant to cleaning agents
- Visual adjustment indicator for easy setup
- Includes mounting nut and washers made of V4A stainless steel
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation and machinery sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High protection rating (IP68/IP69K) ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IM12-06BNS-NC1 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
