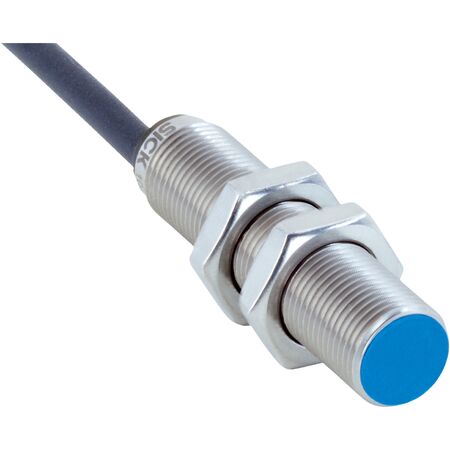

Inductive Proximity Sensor M12 | NPN NC Output | IP68 Rated | 9mm Sensing Range | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation. With a sensing range of 9 mm and an IP68 rated enclosure, it excels in harsh environments, including those with coolants and lubricants. This sensor features a robust nickel-plated brass housing and offers a switching frequency of 25 Hz, making it ideal for machine safety and process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 150 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 50 mA
- Cable material: PUR, diameter 4.5 mm
- Conductor size: 0.34 mm²
- Protection class: III
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Thread length: 54.1 mm
- Tightening torque max: ≤ 12 Nm
- EMC compliant according to EN 60947-5-2
- Output function: NPN normally closed
- Switching frequency: 25 Hz
- Enclosure rating: IP68
- Dimensions (H x L x W): 12mm x 58.1mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 9 mm with safe sensing range of 7.29 mm
- Quasi-flush installation type
- Switching frequency of 25 Hz with NPN normally closed output
- Cable connection, 3-wire, 2 m length
- IP68 rated enclosure for harsh environments
- Quadruple sensing range and resistant against coolant lubricants
- Visual adjustment indicator with yellow and green LEDs
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
- Service interface IO-Link for advanced diagnostics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Machine safety and process control
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMX12-09BNOZU2S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
