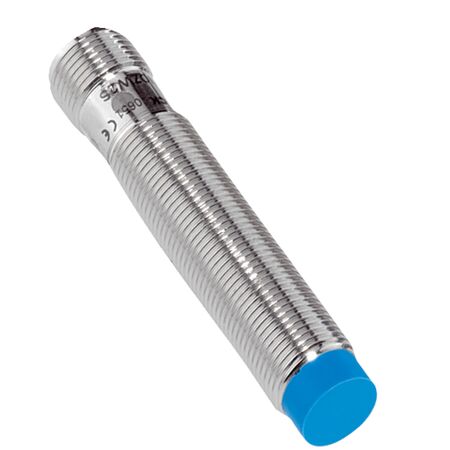

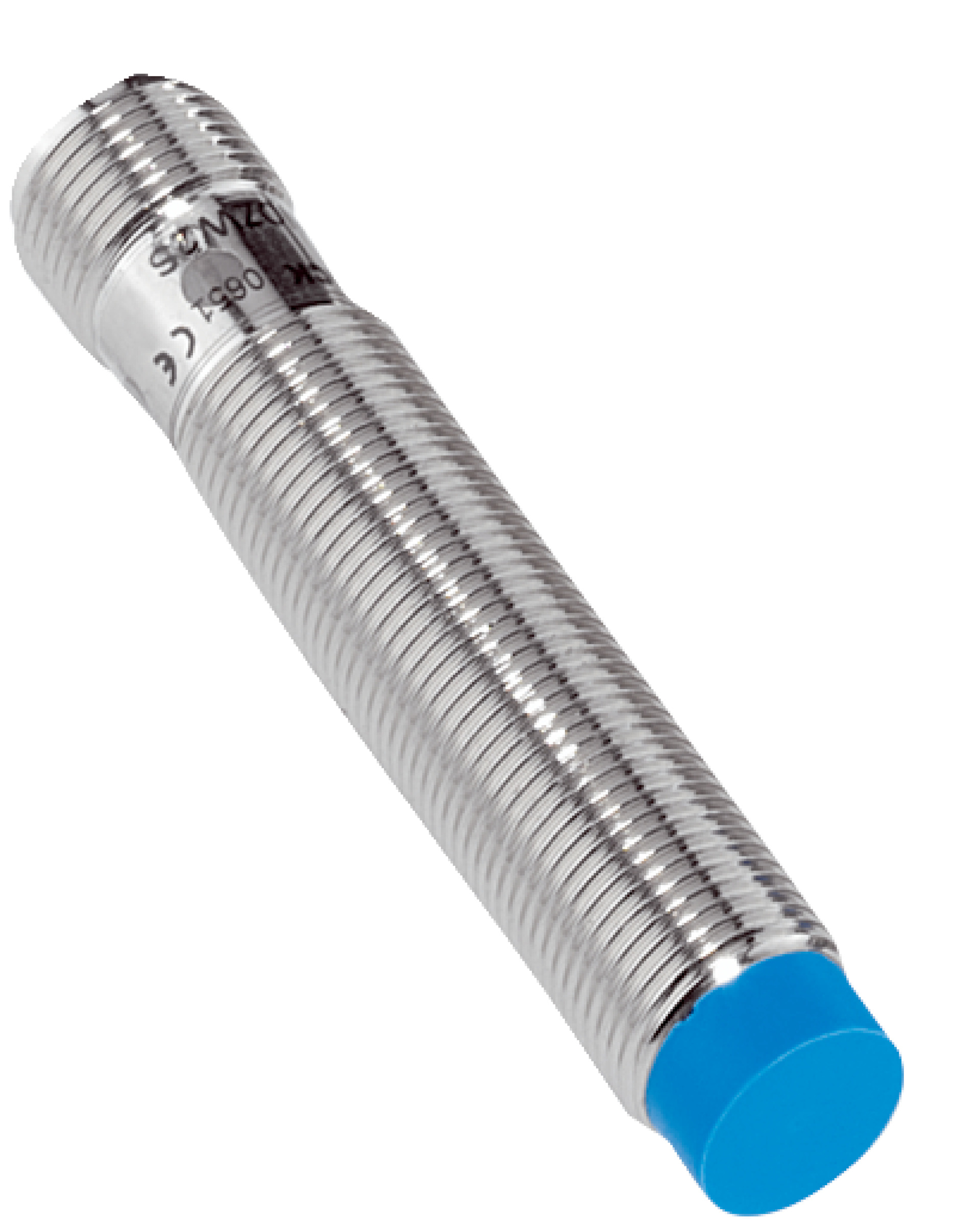

Inductive Proximity Sensor M12 | NPN Output | 10mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a 10mm sensing range and NPN normally open output. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for manufacturing process control and conveyor system monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 43 mm
- Tightening torque max: ≤ 12 Nm
- Switching output: NPN, Normally Open (NO)
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 10 mm sensing range
- Non-flush installation type
- NPN switching output with NO function
- Male connector M12, 4-pin connection
- High switching frequency of 400 Hz
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Conveyor system monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-10NNSZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
