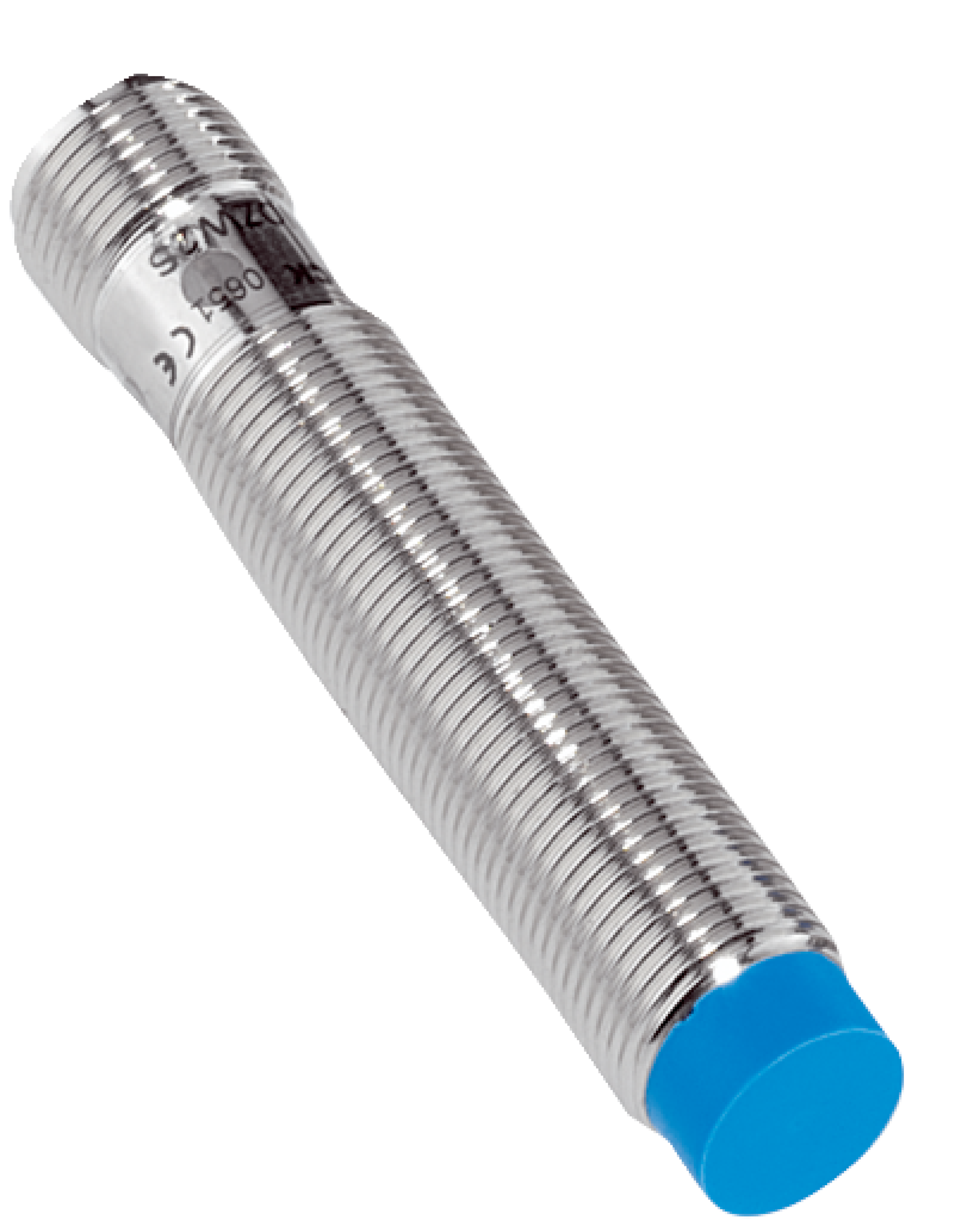

Inductive Proximity Sensor M12 | PNP Output | IP67 Rated | 10mm Sensing Range | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation. With a PNP switching output and an IP67 rated enclosure, it ensures durability in harsh environments. Ideal for manufacturing process control and conveyor systems, this sensor features a sensing range of 10mm and a robust brass housing for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Proximity Sensor, PNP Inductive Sensor, Non-flush Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Operating temperature: -25 °C to +75 °C
- Storage temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 12 mm diameter
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Non-flush installation type
- Switching frequency of 400 Hz
- PNP switching output with normally open function
- Male connector M12, 4-pin connection
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Conveyor systems
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

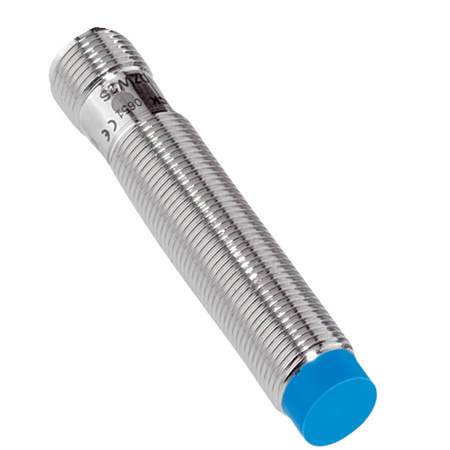

The SICK IME12-10NPSZC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
