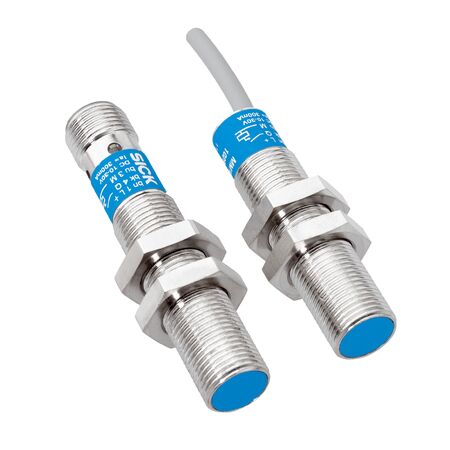

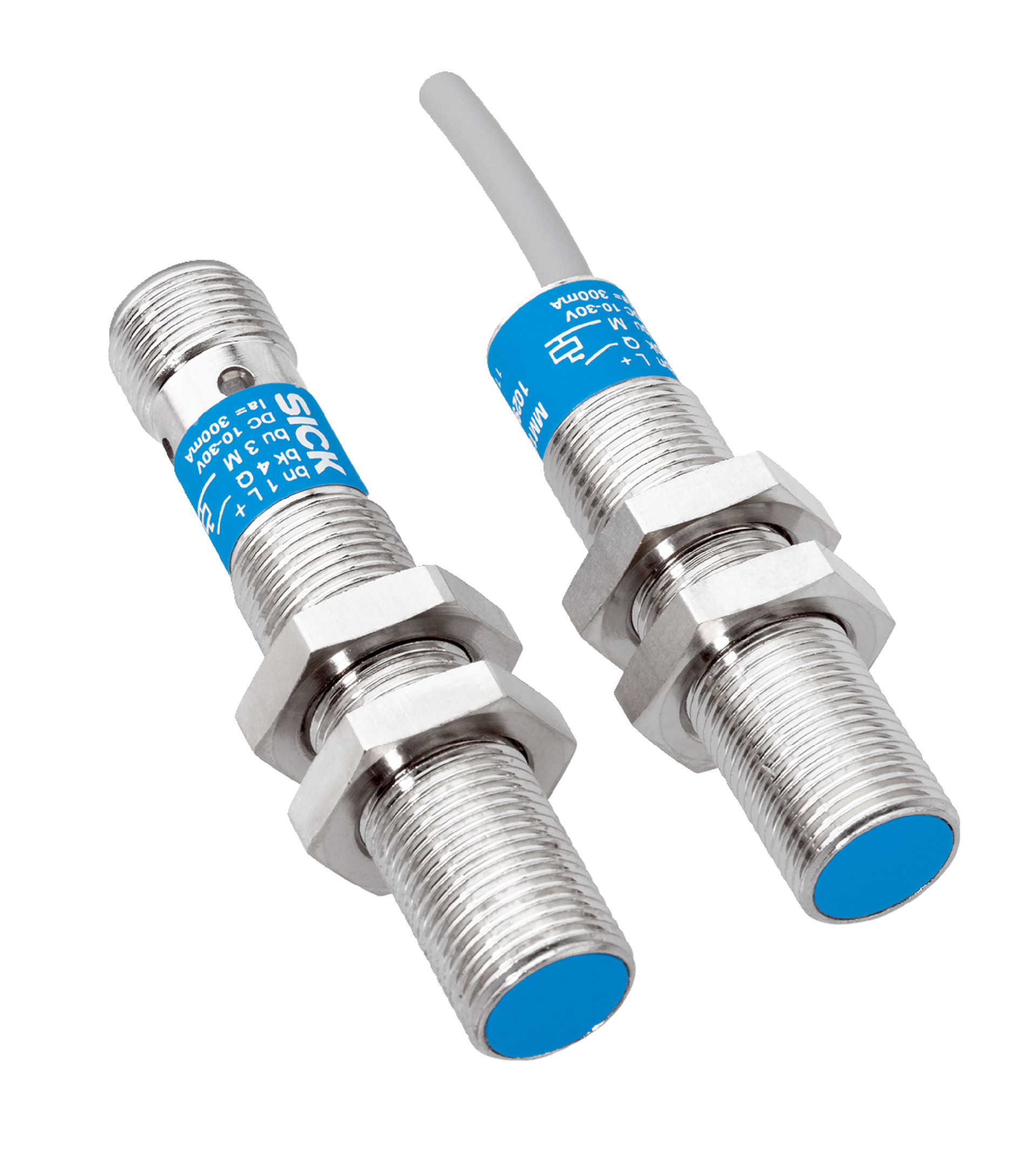

Inductive Proximity Sensor M12 | PNP Output | IP67 Rated | 5mm to 90mm Sensing Range | by SICK
The Inductive Proximity Sensor M12 is designed for precise object detection in industrial automation, featuring a sensing range from 5mm to 90mm and a high switching frequency of 1,000 Hz. With its robust IP67 rated metal housing and PNP normally open output, this sensor is perfect for manufacturing lines and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | PNP Output | IP67 Rated | 5mm to 90mm Sensing Range | by SICK
Brand: SICK
SKU: 1029951
Alternatively Known As: Inductive Proximity Sensor M12, SICK Proximity Sensor, M12 Inductive Sensor, PNP Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 10 mA
- Switching output: PNP, normally open
- Switching frequency: 1,000 Hz
- Sensing range Sn: 5 mm to 90 mm
- Safe sensing range Sa: 72.9 mm
- Magnetic sensitivity: 0.6 mT
- Voltage drop: ≤ 2.2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: ≤ 25%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR, 3-wire, 2 m length
- Enclosure rating: IP67
- Housing material: Metal, nickel-plated brass
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Reverse polarity, short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 50mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- Advanced metal housing with nickel-plated brass
- Thread size M12 x 1 with 50 mm housing length
- Sensing range from 5 mm to 90 mm with safe sensing range of 72.9 mm
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Cable connection, 3-wire, 2 meters long
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and secure mounting according to industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring reliable proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable metal housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MM12-90APS-ZU0 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and control applications requiring reliable object detection.
