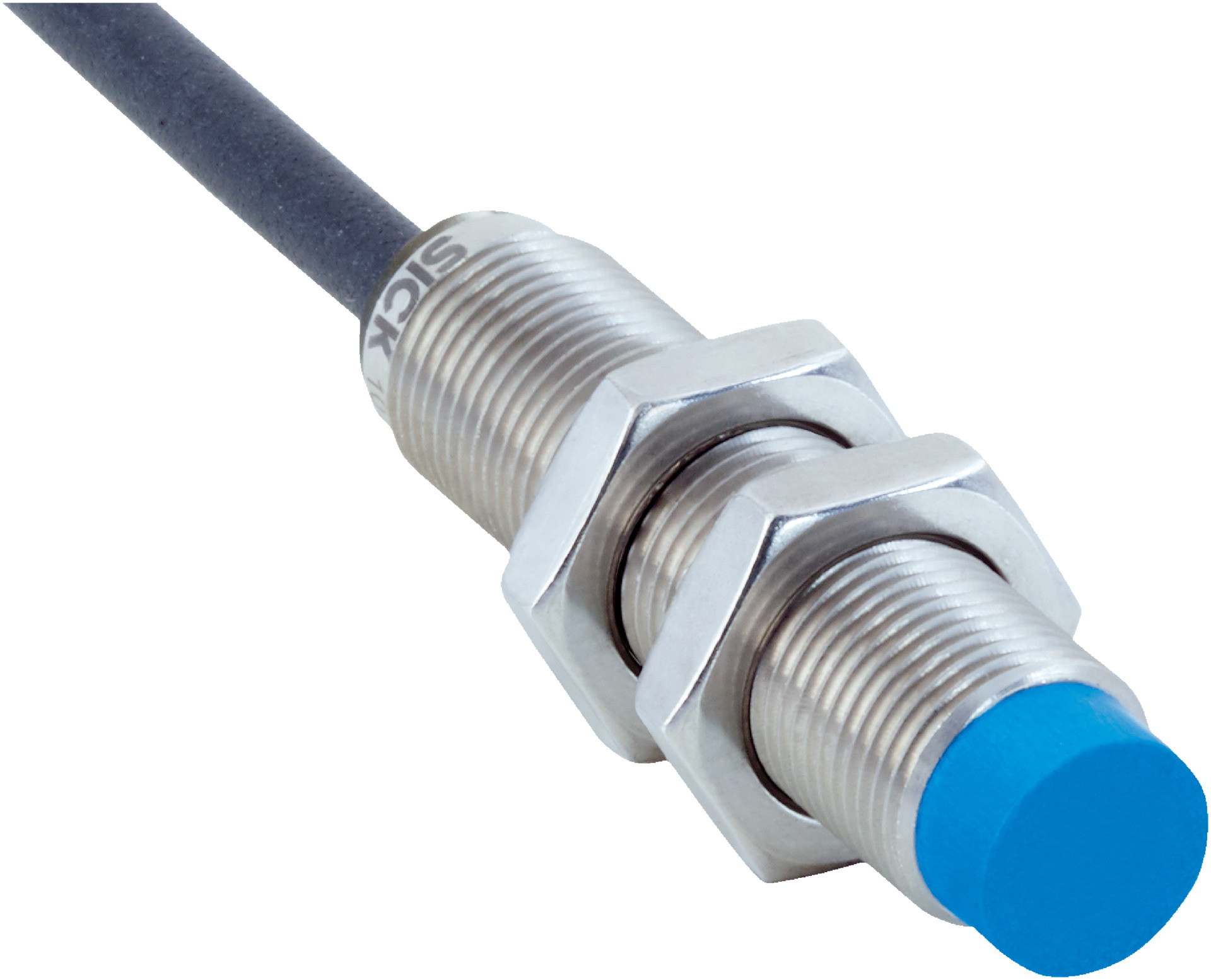

Inductive Proximity Sensor M12 | PNP Switching Output | IP67/IP68/IP69K Rated | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation and mobile machinery applications. With a PNP switching output and a robust IP67/IP68/IP69K protection rating, it withstands harsh environments, including exposure to coolants and lubricants. Ideal for demanding conditions, this sensor features a nickel-plated brass housing and a sensing range of 8 mm, ensuring durability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 3.9 mm
- Bending radius: fixed installation > 5x cable diameter, flexible use > 10x cable diameter
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Operating temperature: -40 °C to +85 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Protection class: III
- Switching output: PNP, NC function
- Enclosure rating: IP67, IP68, IP69K
- Dimensions (H x L x W): 55mm x 55mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with nickel-plated brass material
- M12 x 1 thread size with 8 mm sensing range
- Non-flush installation type
- Switching frequency up to 2,000 Hz
- PNP switching output with NC function
- Cable connection, 3-wire, 2 m length
- High protection rating: IP67, IP68, IP69K
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN standards
- LED yellow indicator for switching status
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

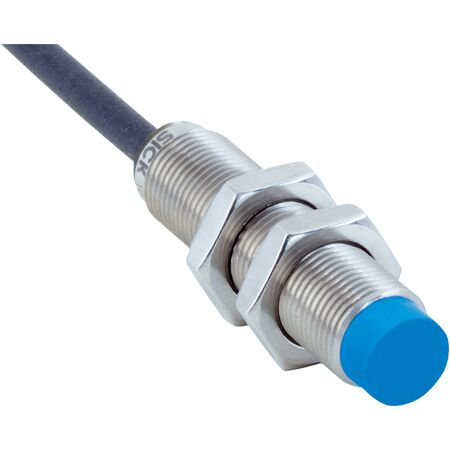

The SICK IMG12-08NPOZU2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
