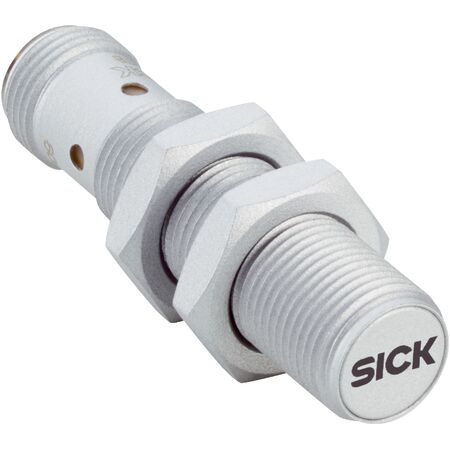

Inductive Proximity Sensor M12 | PNP Output | IP68 Enclosure | High Switching Frequency | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a PNP output and an IP68 enclosure for dust and water protection. With a high switching frequency of 2,000 Hz and a wide operating temperature range of -30 °C to +85 °C, this sensor is perfect for harsh environments and demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 1.8 V
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ ±10% to ±15%
- Continuous current: ≤ 200 mA
- No load current: ≤ 15 mA
- Off-state current: ≤ 0.1 mA
- Magnetic field strength tolerance: ≤ 100 mT
- Protection class: II
- Switching output: PNP, normally open (NO)
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP68
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -30 °C to +85 °C
- Housing material: PTFE coated brass
- Sensing face material: Plastic with PTFE coating
- Thread length: 36 mm
- Housing length: 52 mm
- Tightening torque max: 7 Nm
- Dimensions (H x L x W): 12mm x 52mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with PTFE coated brass
- M12 x 1 thread size with 4 mm sensing range
- Flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with NO function
- IP68 rated enclosure for dust and water protection
- Magnetic-field-resistant with reduction factor 1
- Includes mounting nut and washer with PTFE coating
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature from -30 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Welding range and difficult application conditions
- Magnetic-field-resistant sensing in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable PTFE coated housing extends product life reducing waste
- Energy-efficient DC 3-wire electrical wiring minimizes power consumption
- High resistance to harsh environments reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMR12-04BPSTC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
