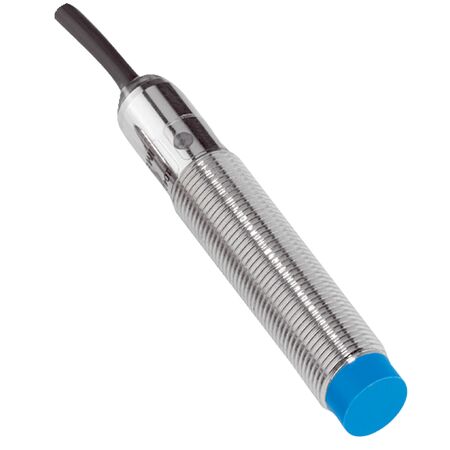

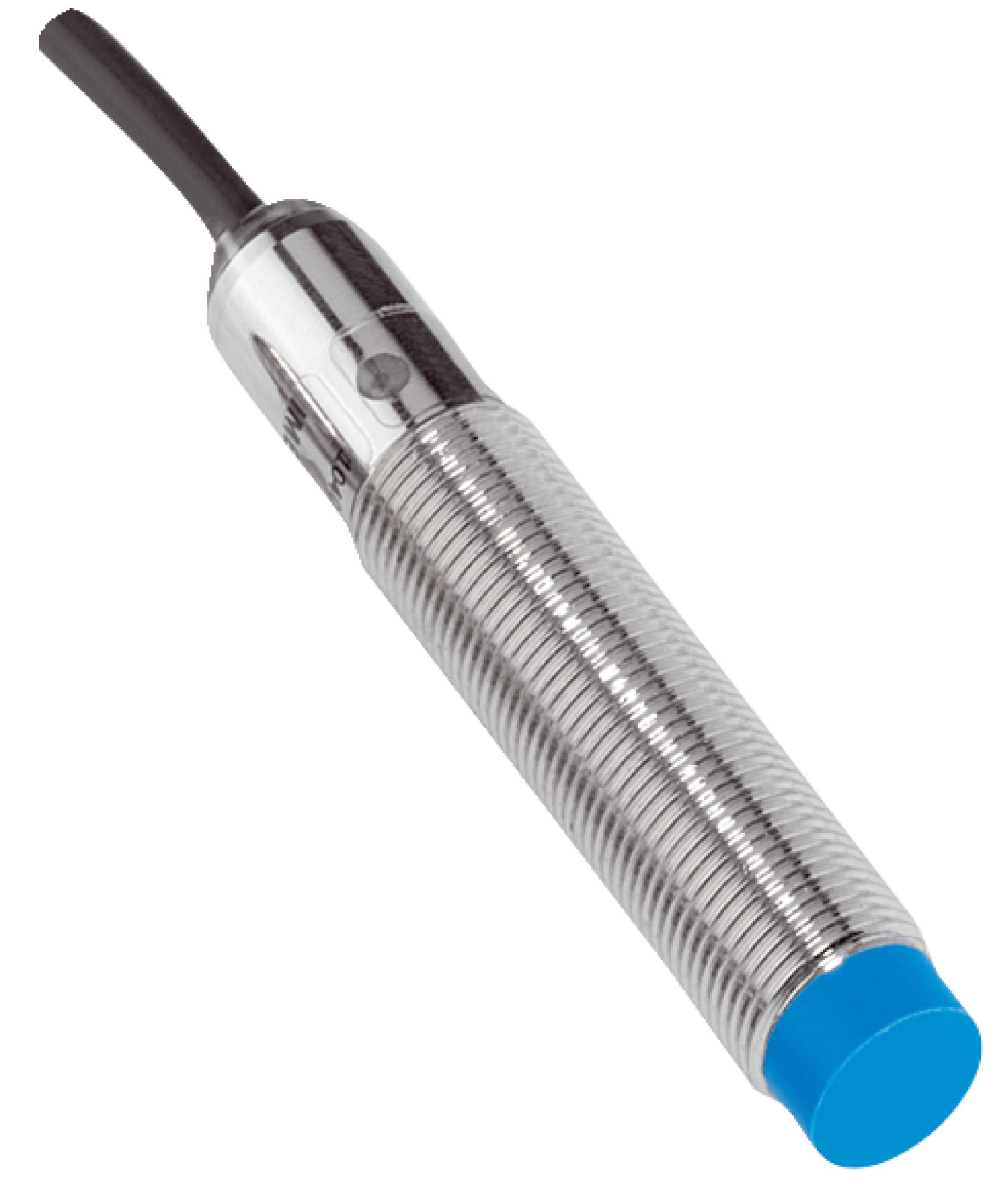

Inductive Proximity Sensor M12 | PNP Output | 4mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a 4mm sensing range and a high switching frequency of 2,000 Hz. With a durable brass housing and IP67 rating, it’s perfect for harsh environments, ensuring long-lasting performance and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M12 | PNP Output | 4mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1043926
Alternatively Known As: Inductive Proximity Sensor M12, PNP Proximity Sensor, Non-flush Proximity Switch
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 2,000 Hz
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Output function: Normally closed (NC)
- Electrical wiring: DC 3-wire
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 3.9 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Operating temperature: -25 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- EMC compliant according to EN 60947-5-2
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 12mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 4 mm sensing range
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with NC function
- Cable connection, 3-wire, 10 m length
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IME12-04NPOZU6S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
