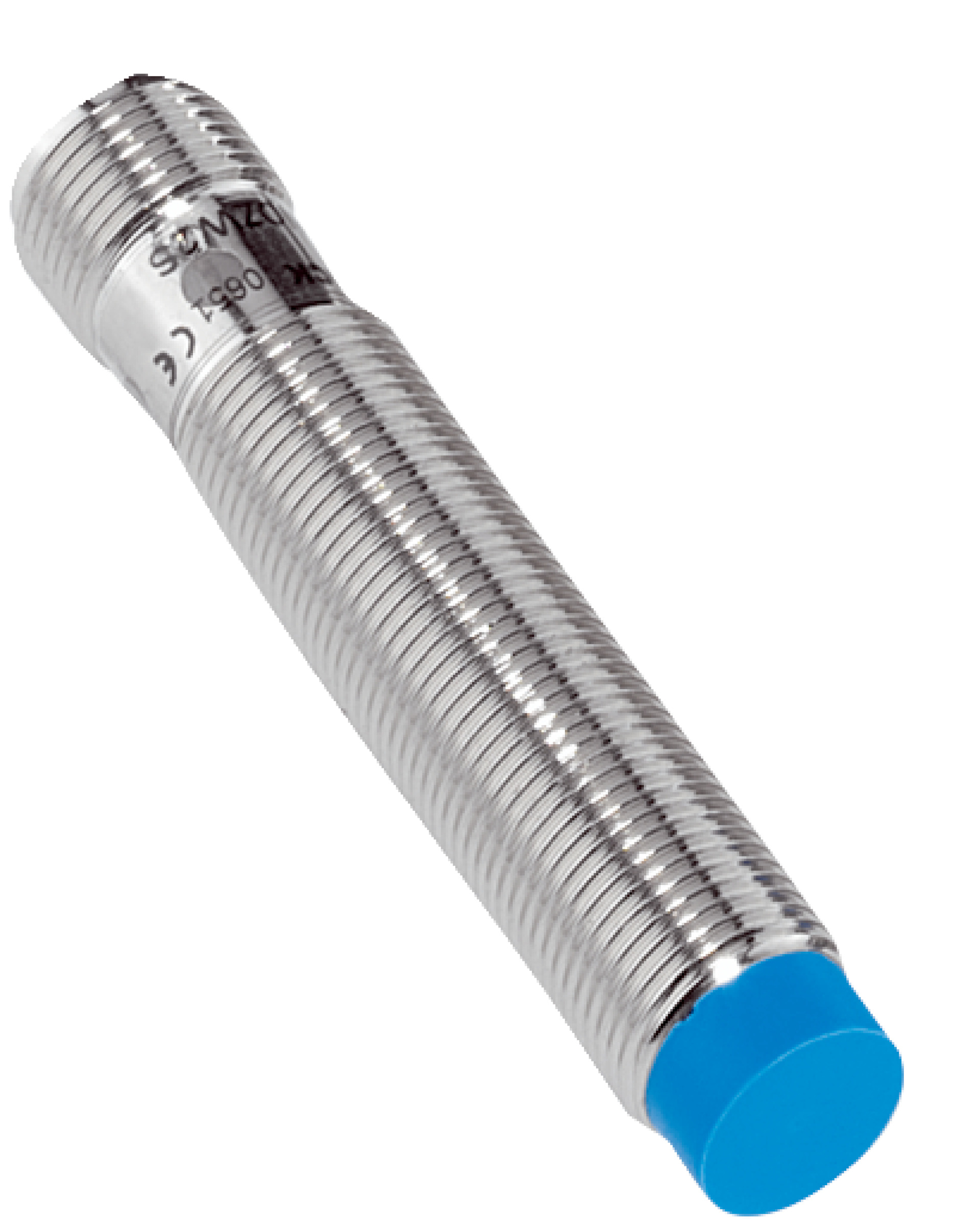

Inductive Proximity Sensor M12 | PNP Output | IP67 Rated | 8mm Sensing Range | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a PNP output and an impressive 8mm sensing range. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for harsh environments. This sensor operates within a wide temperature range of -25 °C to +75 °C, providing versatility for various applications including metal detection and position sensing in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 2,000 Hz
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Connection type: Male connector M12, 4-pin
- Output function: Complementary PNP
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 8 mm sensing range
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP complementary switching output with DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
- Wide operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

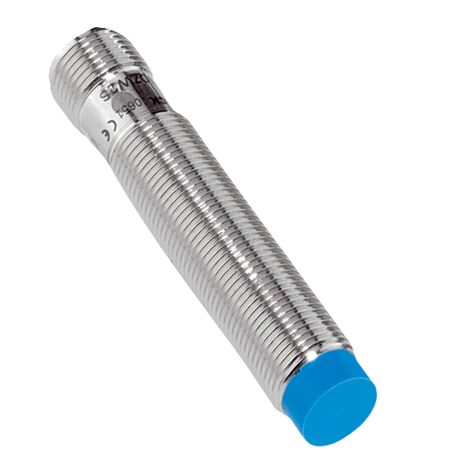

The SICK IME12-08NPPZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
