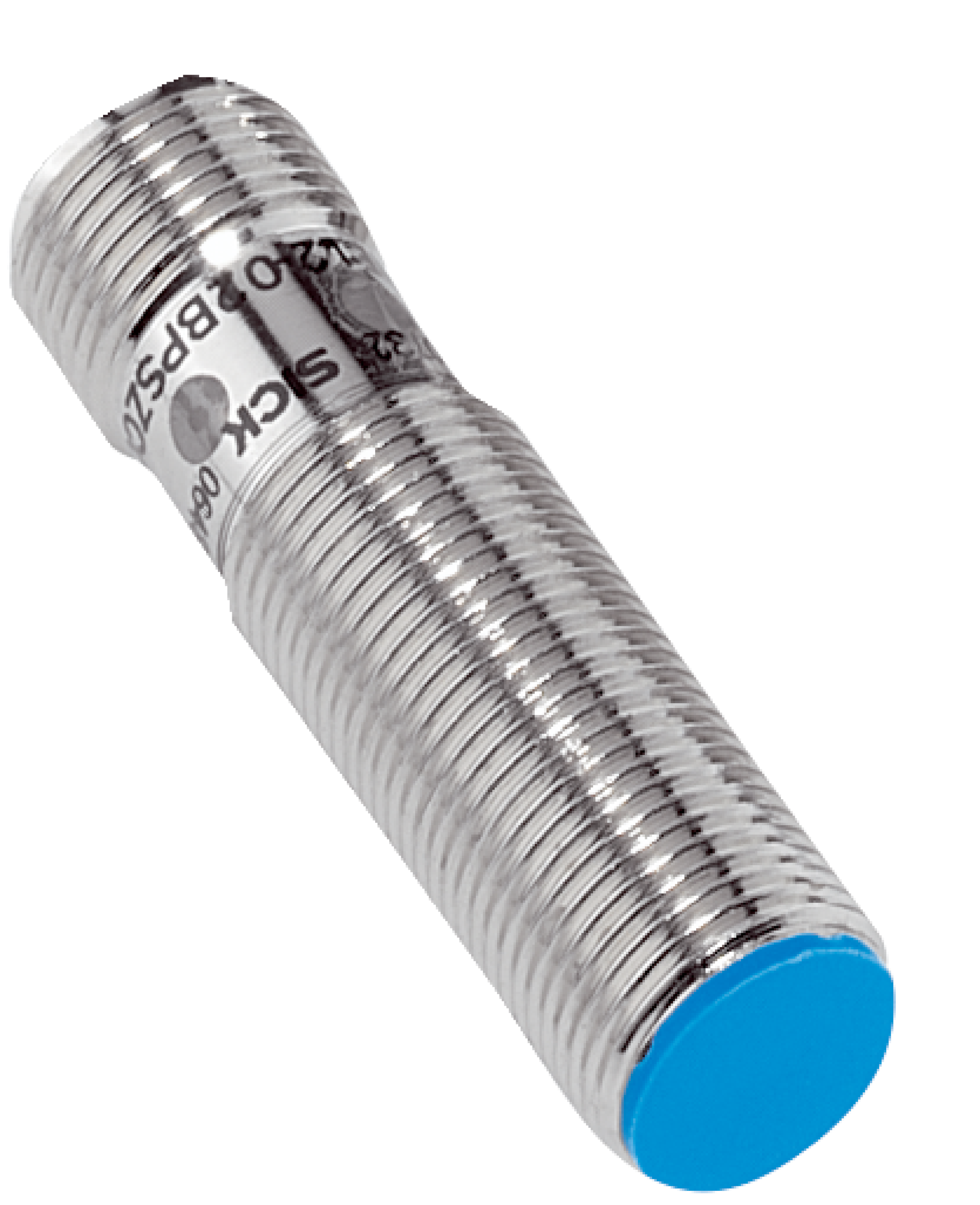

Inductive Proximity Sensor M12 | Short-Body Brass Housing | 4mm Sensing Range | 2000 Hz Switching Frequency | IP67 Rated | by SICK
The Inductive Proximity Sensor M12 is designed for precision in industrial automation, featuring a short-body brass housing and a 4mm sensing range. With a high switching frequency of 2000 Hz and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for object detection and position sensing in manufacturing lines, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M12 4mm, IME12 Proximity Sensor, SICK Proximity Sensor, M12 Inductive Sensor
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Flush
- Switching frequency: 2,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Ambient operating temperature: -25°C to +75°C
- Housing length: 46 mm
- Thread length: 29 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 46mm x 46mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Flush installation type with 4 mm sensing range
- High switching frequency of 2,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide supply voltage range from 10 V DC to 30 V DC
- Short-circuit and power-up pulse protection included
- Mounting nuts included (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush mounting sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing extends product life reducing waste
- Energy-efficient operation with low current consumption
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

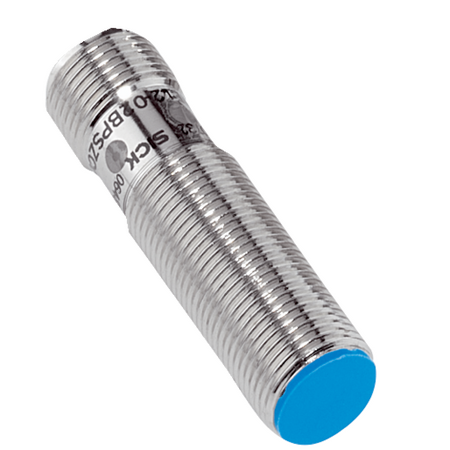

The SICK IME12-04BPSZC0K Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
