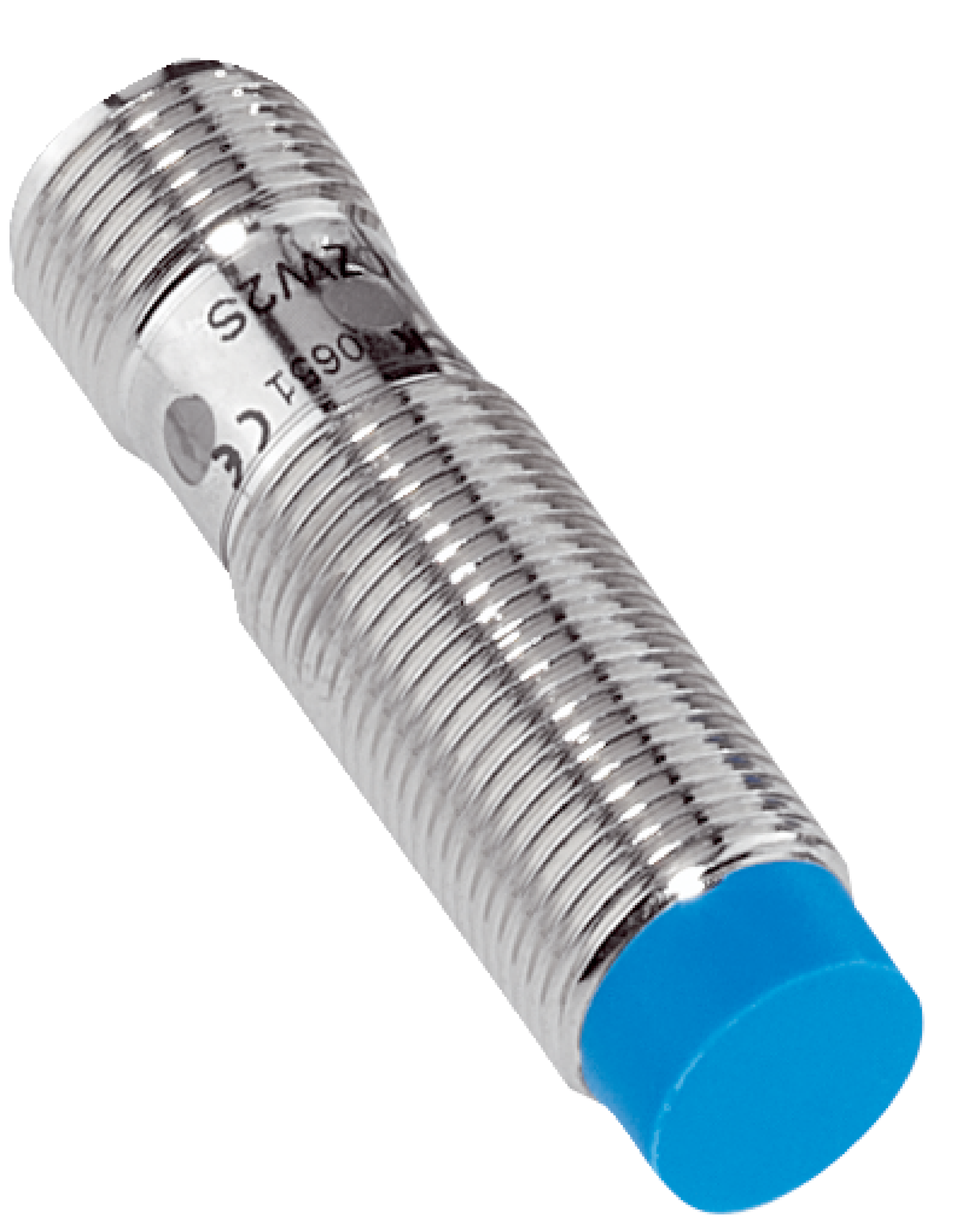

Inductive Proximity Sensor M12 | Short Body Design | IP67 Rated | High Switching Frequency | by SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation, featuring a short body design and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 2,000 Hz and an extended operating temperature range from -30°C to +75°C, this sensor is perfect for harsh environments and manufacturing lines, ensuring optimal performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M12, Short Body Proximity Sensor, PNP Proximity Switch, Non-flush Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -30°C to +75°C
- Enclosure rating: IP67
- Dimensions (H x L x W): 12mm x 46mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 2,000 Hz
- PNP normally open switching output
- IP67 rated enclosure for dust and water protection
- Extended operating temperature range from -30°C to +75°C
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with DC 3-wire electrical wiring
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

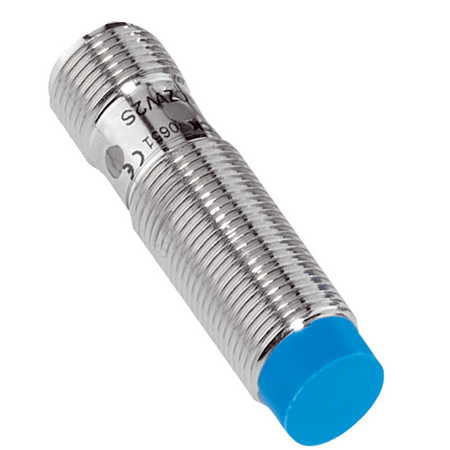

The SICK IME12-04NPSZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring reliable object detection.
