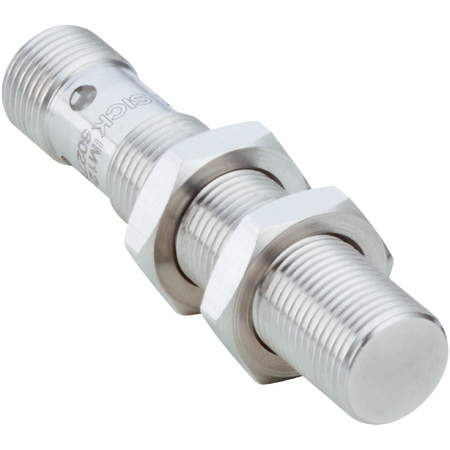

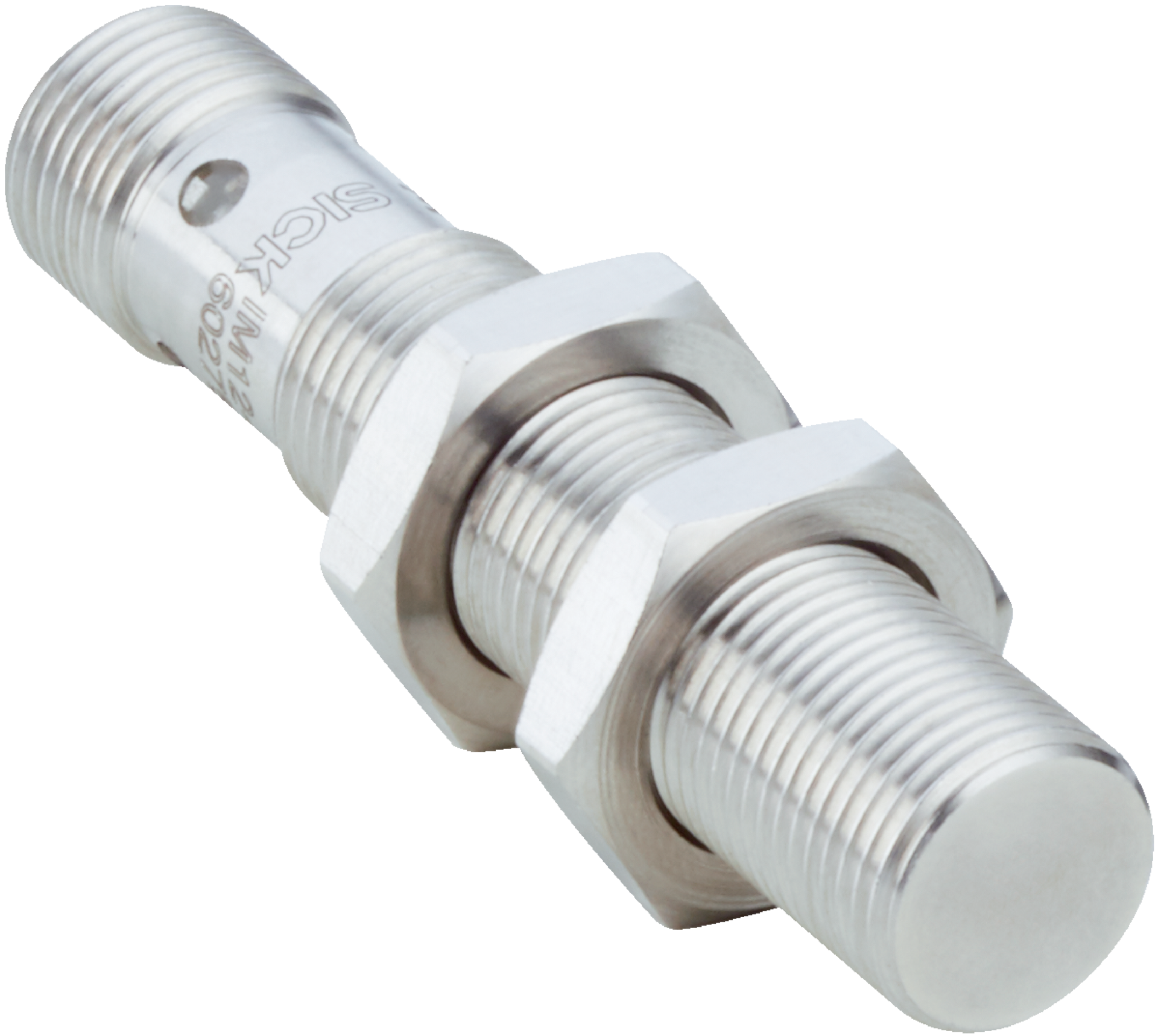

Inductive Proximity Sensor M12 | Stainless Steel V4A | IP68 & IP69K Rated | 6mm Sensing Range | by SICK
The Inductive Proximity Sensor M12 is designed for robust sensing in industrial automation and hygienic zones. With a sensing range of 6 mm and a durable stainless steel V4A housing, it offers high protection ratings of IP68 and IP69K, making it ideal for harsh environments. This sensor is perfect for applications requiring reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M12, IM12 Proximity Sensor, Stainless Steel Proximity Sensor, PNP NC Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 40 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25°C to +85°C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Thread length: 41 mm
- Tightening torque max: ≤ 20 Nm
- Dimensions (H x L x W): 12mm x 60mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- Flush installation type
- Switching frequency of 600 Hz
- PNP switching output with NC function
- DC 3-wire electrical wiring
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A resistant to cleaning agents
- Triple sensing range with visual adjustment indicator
- Includes mounting nut and washers made of V4A stainless steel
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting torque and electrical connection according to safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation and machinery sensing
- Flush installation in metal environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High protection rating (IP68/IP69K) ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IM12-06BPO-NC1 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
