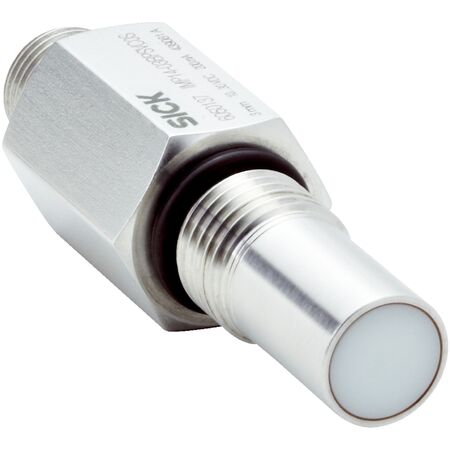

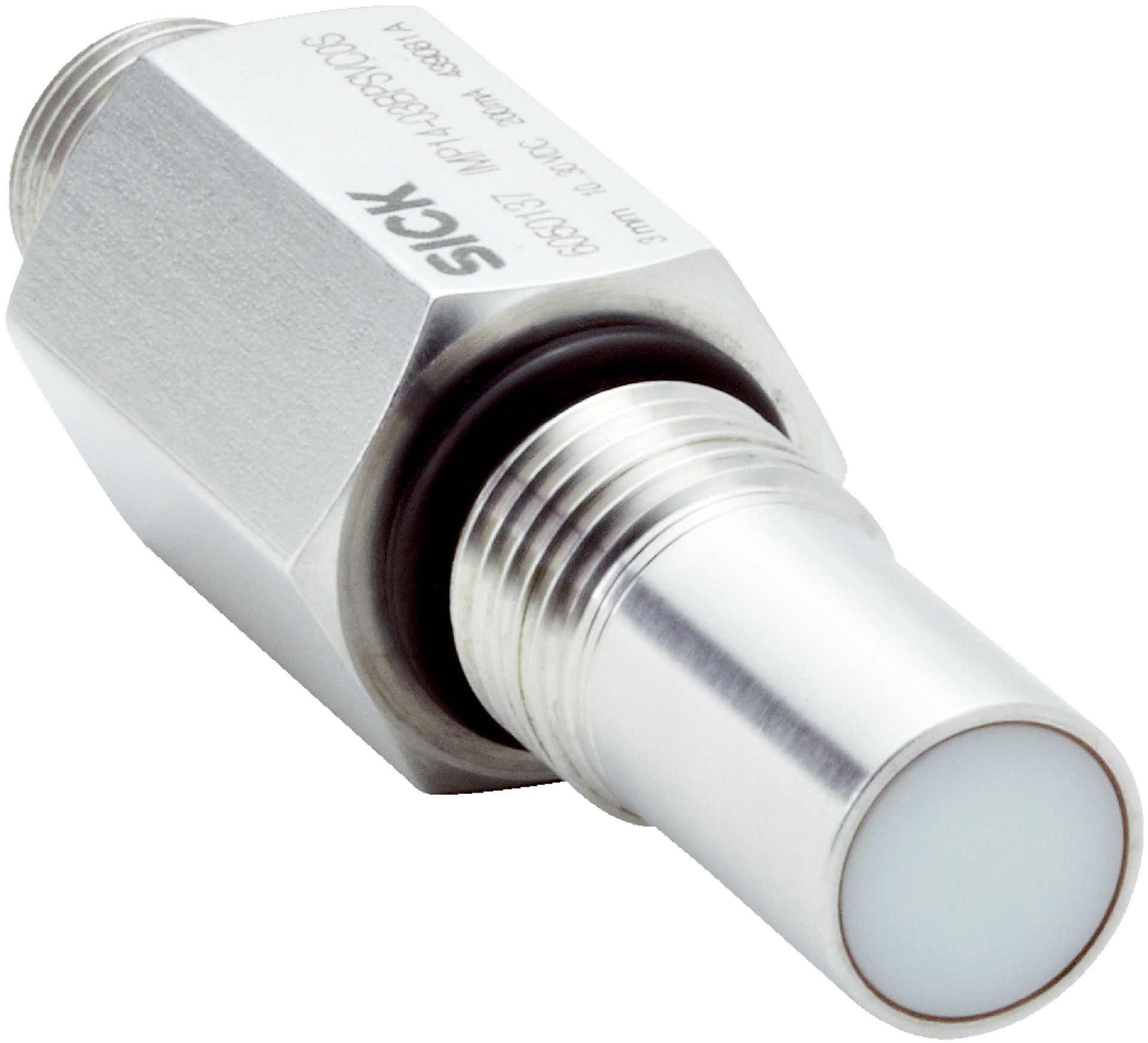

Inductive Proximity Sensor M14 | High Pressure Resistance | IP68 Rated | Flush Mount | by SICK
The Inductive Proximity Sensor M14 is engineered for high-pressure applications, boasting a pressure resistance of up to 500 bar and a sensing range of 3 mm. Ideal for hydraulic and industrial automation, this sensor features a durable stainless steel housing and an IP68 rating for dust and water protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M14 x 1.5 thread
- Diameter: 14 mm
- Pressure resistance: ≤ 500 bar
- Sensing range Sn: 3 mm
- Safe sensing range Sa: 2.4 mm
- Installation type: Flush
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 4%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25°C to +80°C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Ceramics, ZrO2
- Sealing ring material: NBR
- Tightening torque max: ≤ 70 Nm
- Dimensions (H x L x W): 65mm x 65mm x 14mm
- Weight: 0.1 kg
Key Features
- High pressure resistant up to 500 bar
- Flush installation with metric M14 x 1.5 thread size
- Sensing range of 3 mm with safe sensing range of 2.4 mm
- Switching frequency of 500 Hz with PNP normally closed output
- IP68 rated enclosure for dust and water protection
- Stainless steel V4A housing and ceramic sensing face for durability
- Short-circuit protection and shock/vibration resistance
- Wide operating temperature range from -25°C to +80°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation with flush installation needs
- Environments requiring robust sensing with IP68 protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel and ceramic materials extend product lifespan reducing waste
- High reliability reduces downtime and resource consumption in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMP14-03BPOVC0S inductive proximity sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure resistance.
