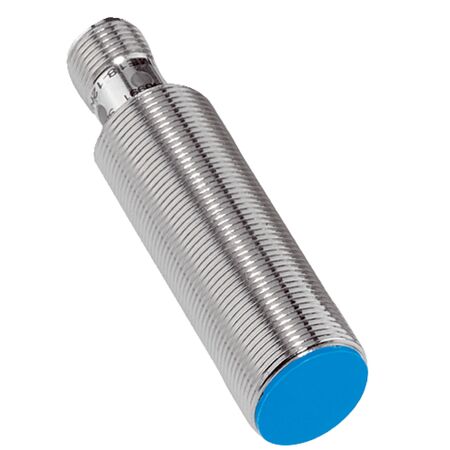

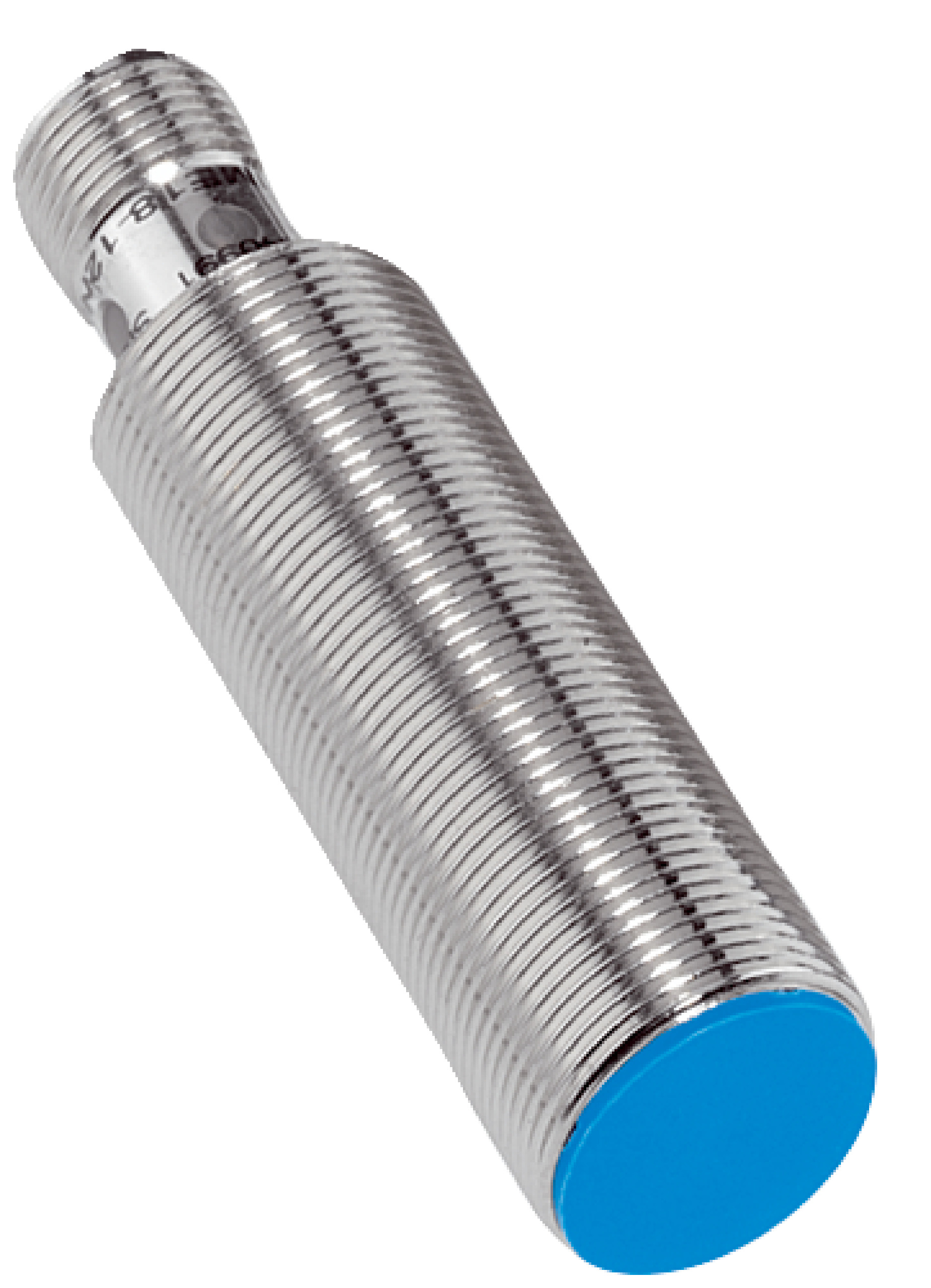

Inductive Proximity Sensor M18 | 12mm Sensing Range | IP67 Rated | NPN Normally Closed | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a 12mm sensing range and IP67 rated enclosure for dust and water protection. Ideal for machine safety and control systems, this sensor offers a switching frequency of up to 500 Hz and is built with durable brass housing for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Operating temperature range: -25 °C to +75 °C
- Storage temperature range: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 30 Nm
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, normally closed
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- Quasi-flush installation type
- Switching frequency up to 500 Hz
- NPN normally closed switching output
- DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating for long service life reducing waste
- Energy-efficient operation with low power consumption
- High resistance to shock and vibration extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME18-12BNOZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
